Numatics 554SA400K000030 554/Mark 55 Single Direct Solenoid Valve 1 IN 28IN HG TO 150PSIG

Product Description

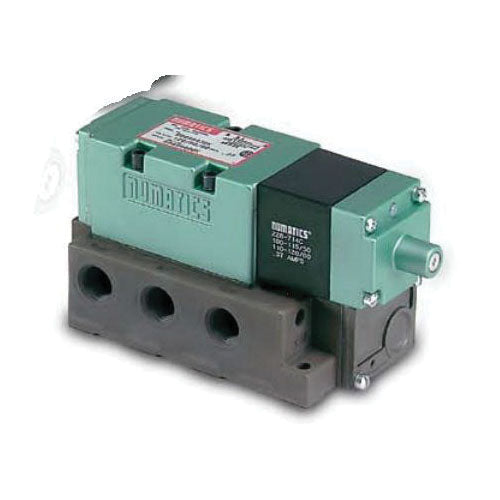

The Numatics Solenoid Valve, model 554SA400K000030, is a single direct valve designed for reliable performance in industrial applications. This solenoid valve features a flow rate of one hundred eighty-five standard cubic feet per minute (scfm) and operates within a pressure range of twenty-eight inches of mercury (in Hg) to one hundred fifty pounds per square inch gauge (psig). It is suitable for use in temperatures between negative ten and one hundred fifteen degrees Fahrenheit.

• Spring return actuator for dependable operation
• NPTF port for secure connections
• Four-way functionality with twenty-six millimeter positions

Product Highlights

Featuring a modular design, this valve is easy to configure according to specific needs, making it ideal for high cycle rate applications.

Product Information

Standard Information

• Brand: Numatics
• Manufacturer: Emerson Electric

Technical Specifications

• Actuator Type: Spring Return
• Dimensions: 4.26 inches H x 8.49 inches W x 3.38 inches D
• Flow Rate: 185 scfm
• Number of Positions: 26 mm
• Number of Ways: 4
• Port Size: 1 inch
• Port Type: NPTF
• Pressure Rating: 28 in Hg to 150 psig
• Series: 554/Mark 55
• Temperature Rating: -10 to 115 degrees F
• Type: Single Direct
