Nuheat G240120 Standard Mat 240 V 240 inches X120 inches 2400 W

Product Description

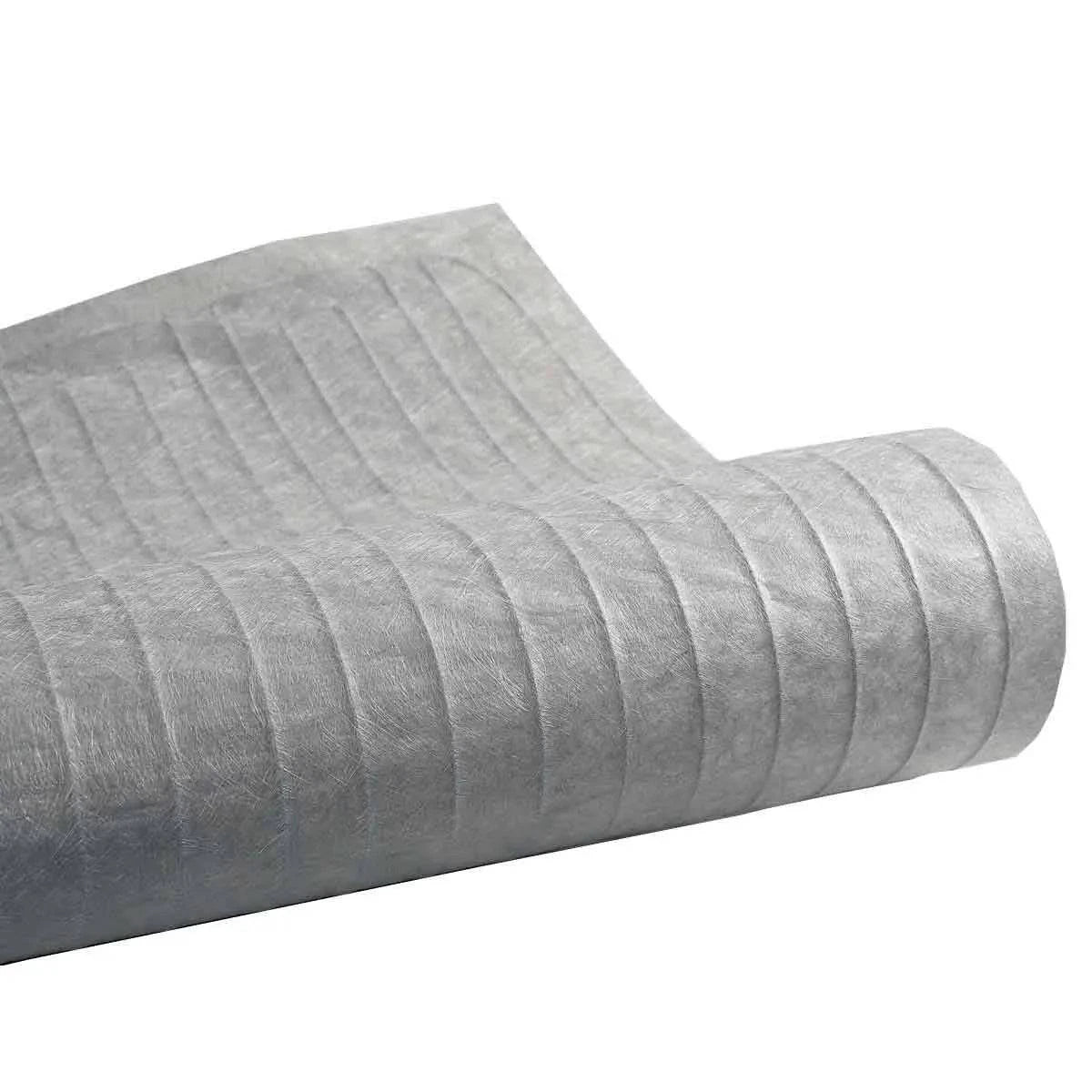

The Nuheat G240120 standard mat operates at 240 V, with dimensions of 240" x 120", and a power output of 2400 W. This pre-built floor heat mat is designed to fit the room and maintain a warm, comfortable temperature under various flooring materials. It is suitable for interior floor heating applications and should be embedded in thinset mortar.

• Pre-built floor heat mat designed to fit the room.
• Maintains a warm and comfortable temperature under flooring.
• Suitable for interior floor heating applications.

Product Highlights

The Nuheat G240120 provides efficient and consistent floor warming, creating a relaxing warmth in any room.

Product Information

Standard Information

• Brand: NUHEAT
• Manufacturer Part Number: G240120

Technical Specifications

• Manufacturer: Pentair, Inc.
• Manufacturer Brand: NuHeat
• Product Description: NUHEAT G240120 NUHEAT STANDARD MAT, 240 V, 240" X120" , 10.0 AMPS, 2400 W. MAT DIMENSIONS 20FT X 10FT
• Sub-Category: Safety Mat
• UNSPSC: 32151805
• UPC 12 Digit: 620713010129
• Unique Product Key: 6575486
• comm code enhanced: 66870
• Minimum Installation Temperature: 50° Degrees F / 10° Degrees C
• Maximum Circuit Load: 15 Amps
• Maximum Circuit Overload Protection: 20 A Breaker.
• Distance from Toilet: Install 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.
• Shower Installation: Yes, can be installed in a tiled shower.
• Trowel Size recommended: Minimum 3/8" x 1/4". Works for most ceramic tile; verify with tile/mortar manufacturer.
• UPC: 620713010129
• Safety Listing: UI (US) 1693; UL (CAN/CSA) C22.2 #217; NEC Article 424 Floor Warming Systems
• Voltage: 240 VAC
• Ohms Reading (resistance value): 23 - 26 ohms
• Spacing of Heating Wire: 2.0"
• Heated Area in Sq Ft typical: 200
• Size in Feet: 20' x 10' (20x10 feet)
• Size in Inches: 240" x 120" (240x120 inches)
• Size in Meters: 6.1m x 3.05m (6.1x3.05 meters)
• Thickness: Mat is .083, total is 1/8" with thinset underneath.
• Amp Draw: 10
• Wattage per SF: 12
• Heating Power Output per Hour (BTU): 41 BTU per Sq Ft/Hour
• Heating Power Output Total: 8200 BTU total
• Power Lead Length: 10'
• Power Lead Type: TEW Wire with Stainless Steel ground braid rated to 105 C and 300v max.
• Power Lead Wire Gauge: 18 AWG
• Wire Construction: Copper/Copper Alloy Heating wire insulated with ETFE and surrounded with protective Stainless steel ground shield.
• Length of Heated Area (ft): 10' ft. feet
• Length of Heated Area (in): 120" in. inch
• Total Watts: 2400 watts
• Indoor / Outdoor: INTERIOR floor heating application only. Embedded in thinset mortar only.
• MPN: G240120
• Floor Heat Size: 240in x 120in
• Volts: 240
• Watts: 2400
• Amps: 10
• Ohms: 24
• Sq. Ft.: 200
• Dimensions (In.): 240 x 120
• Part#: NUHG240120
