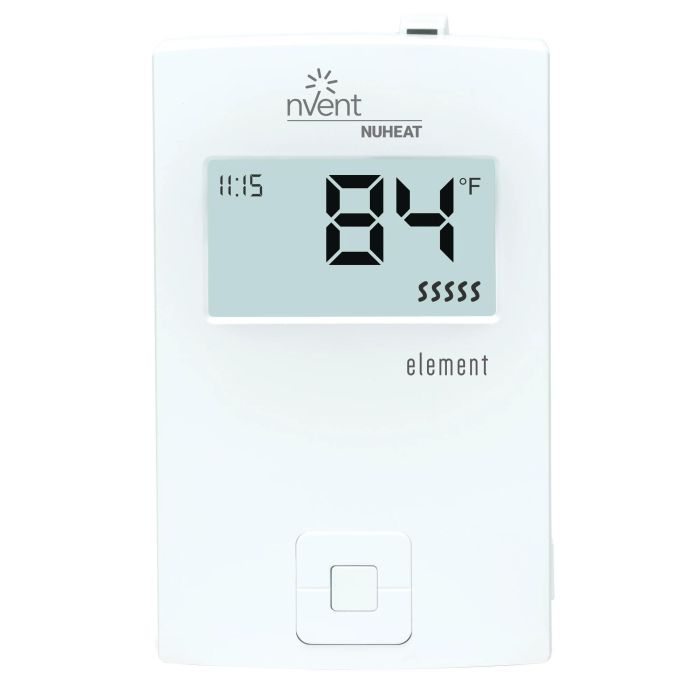

Nuheat AC0057 Element Non-programmable Dual-Voltage Thermostat

Product Description

The NUHEAT AC0057 Element is a non-programmable dual-voltage thermostat designed for simple control of electric floor heating systems. It features a backlit LCD that displays the clock and temperature. The thermostat is equipped with a built-in Class A GFCI for safety and an energy use monitor. Simple up or down buttons allow for easy temperature adjustments.

• Features a backlit LCD display showing clock and temperature.
• Dual voltage compatibility: 120/240V.
• Built-in Class A GFCI protection for enhanced safety.

Product Highlights

Easy to use, the NUHEAT Element thermostat provides basic control for electric floor heating systems with energy usage monitoring and GFCI protection.

Product Information

Standard Information

• Brand: NUHEAT
• Manufacturer Part Number: AC0057

Technical Specifications

• Full Technical Description: Line Voltage Thermostat, Non-Programmable Type; UL (Canada and Us) Approval; 120/240 Volt AC 50/60 Hertz Voltage Rating; 15 Amp Current Rating; 1800 Watt at 120 Volt, 3600 Watt at 240 Volt Power Rating; GFCI Rating 5 Milliamp
• Manufacturer: Pentair, Inc.
• Manufacturer Brand: NuHeat
• Product Description: NUHEAT AC0057 ELEMENT NON-PROGRAMMABLE DUAL-VOLTAGE THERMOSTAT
• Sub-Category: Thermostat
• UNSPSC: 41112209
• UPC 12 Digit: 620713001738
• Unique Product Key: 6575472
• Size in Inches: 5" H x 3" W
• Floor Sensor Length Ft: 15'
• GFCI / GFEP Protection: 5 mA Class A Built In
• Manual Override: Yes, temperature can be adjusted manually
• Display Height: 1-1/4"
• Display Width: 2"
• What's In The Box: Non-programmable thermostat, sensor wire
• Senses Ambient Air Temperature: yes
• Senses Ambient Air w/ Floor Temp option: yes
• Programming Method: None, On/Off - Temp Set Only
• Thermostat Type: Floor Warming Line Voltage Thermostat
• Controller Type: Push Button
• Additional Features: Temperature Display
• Specific Uses For Product: Non- Programmable Thermostat
• Temperature Control Type: Manual
• Power Source: Corded Electric
• Voltage: 120/240 Volt
• Display Type: Digital
• Control Type: Button Control
• Control Method: Remote
• Mounting Type: Wall Mount
• Backlight: Yes
• Specification Met: UL
• Amperage: 15 Amp
• Applications: For Tile, Stone and Laminate/Engineered Wood Floors
• Contact Type: Electronic
• Type: Floor Heating Electronic Thermostats
• Brand: nVent Nuheat
• Sub Brand: Nu-heat
• Product UPC: 62071300173
• Used With: Any Electric Floor Heating System
• Depth: 2.05 Inch
• Height: 4.72 Inch
• Width: 2.99 in
• Load: 15 Amps Max. (resistive load)
• Power: 1800W @ 120V 3600W @ 240V
• GFCI: Class A (5mA TRIP LEVEL)
• Approvals: CSA/C, US
• Display Range: 32F - 140 F (0C - 60C)
• Setting Range: 40F - 82F for engineered wood or laminate surface or up to 104F for stone or tile surface (5C - 28C or 40)**
• Storage: -4F - 120F (-20C - 50C)
• Ambient air temperature setting range: up to 86F (30C)
• Temperature Range: 40 to 104 Degrees F
• Thermostat Mount Orientation: Vertical Mounting
• Thermostat Programmability: Non Programmable Thermostats
• Manufacturer Part No: AC0057
