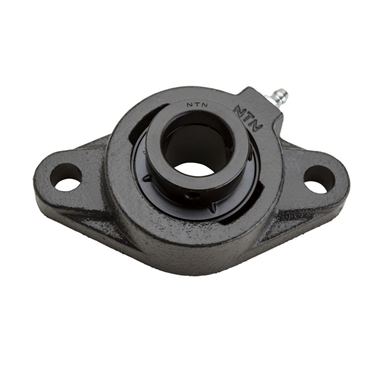

NTN UELFLU-2.3/16 Flange-Mount Ball Bearing Unit - 2-3/16 in Bore - Replacement MPN: A-UEL211-203D1

Product Description

The NTN UELFLU-2.3/16 is a flange-mount ball bearing unit designed to provide reliable support in various applications. It features a bore diameter of two and three-sixteenth inches and a durable cast iron housing. This intermediate-duty bearing is suitable for situations requiring efficient performance and sturdy construction.

• Flange mount design simplifies installation and maintenance
• Eccentric collar locking for secure positioning
• Cast iron housing ensures durability in demanding environments

Product Highlights

This bearing unit is ideal for use in machinery and equipment that require reliable support and stability. The NTN UELFLU-2.3/16 is engineered for longevity.

Product Information

Standard Information

• Brand: NTN
• Country Of Origin: JAPAN

Technical Specifications

• Part Number: 00564230
• Bore Diameter: 2-3/16 in
• Housing Width: 1.9375 in
• Overall Width: 2.9375 in
• Overall Length: 8.5313 in
• Type Of Bearing: Ball
• Outside Diameter: 5.2813 in
• Operating Temperature Range: -40 to 250 °F
• Radial Static Load Capacity: 29200 N
• Radial Dynamic Load Capacity: 43500 N
• Replacement Bearing: A-UEL211-203D1
