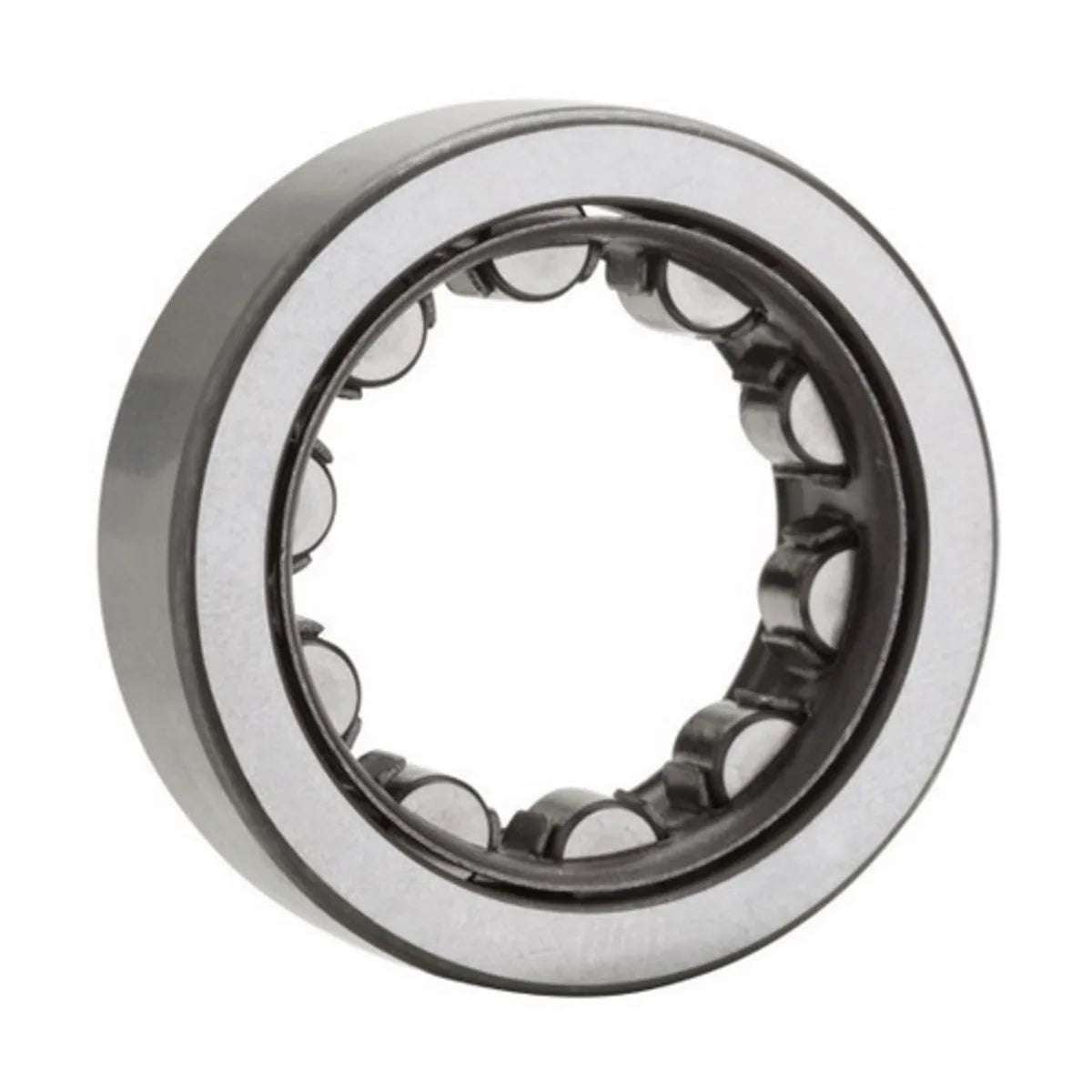

NTN NU320EG1C3 Cylindrical Roller Bearing - Straight, 100 mm ID, 215 mm OD, 47 mm Width, C3 Internal Clearance

Product Description

The NTN NU320EG1C3 is a cylindrical roller bearing designed for high performance in various applications. With a bore diameter of one hundred millimeters, an outer diameter of two hundred fifteen millimeters, and a width of forty-seven millimeters, this bearing offers reliable support and durability.

• Separable design for easy installation and maintenance.
• High strength machined brass cage for enhanced stability.
• Rated for a maximum speed of three thousand five hundred RPM.

Product Highlights

This cylindrical roller bearing features a C3 internal clearance, making it suitable for applications with thermal expansion. It is ideal for machinery requiring radial load support.

Product Information

Standard Information

• Brand: NTN
• MPN: NU320EG1C3

Technical Specifications

• Bore Diameter: 100 mm
• Outside Diameter: 215 mm
• Width: 47 mm
• Number of Rows: 1
• Material: Hardened Alloy Steel
• Cage Material: High Strength Machined Brass Rivetless With Square Holes
• Radial Internal Clearance: C3
• Maximum RPM: 3500
• Operating Temperature Range: -40 to 250 °F
• Dynamic Load Capacity: 299000 N
• Static Load Capacity: 335000 N
