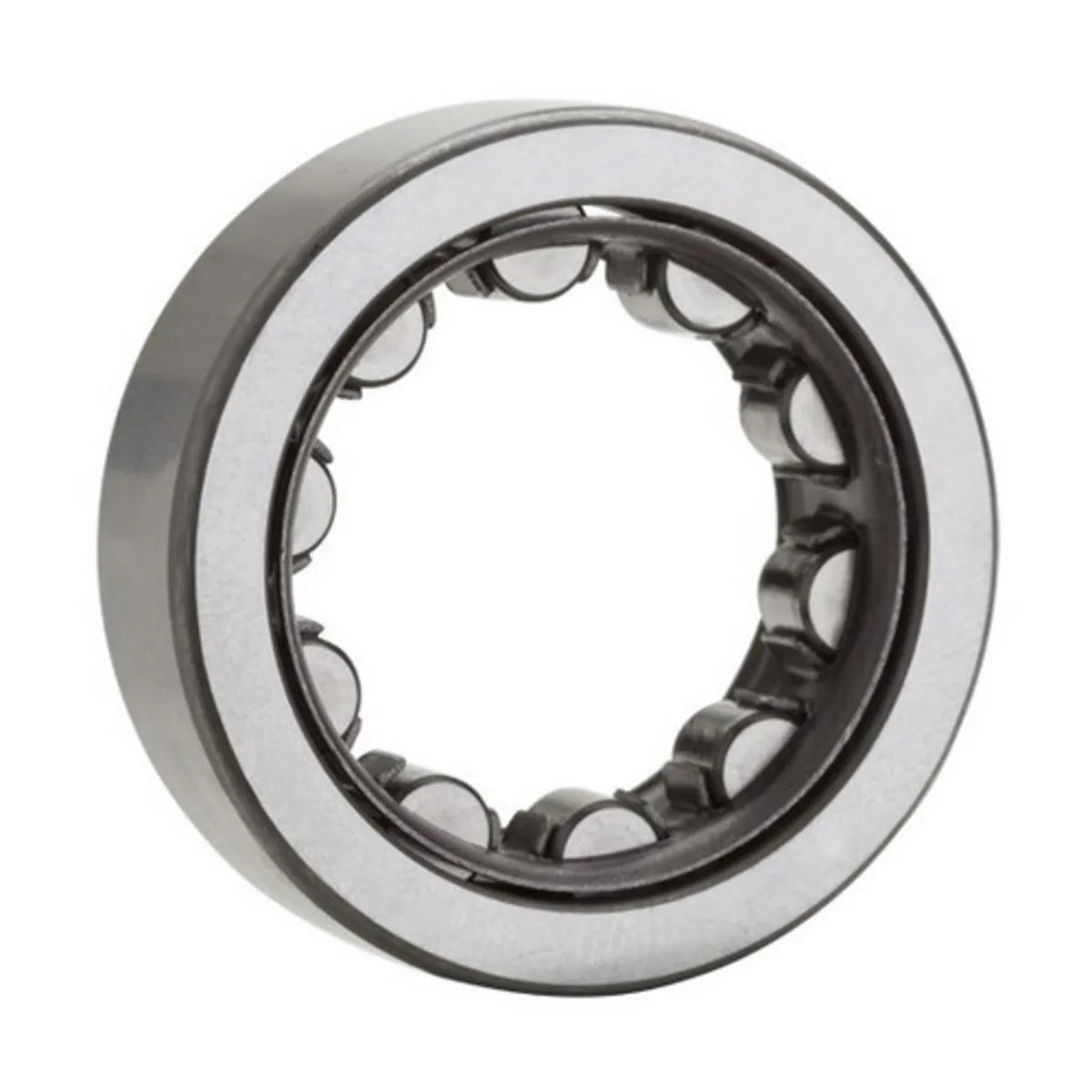

NTN NU319G1C3 Cylindrical Roller Bearing - Straight, 95 mm ID, 200 mm OD, 45 mm Width, C3 Internal Clearance

Product Description

The NTN NU3 Series Cylindrical Roller Bearing, MPN NU319G1C3, features a bore diameter of ninety-five millimeters, an outer diameter of two hundred millimeters, and a width of forty-five millimeters. This single-row bearing is designed to support high radial loads and allow for axial displacement. It is suitable for various applications including machinery and automotive systems.

• Rollers provide modified line contact with inner and outer ring
• Guided by ground ribs on the inner or outer ring
• Designed for thermal expansion accommodation

Product Highlights

This bearing is essential for applications requiring reliable performance under heavy loads and variable conditions.

Product Information

Standard Information

• Brand: NTN
• MPN: NU319G1C3

Technical Specifications

• Bore Diameter: 95 mm
• Outside Diameter: 200 mm
• Width: 45 mm
• Dynamic Load Capacity: 259000 N
• Static Load Capacity: 285000 N
• Weight: 14.573 lb
• Speed Rating: 4000 rpm (Limiting with Oil)
• Temperature Rating: -40 to 250 °F
