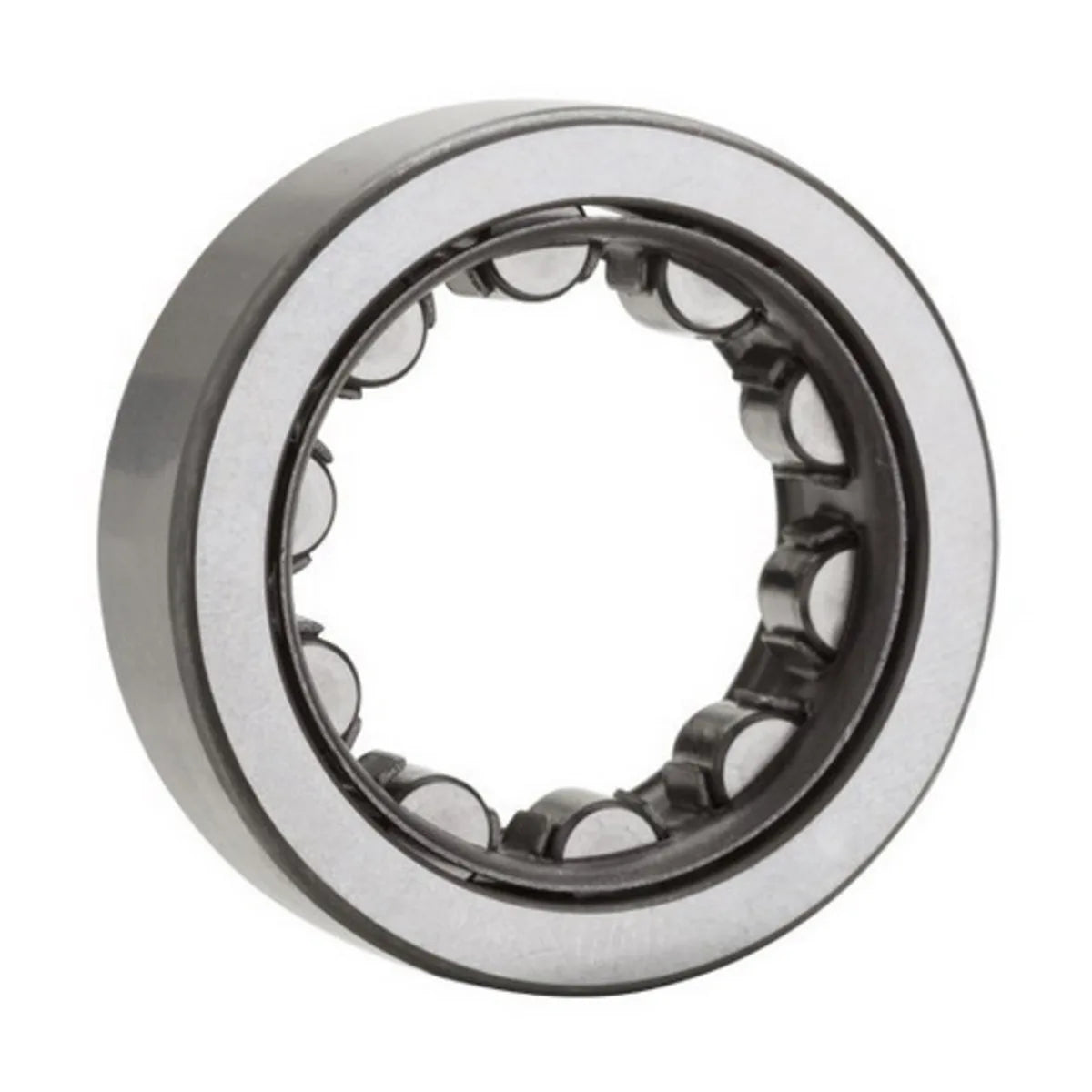

NTN NU318G1C3 Cylindrical Roller Bearing - Straight, 90 mm ID, 190 mm OD, 43 mm Width, C3 Internal Clearance

Product Description

The NTN NU3 series single row cylindrical roller bearing, MPN NU318G1C3, has a bore diameter of ninety millimeters and an outside diameter of one hundred ninety millimeters. The width of this bearing is forty-three millimeters. This standard cylindrical roller bearing design offers reliable performance in various applications.

• Features a high strength machined brass cage.
• Separable inner ring for easy assembly.
• Designed to accommodate thermal expansion.

Product Highlights

This bearing is suitable for radial loads and is constructed for high durability under moderate operating conditions.

Product Information

Standard Information

• Brand: NTN
• MPN: NU318G1C3

Technical Specifications

• Bore Diameter: 90 mm
• Outside Diameter: 190 mm
• Width: 43 mm
• Number of Rows: 1
• Dynamic Load Capacity: 240000 N
• Static Load Capacity: 265000 N
• Radial Internal Clearance: 3 mm
• Speed Rating: 4300 rpm (oil)
