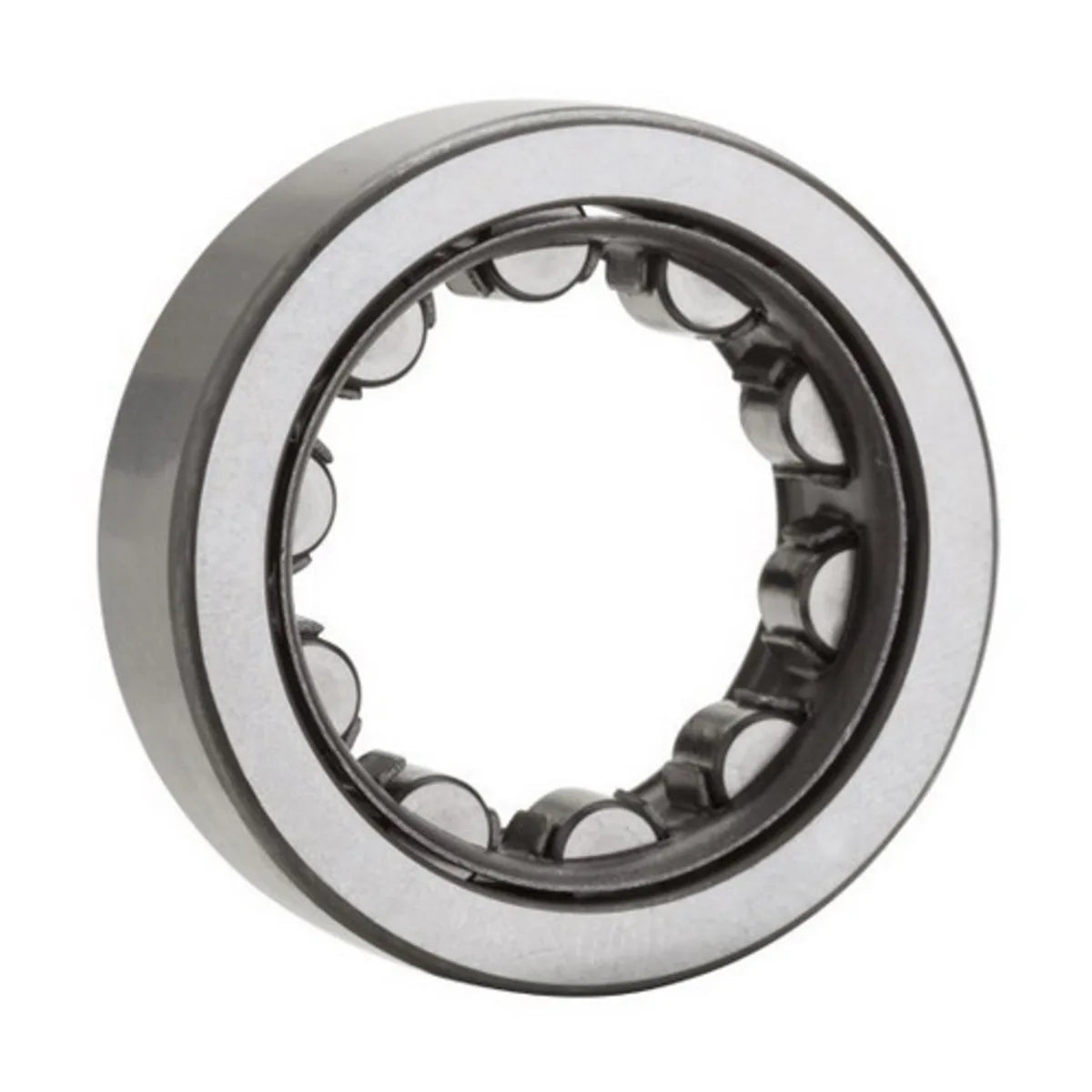

NTN NU317G1C3 Cylindrical Roller Bearing - Straight, 85 mm ID, 180 mm OD, 41 mm Width, C3 Internal Clearance

Product Description

The NTN NU317G1C3 is a cylindrical roller bearing designed for high efficiency and durability. This bearing features a round bore of eighty-five millimeters and an outer diameter of one hundred eighty millimeters. Its width is forty-one millimeters, making it suitable for various applications in mechanical systems.

• Designed for axial movement between inner and outer rings
• Constructed with a high strength machined brass cage
• Sequential roller arrangement for maximum load support

Product Highlights

The NTN NU317G1C3 cylindrical roller bearing can accommodate thermal expansion and is effective for high-speed applications.

Product Information

Standard Information

• Brand: NTN
• MPN: NU317G1C3

Technical Specifications

• Bore Diameter: 85 mm
• Outside Diameter: 180 mm
• Width: 41 mm
• Dynamic Load Capacity: 212000 N
• Static Load Capacity: 228000 N
• Material: Hardened Alloy Steel
• Cage Material: High Strength Machined Brass Rivetless
• Temperature Rating: -40 to 250 °F
