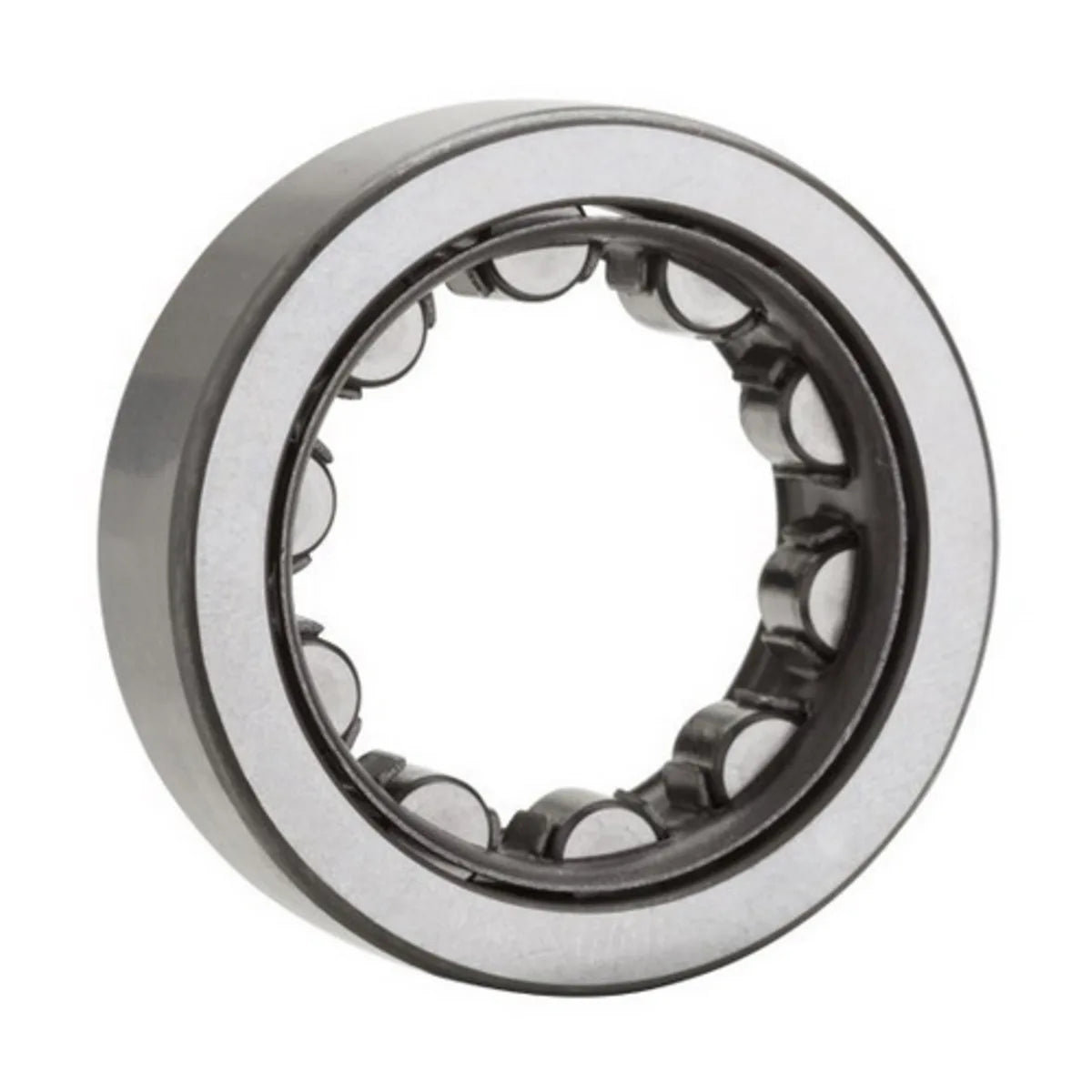

NTN NU316EG1C3 Cylindrical Roller Bearing - Straight, 80 mm ID, 170 mm OD, 39 mm Width, C3 Internal Clearance

Product Description

The NTN NU316EG1C3 is a cylindrical roller bearing designed for high performance and durability. This bearing has an inner diameter of eighty millimeters, an outer diameter of one hundred seventy millimeters, and a width of thirty-nine millimeters. The design includes rollers that provide a modified line contact, ensuring smooth operation and efficient load handling.

• Single row design for straightforward installation
• Open closure type for easy maintenance and lubrication
• Suitable for applications with thermal expansion

Product Highlights

Engineered to support axial movement and withstand thermal expansion, providing reliability in various applications.

Product Information

Standard Information

• Brand: NTN
• Part Number: NU316EG1C3

Technical Specifications

• Bore Diameter: 80 mm
• Outside Diameter: 170 mm
• Width: 39 mm
• Number of Rows: 1
• Cage Material: High Strength Machined Brass Rivetless with Square Holes
• Maximum RPM: 4400 rpm
• Dynamic Load Capacity: 190000 N
• Static Load Capacity: 207000 N
