NTN NU313G1C3 Cylindrical Roller Bearing - Straight, 65 mm ID, 140 mm OD, 33 mm Width, C3 Internal Clearance

Product Description

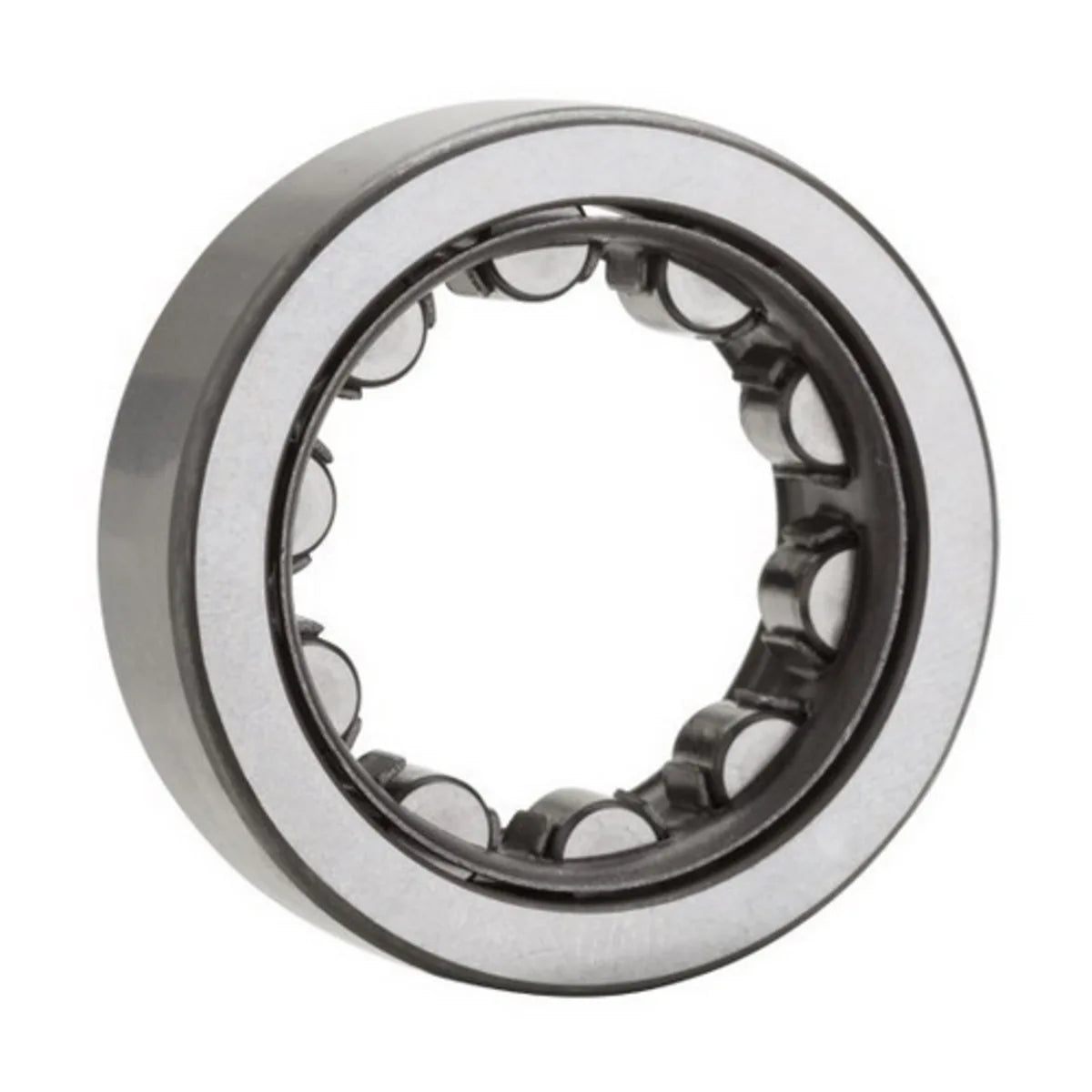

NTN NU313G1C3 is a single row cylindrical roller bearing. This bearing has a bore diameter of sixty-five millimeters and an outer diameter of one hundred forty millimeters. It is thirty-three millimeters wide and includes a high strength machined brass cage. The unique cylindrical shape allows axial movement of the inner ring relative to the outer ring, accommodating thermal expansion.

• Single row design for effective load distribution
• C3 internal clearance for enhanced performance
• Temperature range from -40 to 250 degrees Fahrenheit

Product Highlights

This cylindrical roller bearing is designed to handle radial loads and moderate axial loads in both directions. Its construction allows for lower friction and higher capacity for load. It is suitable for various industrial applications, including motors and gearboxes.

Product Information

Standard Information

• Brand: NTN
• MPN: NU313G1C3

Technical Specifications

• Bore Diameter: 65 mm
• Outside Diameter: 140 mm
• Width: 33 mm
• Cage Material: High Strength Machined Brass
• Dynamic Load Capacity: 135000 N
• Static Load Capacity: 139000 N
• Number of Rows: 1
• Precision Rating: ISO Class 0
