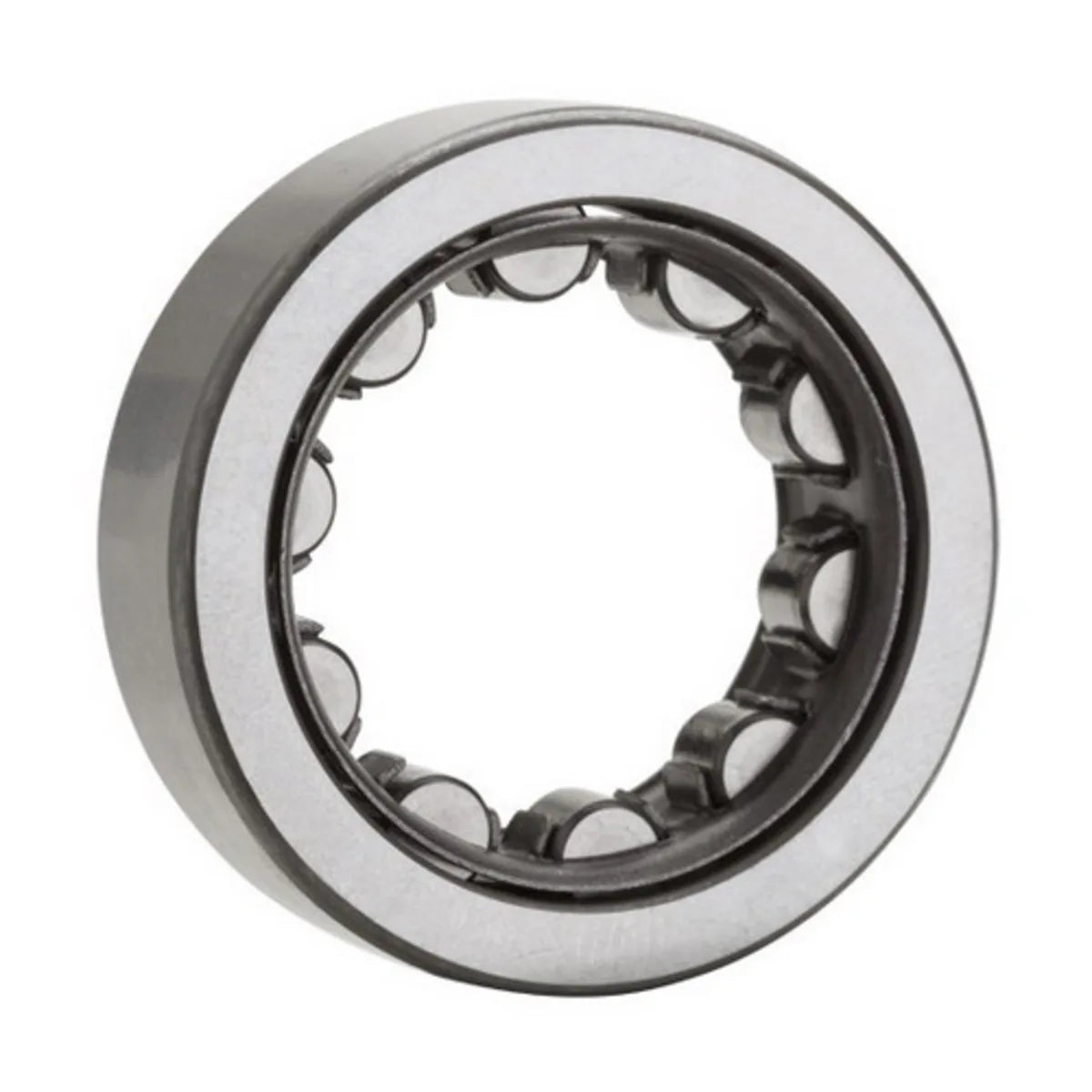

NTN NU312EAG1C3 Cylindrical Roller Bearing - 60 mm Bore, 150 mm OD, 35 mm Width

Product Description

The NTN NU312EAG1C3 is a cylindrical roller bearing that features a bore diameter of sixty millimeters and an outside diameter of one hundred fifty millimeters. This product allows for efficient axial movement while supporting high radial loads. It has a robust design, suitable for various industrial applications.

• Rollers provide line contact with inner and outer ring
• Accommodates thermal expansion
• Constructed for high strength and durability

Product Highlights

This cylindrical roller bearing is particularly effective where misalignment may occur while maintaining load performance.

Product Information

Standard Information

• Brand: NTN
• MPN: NU312EAG1C3

Technical Specifications

• Bore Type: Round
• Bore Diameter: 60 mm
• Outside Diameter: 150 mm
• Width: 35 mm
• Net Weight: 4.254 lbs
• Cage Material: High Strength Machined Brass Rivetless With Square Holes
• Speed Rating: 5500 rpm Limiting (Grease), 6500 rpm Limiting (Oil)
• Temperature Rating: -40 to 120 °C (-40 to 250 °F)
