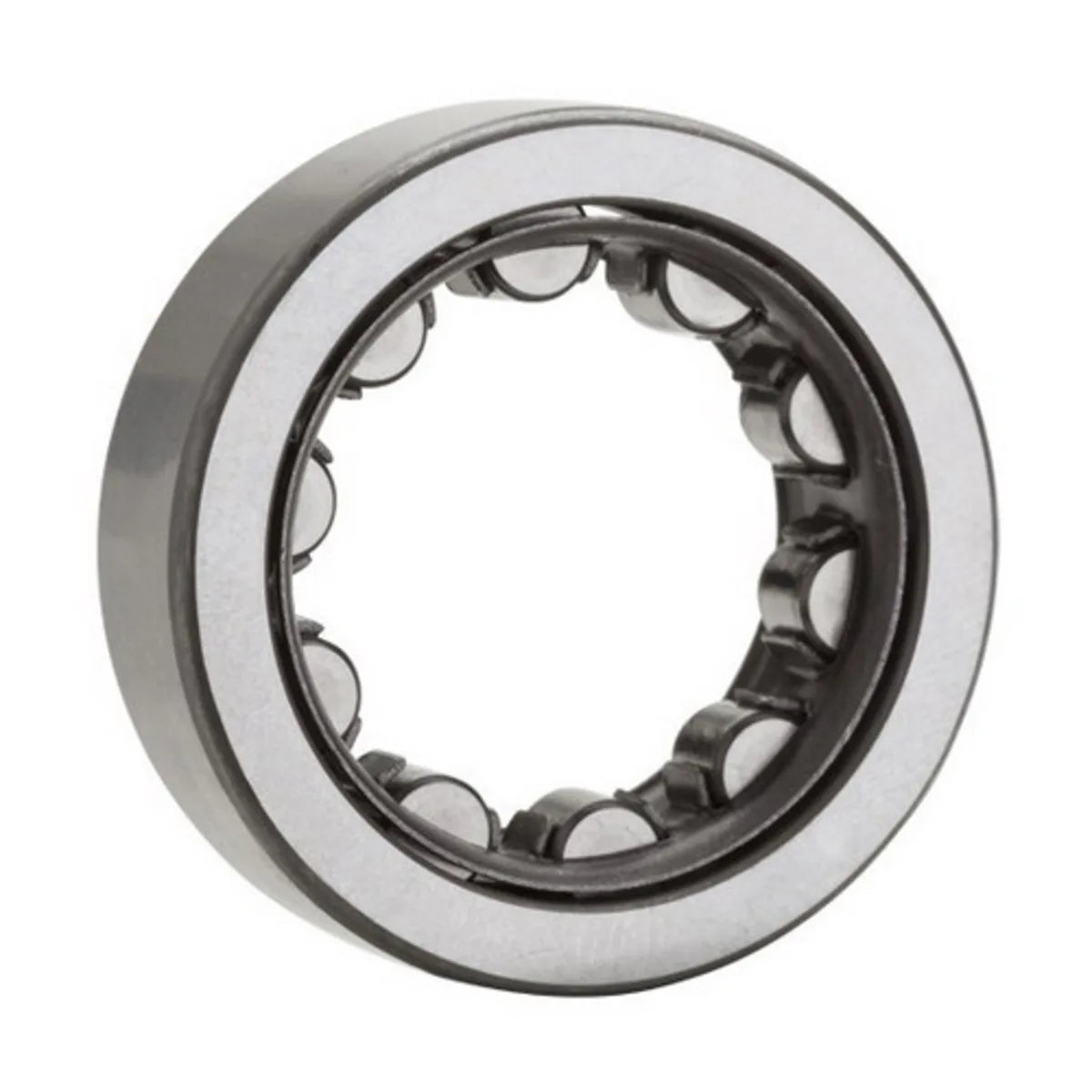

NTN NU214G1C3 Cylindrical Roller Bearing - Straight, 70 mm ID, 125 mm OD, 24 mm Width, C3 Internal Clearance

Product Description

NTN NU2 Series Single Row Cylindrical Roller Bearing with MPN NU214G1C3 is designed for reliable performance in various applications. This cylindrical roller bearing features a design that facilitates modified line contact with the cylindrical inner and outer ring raceways. The guiding ribs on the ring ensure stable rotation and reduce wear during operation.

• 70 mm bore diameter
• High strength machined brass cage
• Dynamic load capacity of 83500 N

Product Highlights

The NTN NU2 Series offers a robust solution for radial loads and axial movement requirements, especially in high-speed applications.

Product Information

Standard Information

• Brand: NTN
• Part Number: NU214G1C3

Technical Specifications

• Bore Diameter: 70 mm
• Outside Diameter: 125 mm
• Width: 24 mm
• Number of Rows: 1
• Dynamic Load Capacity: 83500 N
• Static Load Capacity: 95000 N
• Max RPM: 6500 rpm
• Temperature Range: -40 to 250 °F
