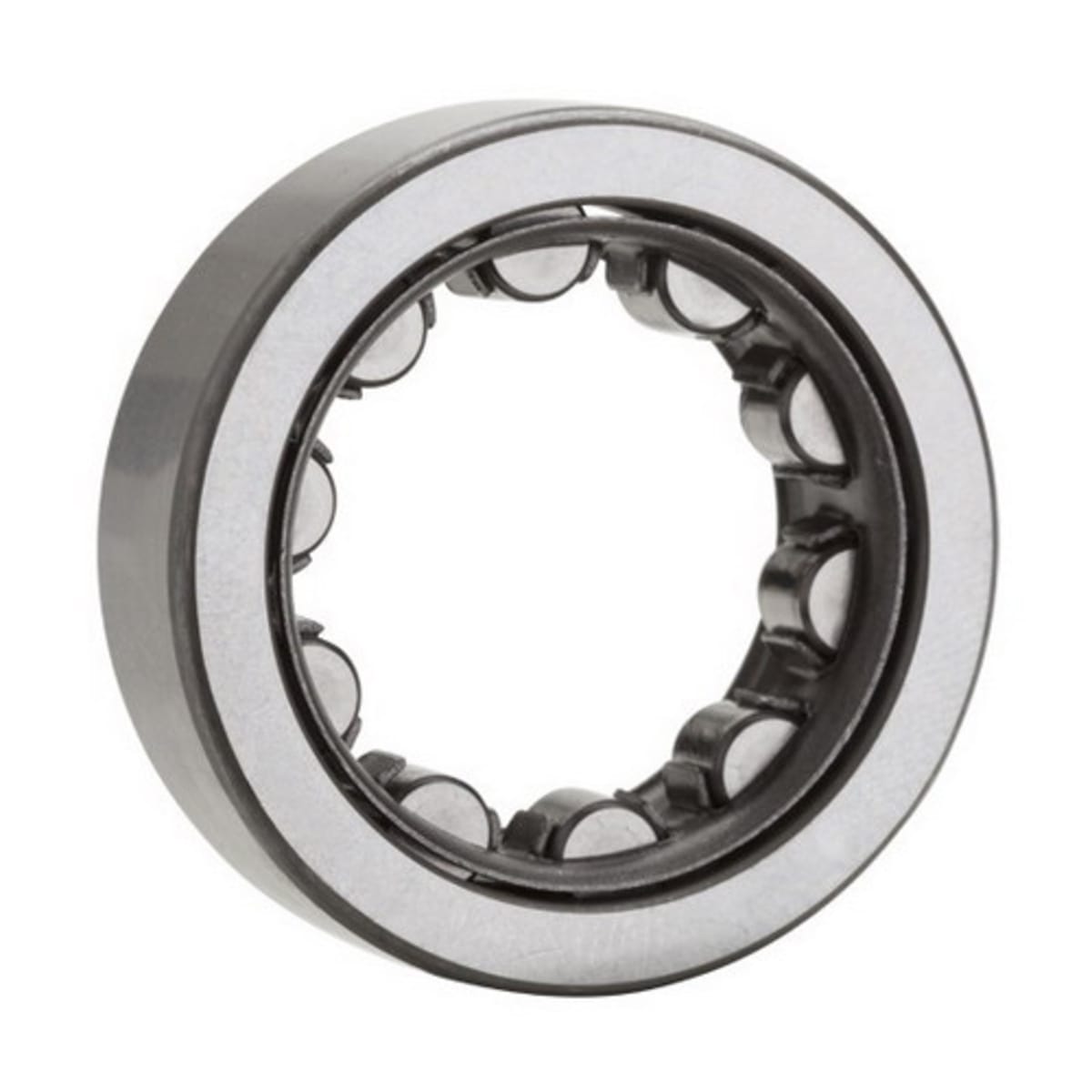

NTN NU211G1C3 Cylindrical Roller Bearing - Separable, Plain Inner Ring, Outer Ring with Two Ribs - NU Type

Product Description

NTN NU211G1C3 is a cylindrical roller bearing designed for improved load capacity and durability. The bearing features a separable plain inner ring and an outer ring with two ribs. Its unique design facilitates axial movement, accommodating thermal expansion effectively.

• Designed for high load capacity
• Separable components for ease of installation
• Manufactured using hardened alloy steel for durability

Product Highlights

This cylindrical roller bearing provides a modified line contact with raceways for enhanced performance.

Product Information

Standard Information

• Brand: NTN
• MPN: NU211G1C3

Technical Specifications

• Bore Diameter: 55 mm
• Outside Diameter: 100 mm
• Width: 21 mm
• Dynamic Load Capacity: 58000 N
• Static Load Capacity: 62500 N
• Internal Clearance: C3
• Maximum RPM: 8200
• Operating Temperature Range: -40 to 250 °F
• Cage Material: High Strength Machined Brass
• Fillet Radius: 1.5 mm
• Rolling Element Material: Hardened Alloy Steel
