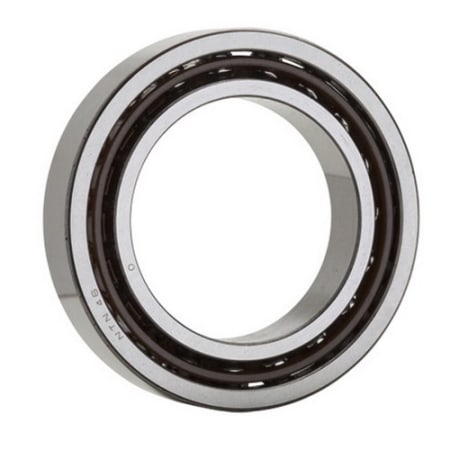

NTN 7309BL1BG Single Row Angular Contact Ball Bearing, 40 deg, 1.771 bore x 3-15/16 OD x 15/16 W

Product Description

NTN 7309BL1BG is a single row angular contact ball bearing. This bearing features a bore diameter of one point seven seven one inches and an outside diameter of three point nine three seven inches. The width is fifteen sixteenths of an inch. The bearing is designed with a machined brass cage and has a contact angle of forty degrees.

• Flush ground universal mount for DB, DF, and DT arrangements
• Temperature rating from negative forty degrees to one hundred twenty degrees Celsius
• Speed ratings: six thousand six hundred RPM limiting with grease and eight thousand nine hundred RPM limiting with oil

Product Highlights

The NTN 7309BL1BG is ideal for applications requiring precise load handling and high-speed operation. Its construction allows for enhanced durability and reliability.

Product Information

Standard Information

• Part Number: 7309BL1G01
• Brand: NTN

Technical Specifications

• Bore Diameter: 1.771 inches
• Outside Diameter: 3.937 inches
• Width: 0.9375 inches
• Cage Material: Machined Brass
• Static Load Capacity: 40000 N
• Dynamic Load Capacity: 58500 N
• Enclosure Type: Open
• Number of Rows: 1
