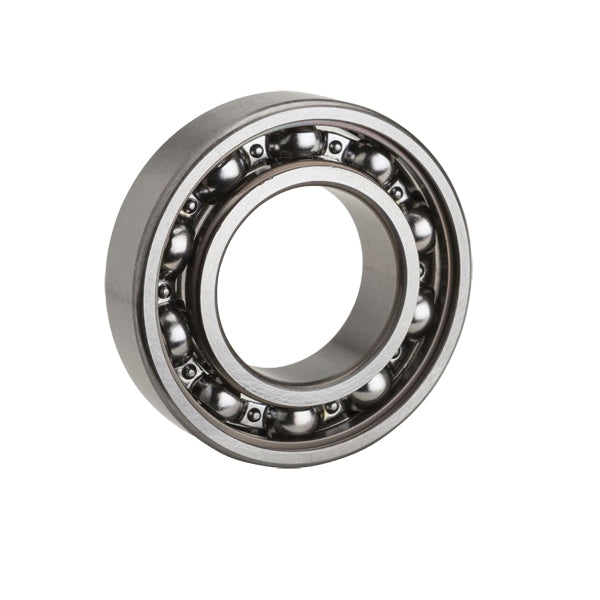

NTN 6324C3 Deep Groove Radial Ball Bearing, 120 mm Bore x 260 mm OD x 55 mm W

Product Description

The NTN 6324C3 is a single row deep groove radial ball bearing, suitable for various applications. This bearing features a bore diameter of one hundred twenty millimeters, an outside diameter of two hundred sixty millimeters, and a width of fifty-five millimeters. It uses a pressed steel cage that provides durability and reliable performance.

• Temperature rating ranges from minus forty to one hundred twenty degrees Celsius
• Speed rating of up to two thousand six hundred revolutions per minute with grease, and three thousand one hundred revolutions per minute with oil
• Dynamic load capacity of two hundred seven thousand Newtons and static load capacity of one hundred eighty-five thousand Newtons

Product Highlights

Ideal for industrial applications where efficiency and reliability are required.

Product Information

Standard Information

• Series: 6324
• Trade Name: NTN

Technical Specifications

• Bore Diameter: 120 mm
• Outside Diameter: 260 mm
• Width: 55 mm
• Cage Material: Pressed Steel
• Number of Rows: 1
• Fillet Radius: 3 mm
• Dynamic Load Capacity: 207000 N
• Static Load Capacity: 185000 N
