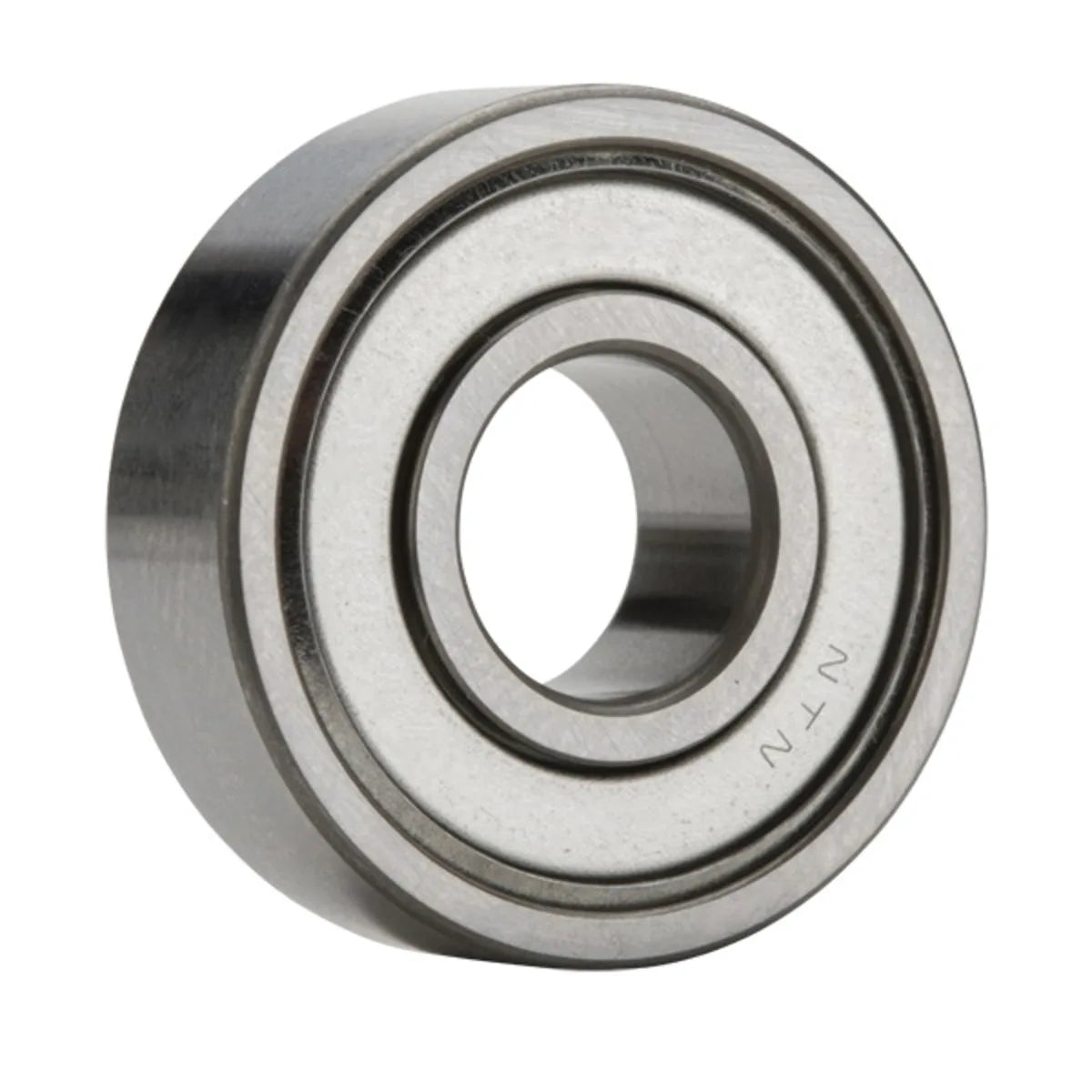

NTN 6230ZZC3/EM Deep Groove Radial Ball Bearing 150 mm ID 270 mm OD 45 mm Width

Product Description

The NTN 6230ZZC3/EM is a deep groove radial ball bearing designed for reliable performance in various applications. It features a bore diameter of one hundred fifty millimeters and an outside diameter of two hundred seventy millimeters. The width of this bearing is forty-five millimeters. This product includes a double shield that helps protect against contaminants, ensuring longevity and consistent operation.

• Bore Diameter: 150 mm
• Outside Diameter: 270 mm
• Overall Width: 45 mm

Product Highlights

The NTN 6230ZZC3/EM is suitable for use in a range of machinery and industrial applications. Its steel rolling elements provide durability under varying loads. Rated for a temperature range from negative forty to positive one hundred twenty degrees Celsius, this bearing maintains performance in harsh conditions.

Product Information

Standard Information

• Trade Name: NTN
• Series: 6230

Technical Specifications

• Cage Material: Pressed Steel
• Seal Material: Nitrile Butadiene Rubber
• Dynamic Load Capacity: 176000 N
• Static Load Capacity: 168000 N
• Number of Rows: 1
• Clearance: C3
• Max RPM: 2400 rpm
• Operating Temperature Range: -40 to 250 °F
