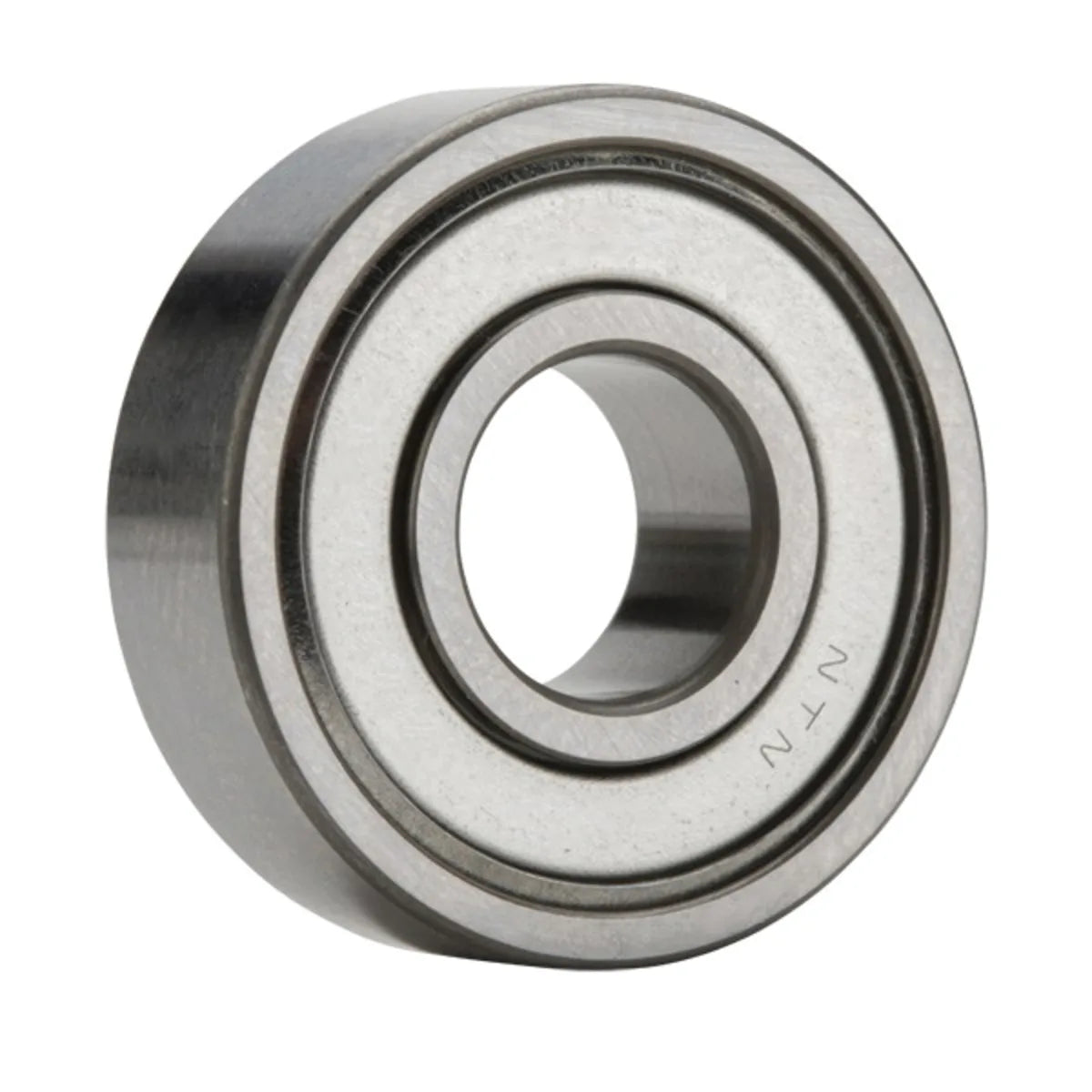

NTN 6215ZZC3/EM Deep Groove Radial Ball Bearing 75 mm ID 130 mm OD 25 mm Width

Product Description

The NTN 6215ZZC3/EM is a single row deep groove radial ball bearing. It features a bore diameter of seventy-five millimeters and an outer diameter of one hundred thirty millimeters, with a width of twenty-five millimeters. This bearing is designed with a double shield for better protection. It is made from high carbon chrome steel, which ensures durability and strength.

• Bore Diameter: 75 mm
• Outside Diameter: 130 mm
• Width: 25 mm

Product Highlights

This NTN bearing operates efficiently under a temperature range of -40 to 120 degrees Celsius. It is suitable for various applications in machinery where deep groove ball bearings are required.

Product Information

Standard Information

• Brand: NTN
• MPN: 6215ZZC3/EM

Technical Specifications

• Number of Rows: 1
• Cage Material: Pressed Steel
• Static Load Capacity: 49500 N
• Dynamic Load Capacity: 66000 N
• Fillet Radius: 1.5 mm
• Clearance: C3
• Speed Rating: 4800 rpm Limiting (Grease)
• Seal Material: Nitrile Butadiene Rubber
