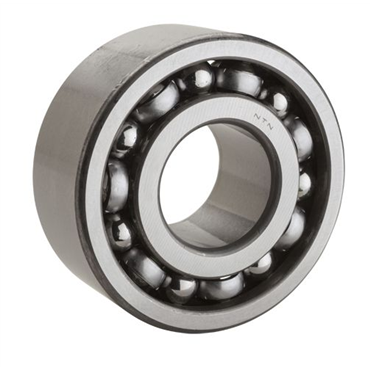

NTN 5205C3 Double Row Angular Contact Bearing - 25 mm Bore, 52 mm OD, 0.8110 in Width, Open, Without Snap Ring, 25 ° Contact Angle, C3

Product Description

The NTN 5205C3 is a double row angular contact bearing designed for effective performance in various applications. With a bore diameter of twenty-five millimeters and an outer diameter of fifty-two millimeters, this bearing meets industry standards for reliability. The standard width measures 0.8110 inches and features an open design without a snap ring, which facilitates easier maintenance and inspection.

• Bore Diameter: twenty-five millimeters
• Contact Angle: twenty-five degrees
• Dynamic Load Capacity: twenty-one thousand three hundred Newtons

Product Highlights

This bearing is suitable for high-speed applications with a maximum RPM of eleven thousand. The construction includes a steel cage, providing durability and stability during operation.

Product Information

Standard Information

• Brand: NTN
• Country of Origin: Japan

Technical Specifications

• Weight: 0.39 lbs
• Overall Width: 0.8110 in
• Cage Type: Pressed
• Precision Rating: Class 0
• Fillet Radius: 1 mm
• Closure Type: Open
• Manufacturer UPC Number: 4547359536454
• Radial Static Load Capacity: 14700 N
