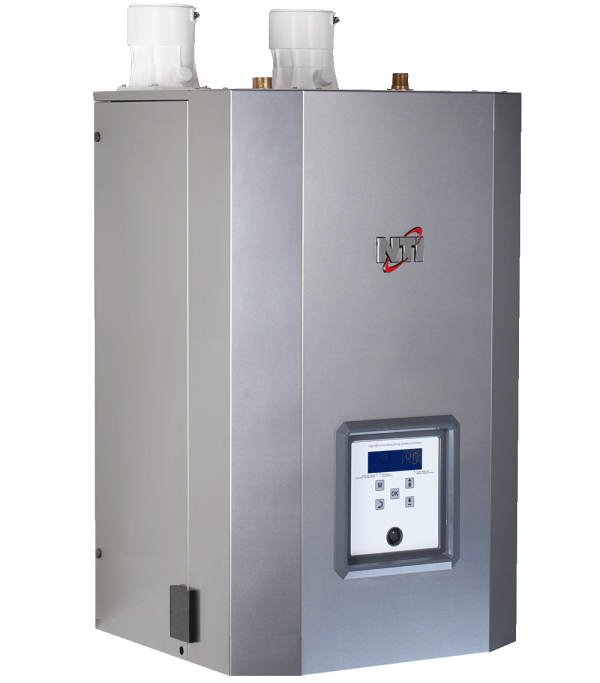

NTI FTV190 FTV Series Trinity Gas Fired Condensing Boiler 120 VAC

Product Description

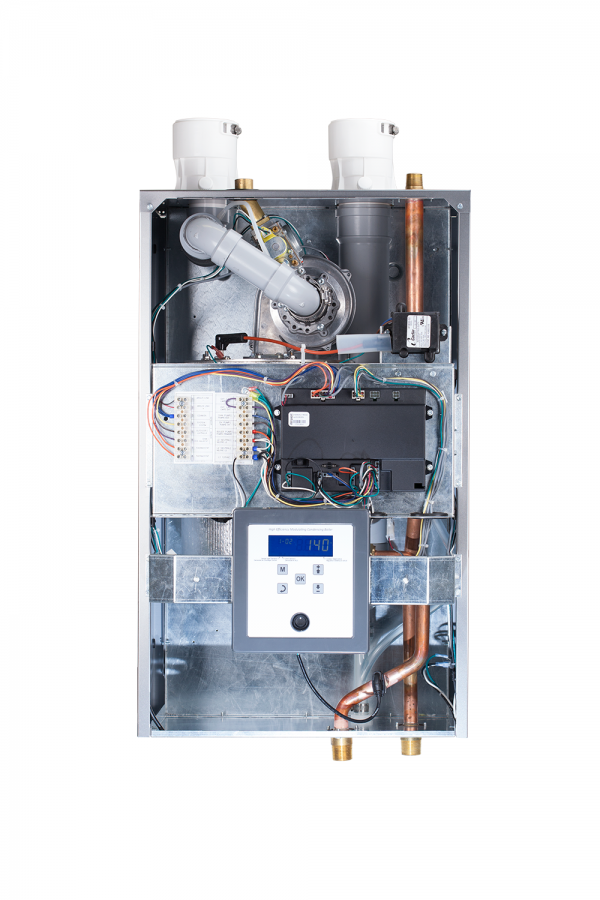

The NTI FTV190 is a high-efficiency, wall-hung boiler designed for effective heating. It features a vertical fire tube heat exchanger made from 439 stainless steel. The design includes a user-friendly programmable display and components that are easy to access, enabling straightforward installation and maintenance. This unit effectively provides space heating and generates endless hot water, serving as a versatile two-in-one appliance.

• Fire tube stainless steel heat exchanger
• Universal vent connections with embedded test port
• Quick connect components

Product Highlights

The NTI FTV190 combines efficiency and functionality, catering to both heating and hot water needs.

Product Information

Standard Information

• Series: FTV Series
• Type: Boiler

Technical Specifications

• Voltage Rating: 120 VAC
• AFUE Rating: 95 %
• BTU Rating: 19 to 190 MBtu/hr Input, 176 MBtu/hr Heating, 153 MBtu/hr Net Rating
• Pressure Rating: 50 psi
• Connection Type: 1/2 in FNPT Gas, 1 in MNPT Water
• Ignition Type: Direct Spark
• Mounting Type: Wall Hung
• Efficiency: 95 %
