NTI 3319457 Building Management Clip-In

Product Description

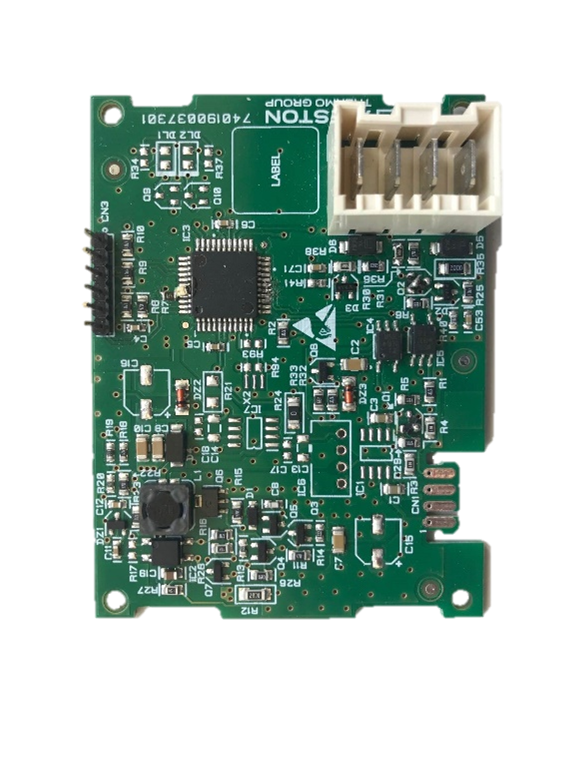

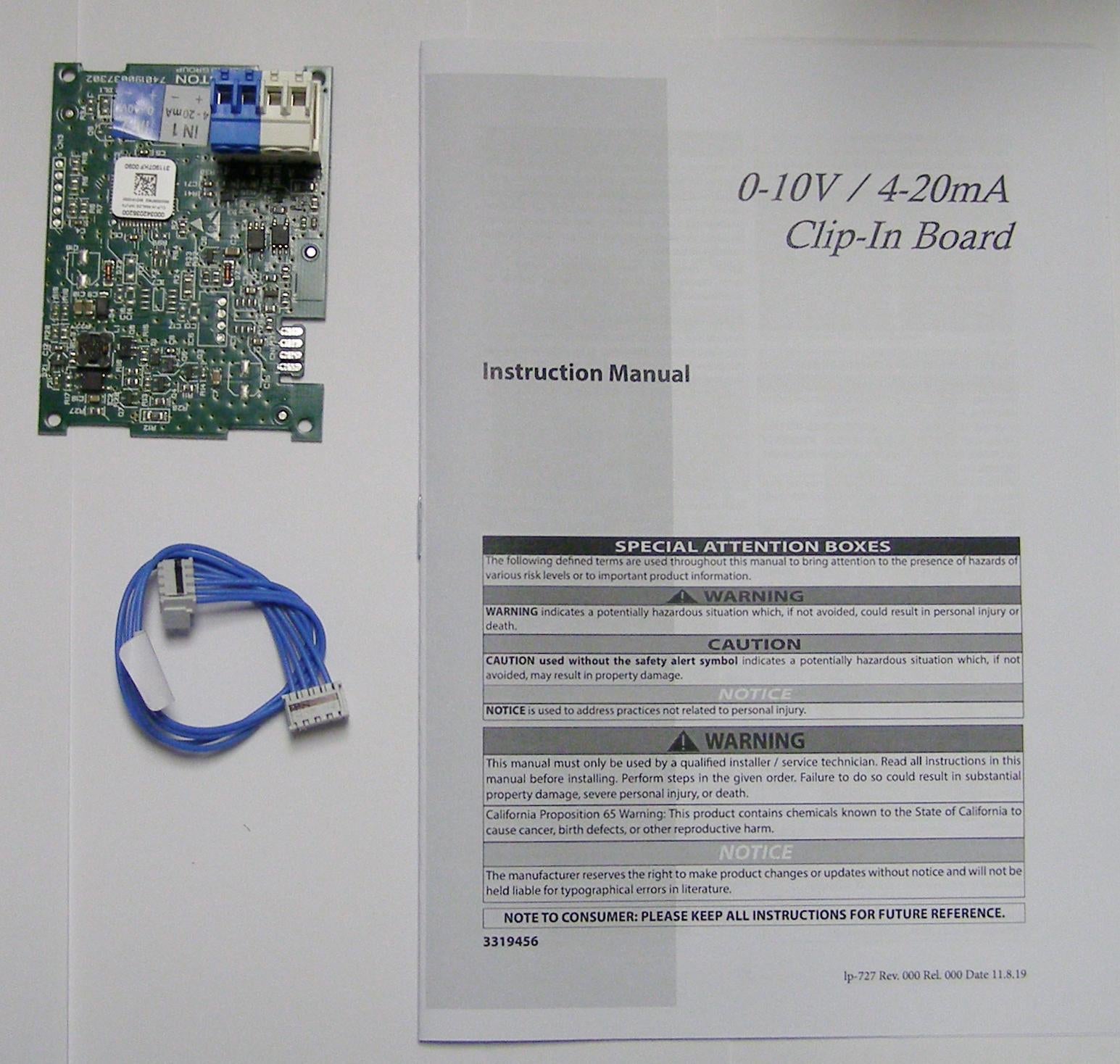

The NTI 3319457 Building Management Clip-In module allows temperature setpoint or firing rate control of a boiler using a 0-10 V or 4-20 mA signal from a third-party controller, such as a building management system. This module clips into the TRX control panel beneath the Wi-Fi PCB and plugs into the main PCB. Configuration is done via menu 42 on the boiler display.

• Enables boiler control via 0-10V or 4-20mA signal
• Compatible with third-party controllers and BMS systems
• Easy installation into the TRX control panel

Product Highlights

This clip-in module enhances control options for boiler management systems. It simplifies integration with existing building automation systems.

Product Information

Standard Information

• Brand: NTI
• Shipping Height: 2 inches
• Shipping Width: 7 inches
• Shipping Length: 9 inches
• UPC: 628233733856

Technical Specifications

• Amperage Rating: 4 to 20 mA
• Voltage Rating: 0 to 10 VDC
