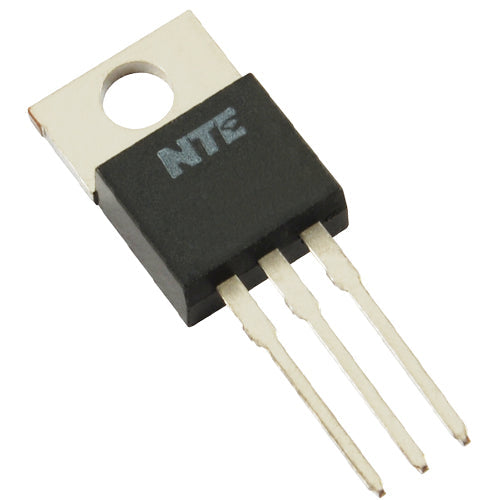

Nte Electronics 2325 Npn Silicon Transistor 900V 3A

Product Description

The NTE ELECTRONICS 2325 is an NPN silicon transistor rated for high-voltage switching and amplification applications. With a collector-emitter voltage rating of 900 volts and a continuous collector current (IC) of 3 amps, this device is built for demanding power-control circuits. It is a through-hole component suited for installation on PCBs in industrial controls, power supplies, and motor drive circuits. Electricians, electronics technicians, and controls specialists working on equipment-level repairs will find this transistor appropriate for direct replacement or equivalent-substitution applications.

This transistor is applicable in residential and light commercial electronic control boards, power conversion equipment, and switching circuits where high-voltage NPN devices are required. It is commonly specified in repair scenarios where an original board-level transistor has failed and must be replaced with a discrete component. The TO-style package is compatible with standard PCB footprints used in high-voltage control circuitry.

Key Features

• NPN silicon construction suitable for high-voltage switching and amplification
• 900-volt collector-emitter voltage (VCEO) rating handles demanding circuit conditions
• 3-amp continuous collector current (IC) supports moderate power-handling requirements
• Through-hole package allows straightforward PCB installation and soldering
• Silicon material provides stable thermal and electrical characteristics across operating ranges

Compatibility

Designed as an OEM-style discrete replacement transistor for high-voltage NPN silicon applications in electronic control and power supply circuits.

Installation Notes

Installation of this transistor should be performed by a qualified electronics technician or licensed electrician familiar with PCB-level component replacement. De-energize and fully discharge the equipment before beginning any board-level work, as high-voltage circuits can retain lethal charge after power is removed. Use appropriate soldering equipment and observe proper ESD handling procedures to prevent damage to the component or surrounding circuitry. Verify polarity and lead orientation against the circuit schematic before soldering.

Technical Specifications

• Transistor Type: NPN Silicon
• Collector-Emitter Voltage (VCEO): 900 volts
• Continuous Collector Current (IC): 3 amps

Standard Information

• Brand: NTE ELECTRONICS
• Manufacturer Part Number: 2325
