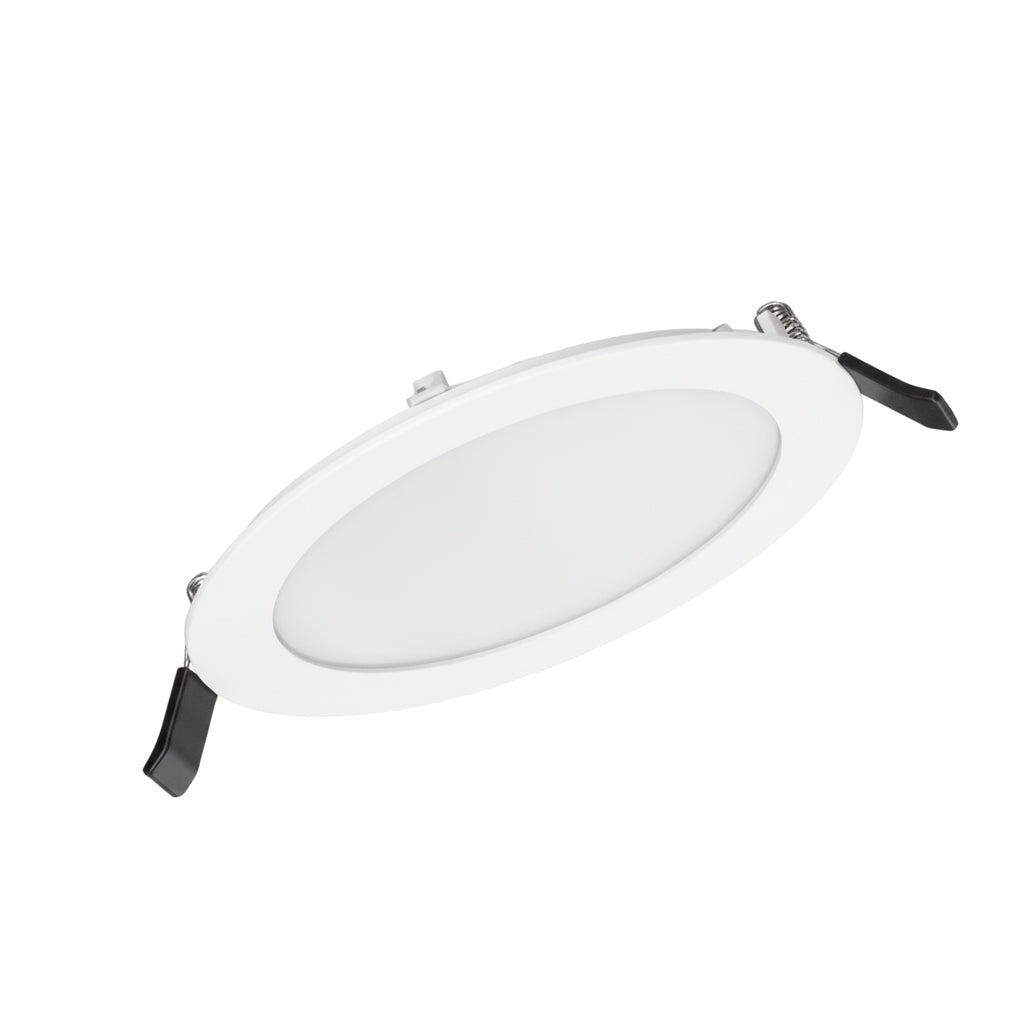

Nsl SDL-5CCT-6-WH-1P 5CCT Ultra-Thin LED Recessed Ceiling Light 12W (6in)

Product Description

The Nsl SDL-5CCT-6-WH-1P is a 6-inch ultra-thin recessed LED ceiling light that delivers 12W output and selectable color temperatures (2700K�5000K). It features a 9 mm profile, double-sided frosted diffuser, ADC12 aluminum thermal frame, TRIAC dimmable driver, and wet-location listing. The fixture produces more than 1200 lumens with CRI >90, a 110� beam angle, >0.9 power factor, and a 50,000-hour rated life.

• Selectable 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) with TRIAC dimming
• Ultra-thin 9 mm profile, ADC12 aluminum thermal frame, and double-sided frosted diffuser
• 120V AC input, >1200 lumens, CRI 90+, 110� beam angle, wet-location listed

Product Highlights

6in ultra-thin recessed LED, 12W output, 5CCT selectable, TRIAC dimmable, >1200 lm, CRI 90+, wet listed, 50,000-hour life

Product Information

Standard Information

• Brand: NSL
• Manufacturer Part Number: SDL-5CCT-6-WH-1P

Technical Specifications

• Brand: Nsl
• Manufacturer Part Number: SDL-5CCT-6-WH-1P
• Product Name: 5CCT Ultra-Thin LED Recessed Ceiling Light
• Size: 6 in
• Input Voltage: 120V AC
• Output Power: 12W
• Power Consumption: 12W
• Colour Temperature: Selectable 5CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90+
• Lumen Output: >1200 lm
• Dimmable: Yes, TRIAC dimmers (5% - 100%)
• Power Factor: >0.9
• Beam Angle: 110�
• LED Type: 2385
• Life Span: 50,000 Hours
• Profile Thickness: 9 mm (0.35 in)
• Dimensions (Inches): D1=4.98", D2=6.61", H=0.75"
• Dimensions (Millimetres): D1=126.5 mm, D2=168 mm, H=19.1 mm
• Shade Material: Aluminum alloy
• Back Plate: Galvanized iron sheet
• Clip: Steel
• Approved Location: Wet
• Mounting Type: Ceiling recessed
• Approvals: cETLus, Energy Star
