Product Description

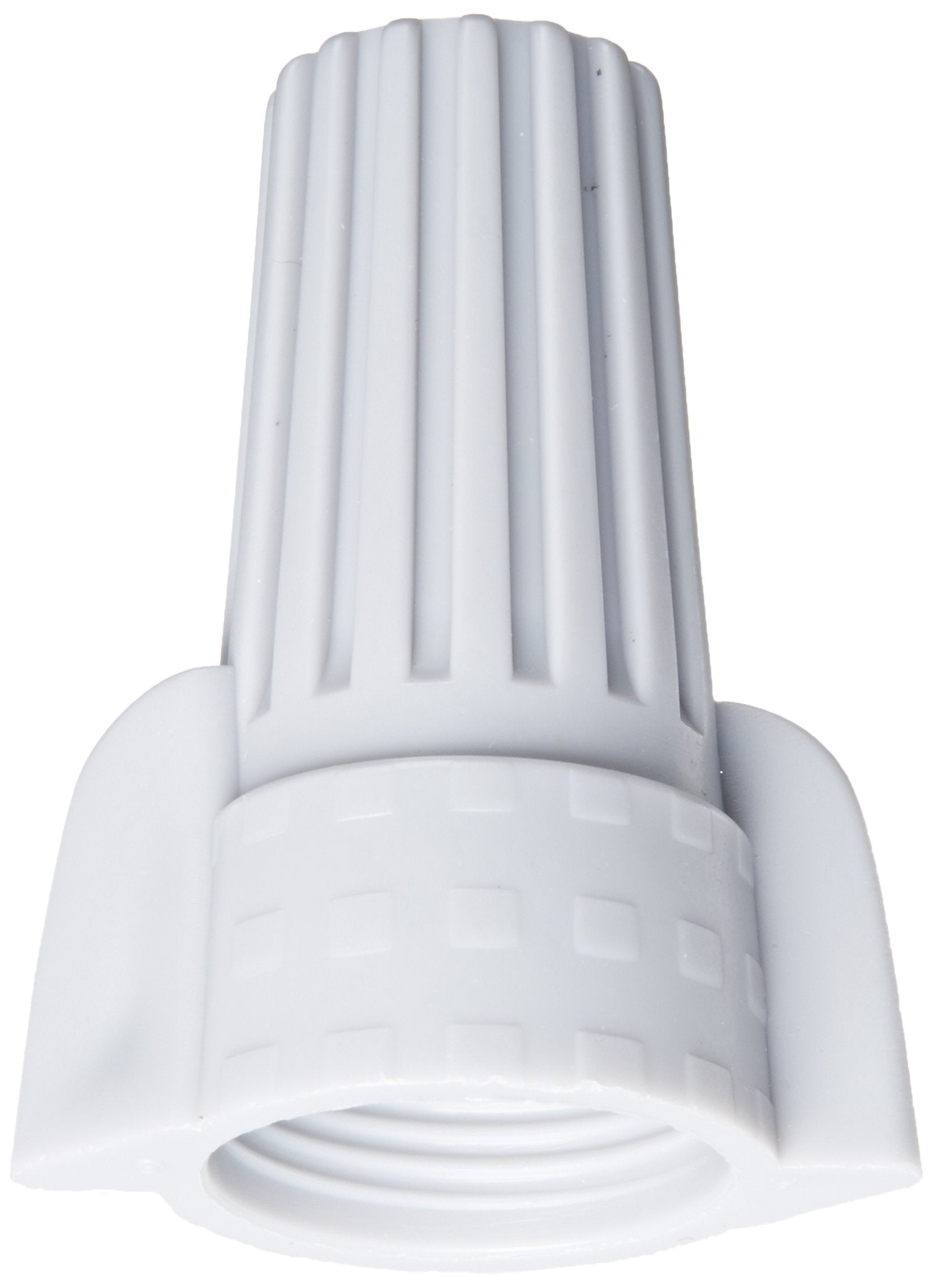

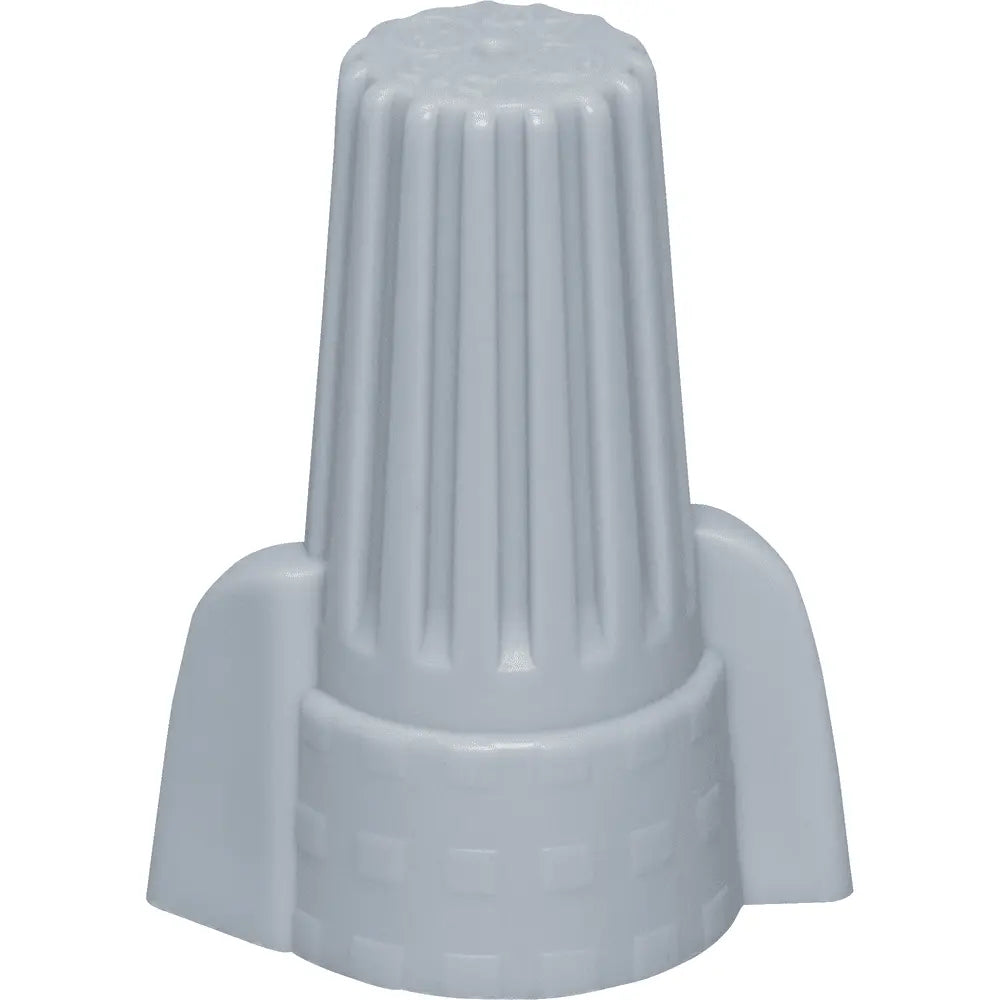

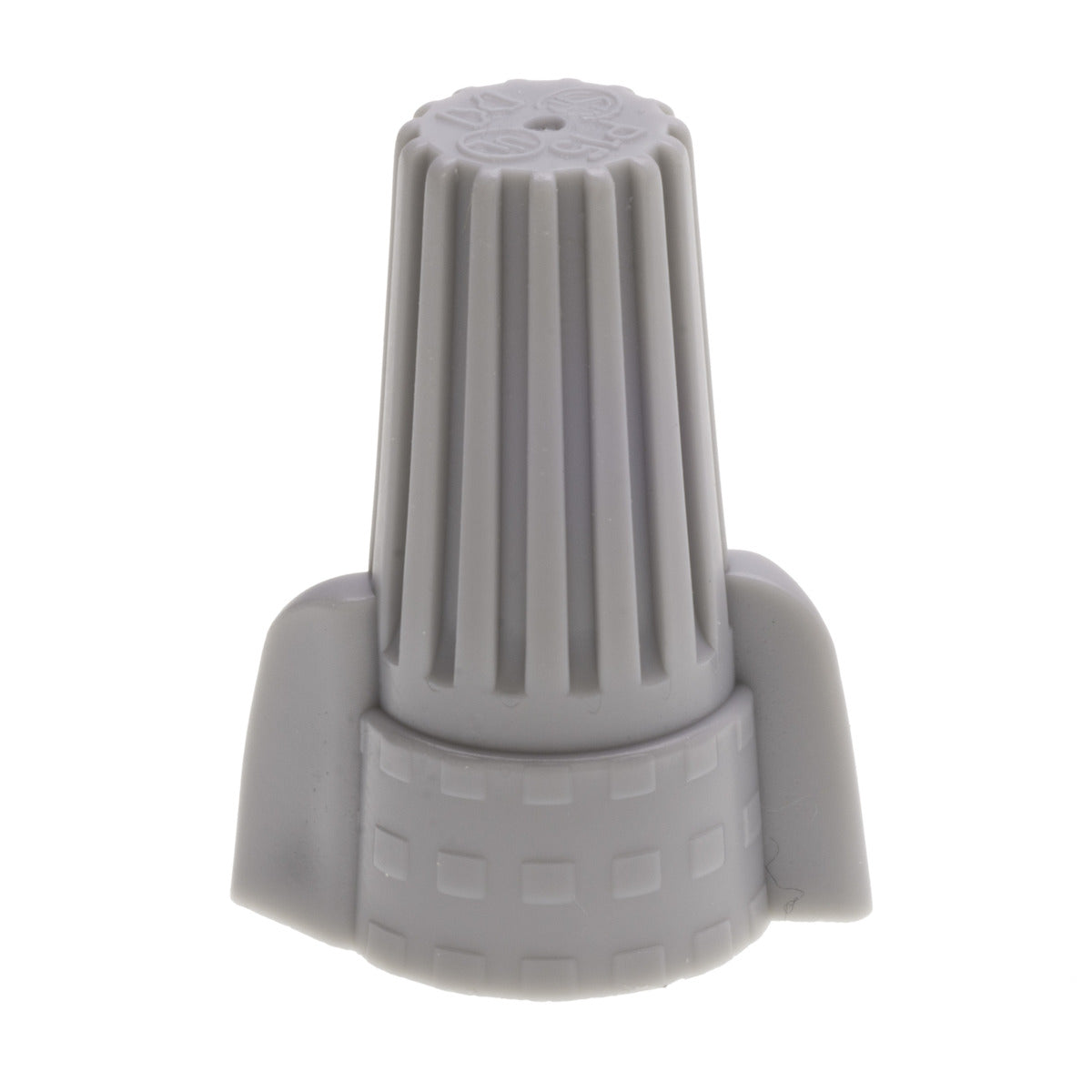

The NSI WWC-G-B Easy-Twist wire connectors are designed for forming secure connections between wires. The specialized spring design grips wires with fewer twists, and the ribbed connector exterior provides a comfortable grip. These twist-on connectors accommodate copper wire sizes from 18 to 8 AWG and are UL486C Listed.
- Specialized spring design grips in fewer twists.
- Ribbed exterior offers a comfortable grip.
- Flame-retardant thermoplastic shell provides electrical insulation.
Product Highlights
These Easy-Twist wire connectors are ideal for quick and secure wire connections in a variety of applications. The winged design and square wire spring ensure a reliable grip.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: WWC-G-B
-
Country of Origin: TW
Technical Specifications
-
Type: Wire Nuts
-
Color: Gray
-
Length: 1.31 Inches
-
Diameter: 0.394 Inches
-
Material: Thermoplastic
-
Standard: UL486C Listed
-
Insulated: Yes
-
Wire Type: Copper
-
Connection: Twist-On
-
Voltage Rating: 600 VAC
-
Conductor Range: 18 to 8 AWG
-
Temperature Rating: 105 deg C
-
Environmental Conditions: Dry Location
-
Series: WWC Series
-
Shell Style: Winged/Twist-On
-
Spring Type: Square Wire
-
Minimum Wire Combination Size: (3) #14, (1) #18
-
Maximum Wire Combination Size: (3) #10
-
Approval: UL, CSA
-
Conductor Size: 8 - 18 AWG
-
Application: Splicing Wire Applications
-
Wire Size: 18 to 8 AWG
-
Vendor SKU: WWC-G-B
-
Manufacturer: NSi Industries
-
Brand: NSI
-
Finish: Thermoplastic
-
Rated Voltage: 600 V
-
Color Family: Gray
-
Height: 1.31 in.
-
Allowable Gauge Range: 18 - 8
-
Wire Range: 18 AWG – 8 AWG
-
Number of Items: 250.0
-
Depth: .394 in.
