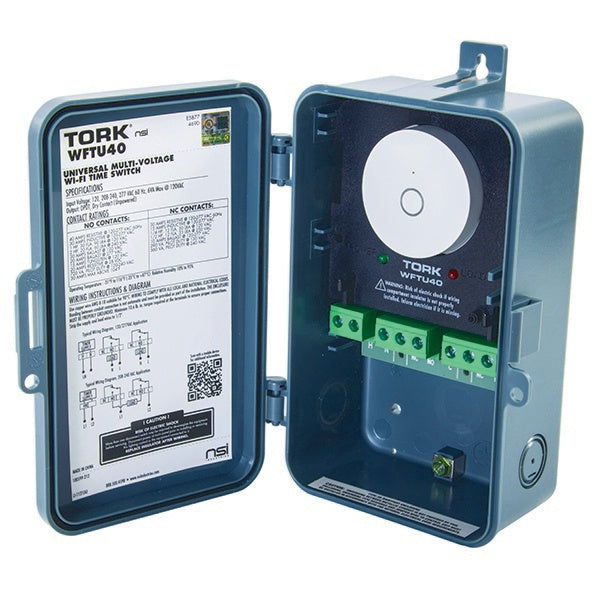

NSI WFTU40 120/208-240/277 Volt 7 Day DPDT Commercial Grade Multi-Voltage Wi-Fi Smart Digital Time Switch Tork

Product Description

The NSI WFTU40 is a versatile digital time switch suitable for various voltage ratings, including one hundred twenty, two hundred eight, two hundred forty, and two hundred seventy-seven volts. This Wi-Fi enabled device allows for easy scheduling and control of electrical loads in commercial applications. Ideal for HVAC systems, lighting controls, and other electrical equipment.

• Multi-voltage compatibility for broad applications
• Wi-Fi connectivity for remote access and scheduling
• 7-day programmable timer for flexible operation

Product Highlights

This time switch supports DPDT contact configuration, suitable for both resistive and inductive loads. It offers freeze and rain sensing, as well as astronomic timing features for effective performance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• MPN: WFTU40
• Voltage Rating: 120/208 - 240/277 Volt
• Timing Range: 7 Day
• Contact Configuration: DPDT
• Number of Poles: 2
• Maximum Load Capacity: General Purpose/Resistive: 40 Amp (NO), 30 Amp (NC) at 120/277 Volt AC; 20 Amp (NO) at 28 Volt DC
• Material: Plastic
• Standards: cULus Listed, UL Listed, CSA Certified
