NSI WC-Y-B Standard Twist-On Wire Connector

Product Description

The NSI WC-Y-B is a standard twist-on wire connector designed for use with copper wires ranging from twenty-two to ten American Wire Gauge (AWG). This connector includes a fixed square wire spring that ensures a secure grip on conductors. It features a thermoplastic shell that is flame-retardant and meets safety standards.

• Compatible with wire sizes from 22 to 10 AWG
• Designed for maximum voltage of 600 VAC
• Easy to use with no pre-twisting required

Product Highlights

This product is used primarily for splicing wires in electrical applications. Its compact design allows for proper installation in tight spaces.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Color: Yellow

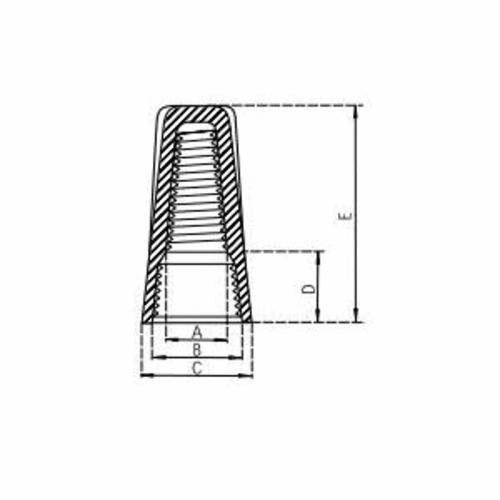

• Dimensions: 0.969 inches high x 0.551 inches wide
• Type: Standard
• Wire Size: 22 to 10 AWG
• Wire Type: Copper
• Material: Thermoplastic
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees Celsius
