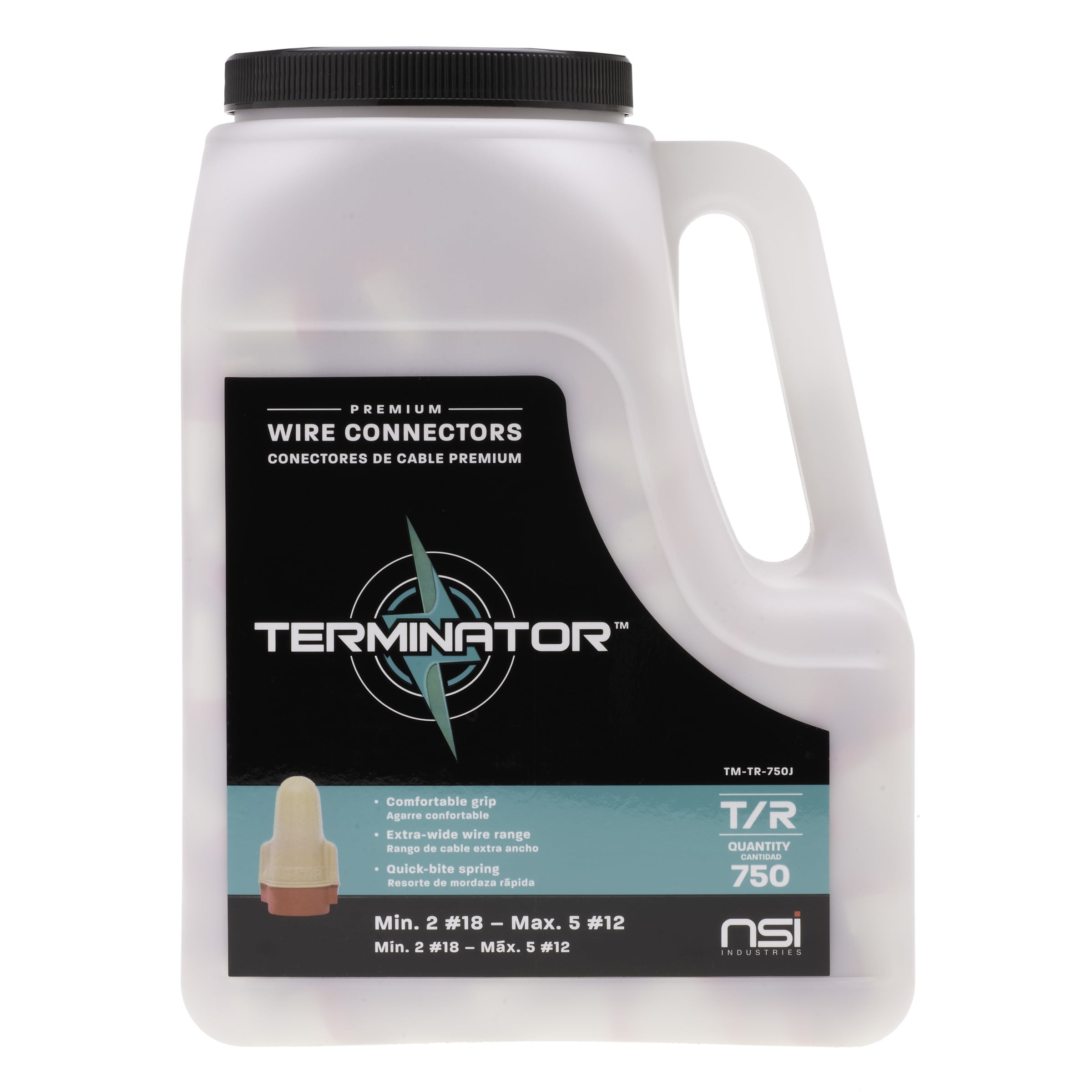

Nsi Tm-Tr-750J Terminator T/R Jar 750 Pack

Product Description

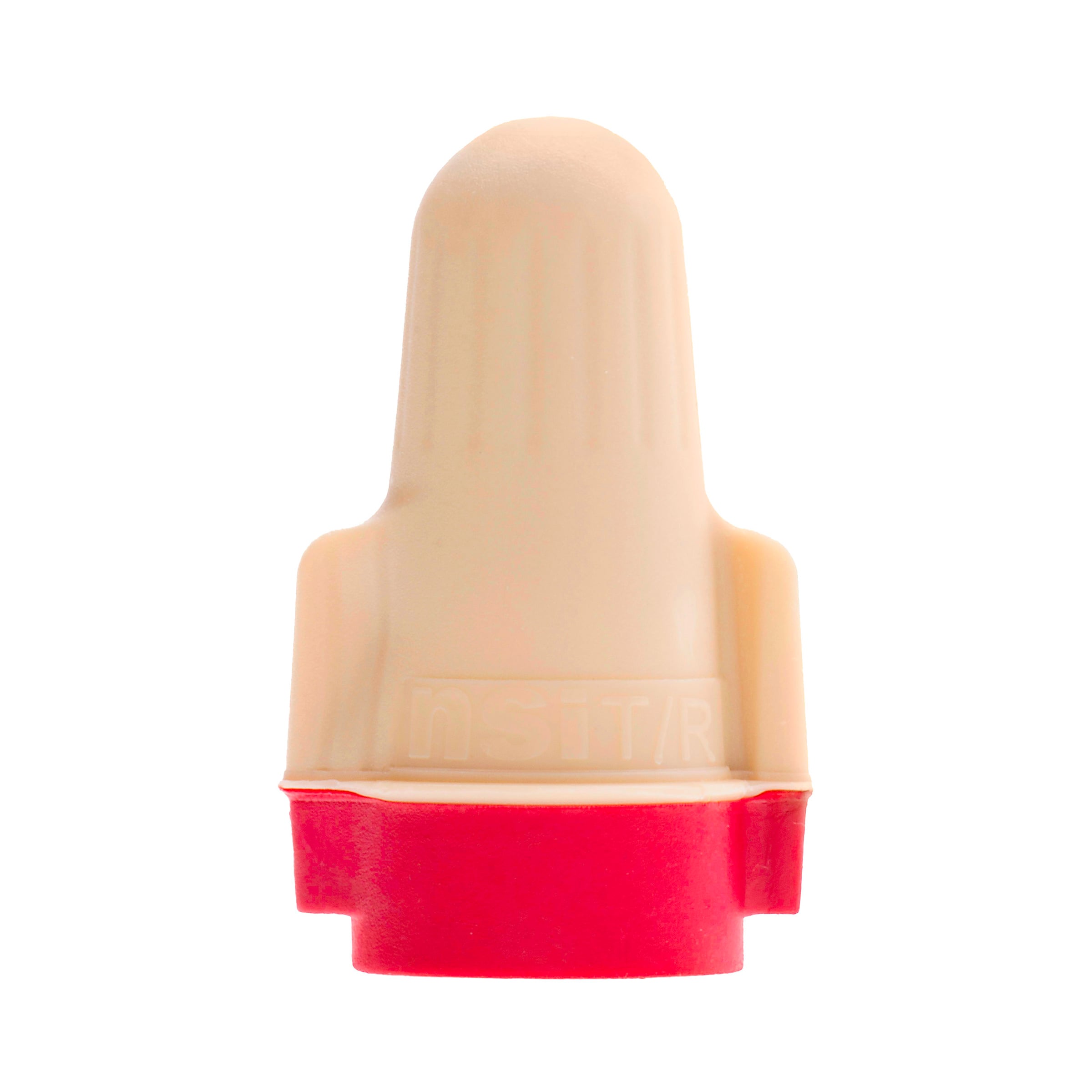

The NSI INDUSTRIES TM-TR-750J Terminator premium wire connectors with steel springs are rated for copper wire in the 18-12 AWG range. The dual color coding means one premium wire connector does the job of two standard connectors in most applications. They are perfect for securely joining wires in residential or commercial applications.

• Premium Wire Connectors
• Steel Springs
• Rated for copper wire in 18-12 AWG Wire Range

Product Highlights

These high-quality bicolor connectors are perfect for residential or commercial applications. The flexible skirt covers over-strips and protects against wire exposure.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: TM-TR-750J
• Country of Origin: TW

Technical Specifications

• GTiN: 00662381003447
• Size: H=1.205 - W=.730 IN
• Type: Tan/Red
• Brand: NSI Industries
• Color: Red, Tan
• Finish: Thermoplastic
• Voltage: 600 Volt
• Material: Thermoplastic
• Sub Brand: Terminator
• Wire Type: Copper
• Product UPC: 66238100344
• 12-Digit UPC: 662381003447
• Applications: Splicing Wire
• Temperature Rating: 105 C
• Environmental Conditions: 105 C
• Voltage Rating: 600V
• Pack Qty: 750
• UPC: 662381003447
• EAN: 0662381003447
• UNSPSC: 39121445
• Ul Standard: UL 486C
• Wire Range: 18 AWG – 12 AWG
• Application: Connect wires
• Product Category: Twist-On Wire Connectors
• Product Group (L2): Wire Connectors and Terminals
• Product Line (L4): Dual-Color Winged Wire Connectors
• Product Number: TM-TR-750J
• UL File #: E155027
• Pack Type: Pack
• Pack Size: 750
• Pack Quantity: 750
• Product Length (IN): 1.17
• Product Width (IN): 0.76
• Voltage Rating (AC): 18 AWG - 12 AWG
• Wire Range - COMM: Copper Wire Only
• Stud/Terminal Size: 105C (221F)
• Product Group: Wire Connectors and Terminals
• Product Line: Dual-Color Winged Wire Connectors
• Product Series: TM
• Additional Title: TERMINATOR TM-TR-750J Tan/Red Premium Wire Connector, 750pc
• Pack Width: 5
• Pack Length: 7.85
• Pack Height: 10.6
• Case Height: 11.75
• Case Length: 21
• Case Width: 16.9
• Max Temperature (C): 105
• Max Temperature (F): 221
• Min Installation Temperature (C): 105
• Min Installation Temperature (F): 221
• Conductor Range: Min 2 #18 to Max 5 #12
• Short Description: POLTM-TR-750J TERMINATOR T/R JAR 750PC NSI
• Special Features: Flexible Skirt covers over strip and conforms to fit into tight spaces - Fixed precise square wire spring provides secure gripping of conductors - Flame retardant UL 94V-2 thermoplastic shell provides excellent electrical insulation - Zinc-plated spring for low contact resistance
• Temperature Rating, Maximum: 221
• Temperature Rating, Minimum: 221
• Warranty: 1 Year
• MPN: TM-TR-750J
