NSI TBS2-2 Splicer Reducer 600 VAC 14 to 2 AWG

Product Description

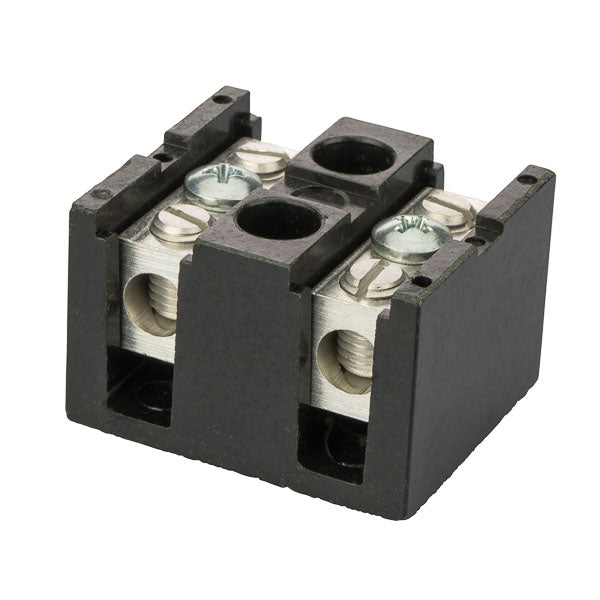

The NSI TBS2-2 is a splicer reducer designed for electrical connections. This component supports 2-pole, 4-terminal configurations and is suitable for both aluminum and copper conductors. The product handles a conductor size ranging from fourteen to two AWG and is rated for six hundred volts AC. The NSI TBS2-2 is made from thermoplastic, ensuring durability and reliable performance in various applications.

• Accepts both aluminum and copper conductors
• Rated for 600 VAC and 75 A
• Mounting hole measures 0.17 inches

Product Highlights

The NSI TBS2-2 features high conductivity bodies for optimal electrical performance. Its design allows for easy installation in wiring setups, making it a vital component for electricians and contractors.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Material: Thermoplastic

Technical Specifications

• Series: TBS Series
• Conductor Size: 14 to 2 AWG
• Voltage Rating: 600 VAC
• Current Rating: 75 A
• Temperature Rating: 150 deg C
• Dimensions: 1-3/4 in L x 1-1/2 in W x 1-1/4 in H
• Type: 2-Pole 4-Terminal
• Mounting Hole Size: 0.17 in
