NSI TB3096-10 Double Row Terminal Block Strip 600 VAC 30 A 22 to 14 AWG Wire

Product Description

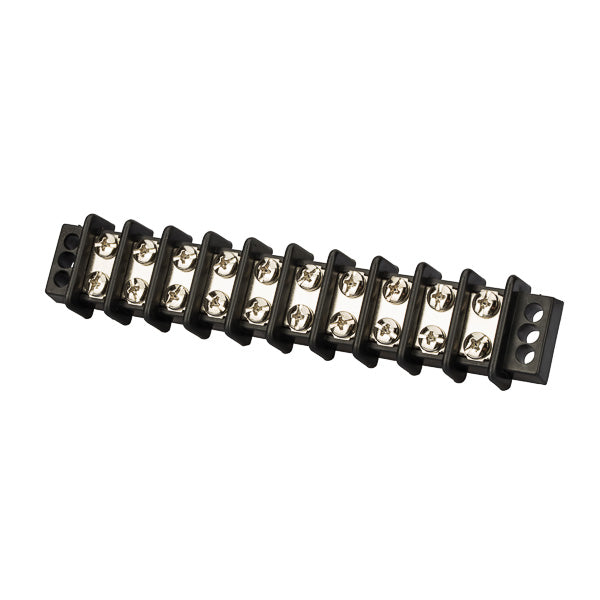

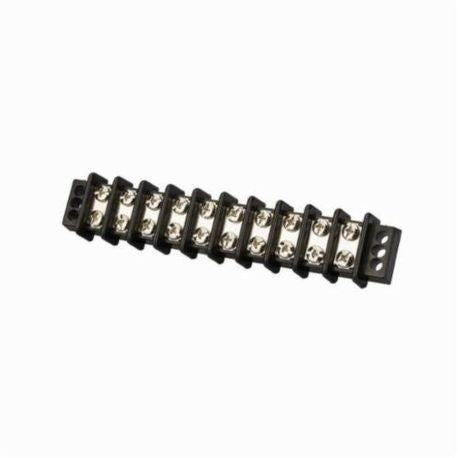

The NSI Terminal Bloks™ TB3096-10 is a double row terminal block strip designed for reliable electrical connections. This product operates at a voltage rating of six hundred volts alternating current (VAC) and supports a maximum amperage of thirty amps. It accommodates wire sizes ranging from twenty-two to fourteen American Wire Gauge (AWG). The product features ten terminals with a center spacing of nine sixteenths inches and is mounted using a #8 screw. The construction is made of glass-filled polyester, providing durability in various applications.

• Double row configuration with ten terminals
• Compatible with 22 to 14 AWG wire sizes
• Surface mounting with a #8 screw

Product Highlights

Ideal for use in electrical systems where multiple terminations are required, this terminal block strip is designed for easy installation and high performance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Wire Size: 22 to 14 AWG
• Center Spacing: 9/16 in
• Dimensions: 6.62 in L x 1.93 in W x 0.687 in H
• Material: Glass Filled Polyester
• Mounting Type: Surface
• Number of Terminals: 10
• Screw Size: #8
• Series: TB Series
• Temperature Rating: 208 deg C
