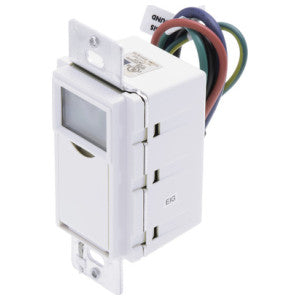

NSI SS703Z Astronomic Sunset In-Wall Timer Switch 120 - 277-Volt AC 7 Days Tork®

Product Description

The NSI SS703Z is an astronomic sunset in-wall timer switch designed for electrical efficiency and reliability. This timer switch operates at 120 to 277 volts AC and is rated for a maximum of 15 amps. It is built with an SPST contact configuration, ensuring high conductivity for your electrical projects.

• Adjustable for northern or southern latitudes
• Ten programmable ON/OFF settings available
• Suitable for various lighting and appliance applications

Product Highlights

This timer switch allows for a flexible schedule, delivering convenience to both residential and commercial users.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: SS703Z

Technical Specifications

• Temperature Rating: 32 to 104 deg F (0 to 40 deg C)
• Voltage Rating: 120 - 277 Volt AC
• Amperage Rating: 15 Amp
• Dimensions: 3 Inch Width x 5 Inch Height
• Contact Configuration: SPST
• Timing Range: 7 Days
• Conductor Size: 12-16 AWG
• Standards: cULus Certified
