Nsi SKAB-2 Easy Splice AL-CU Direct Burial Butt Splice Kit 8-2 AWG

Product Description

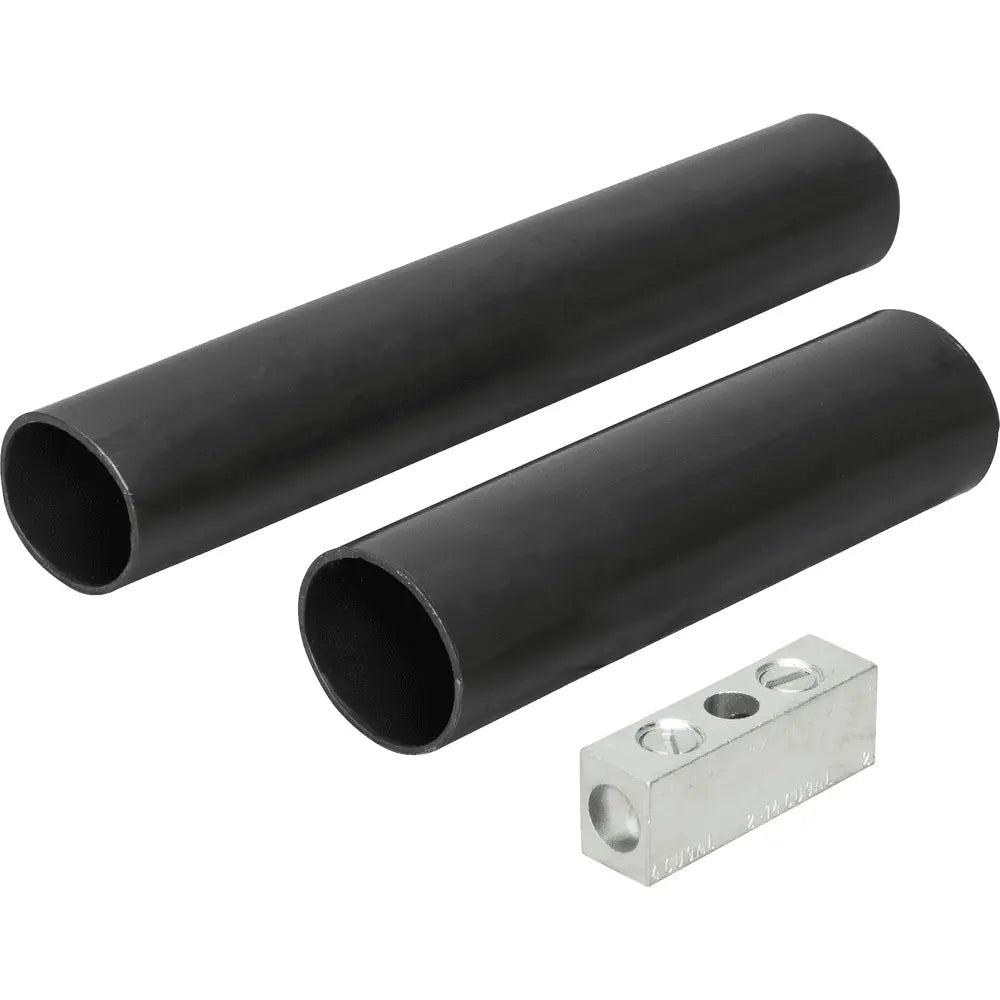

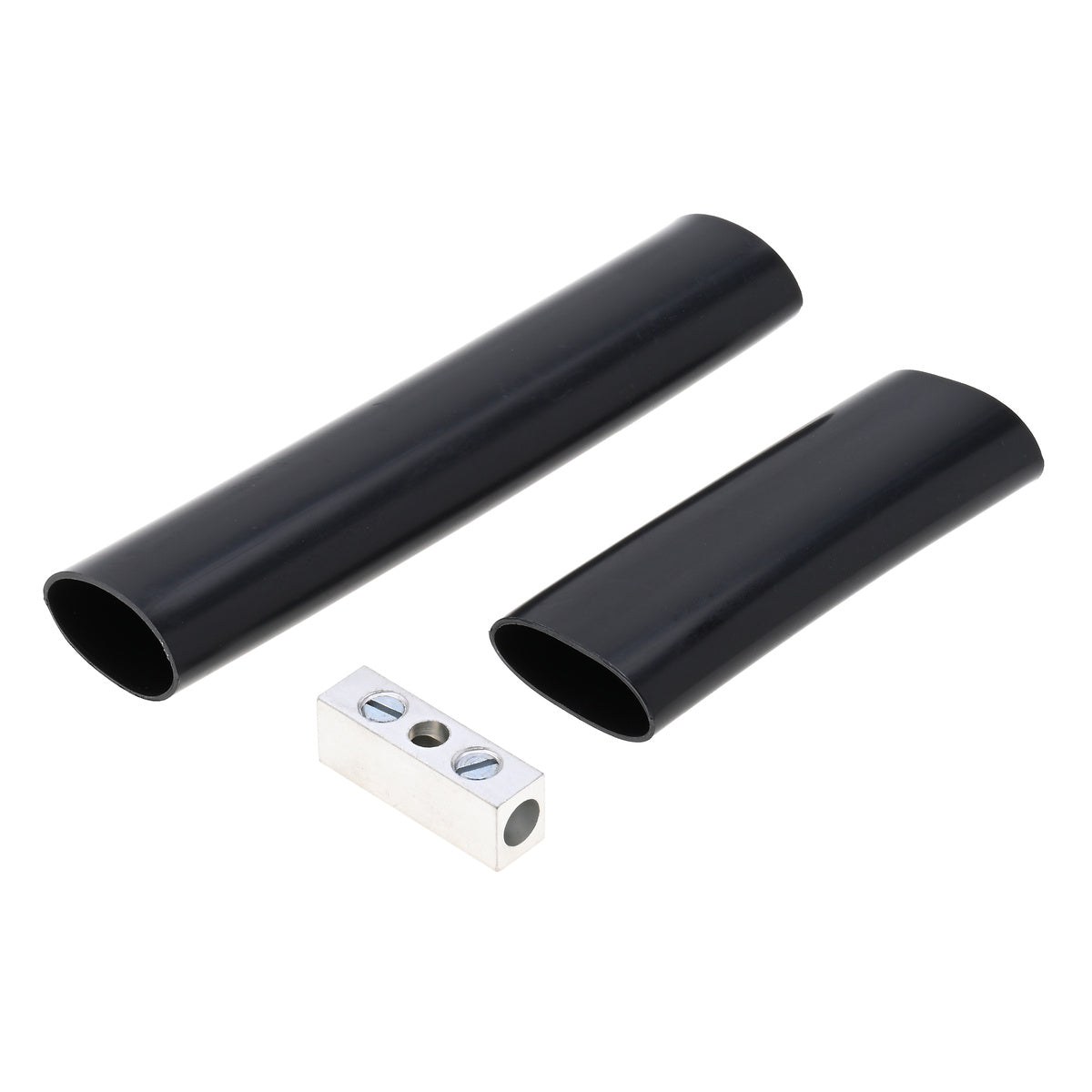

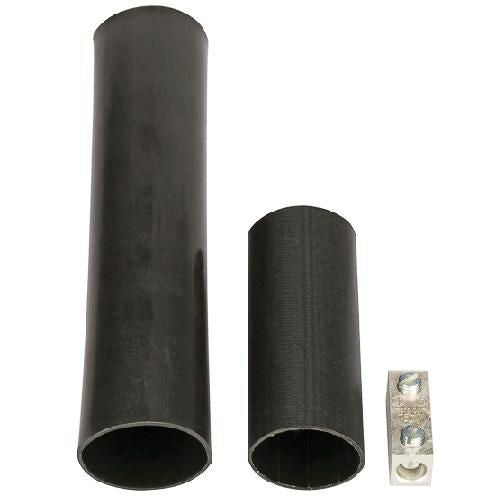

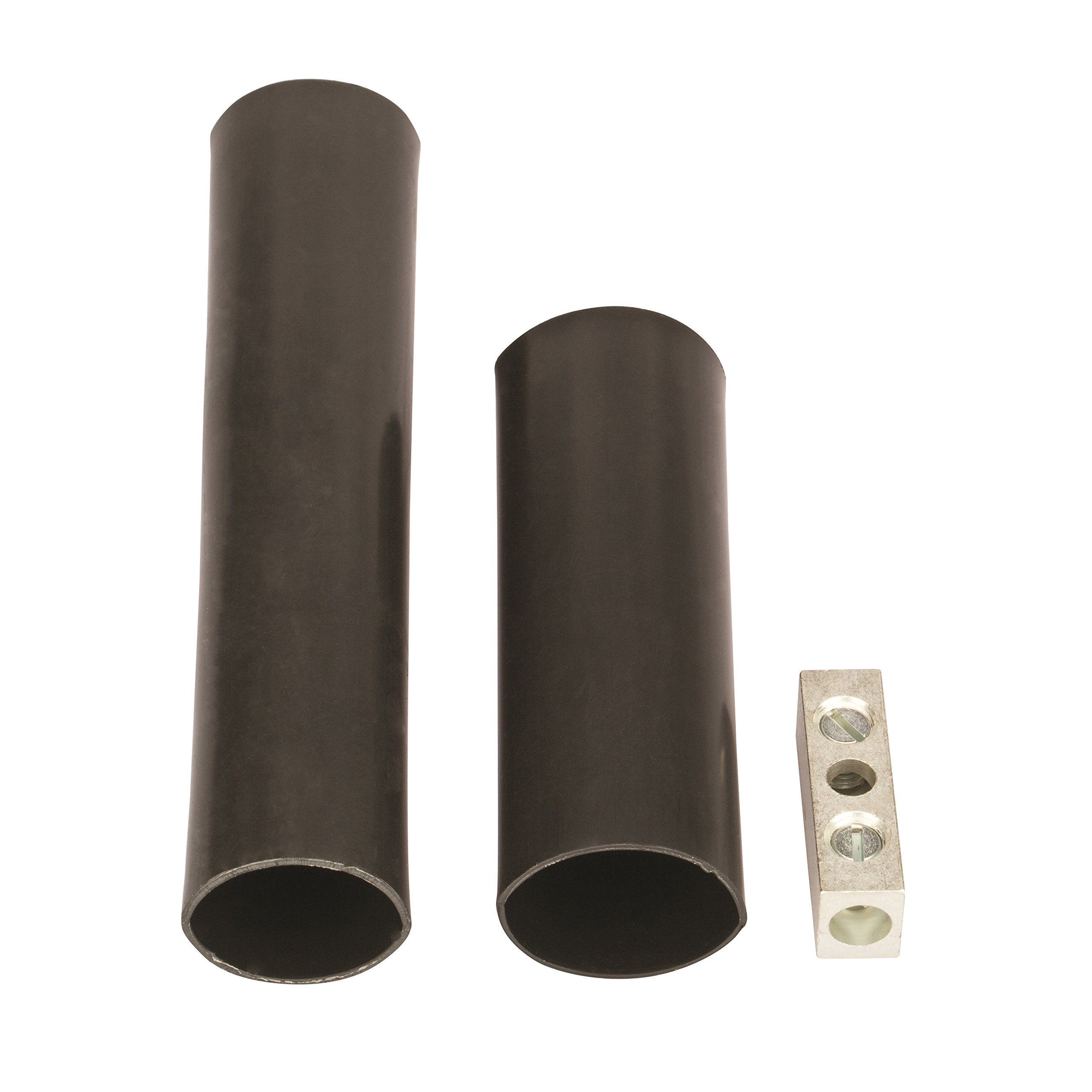

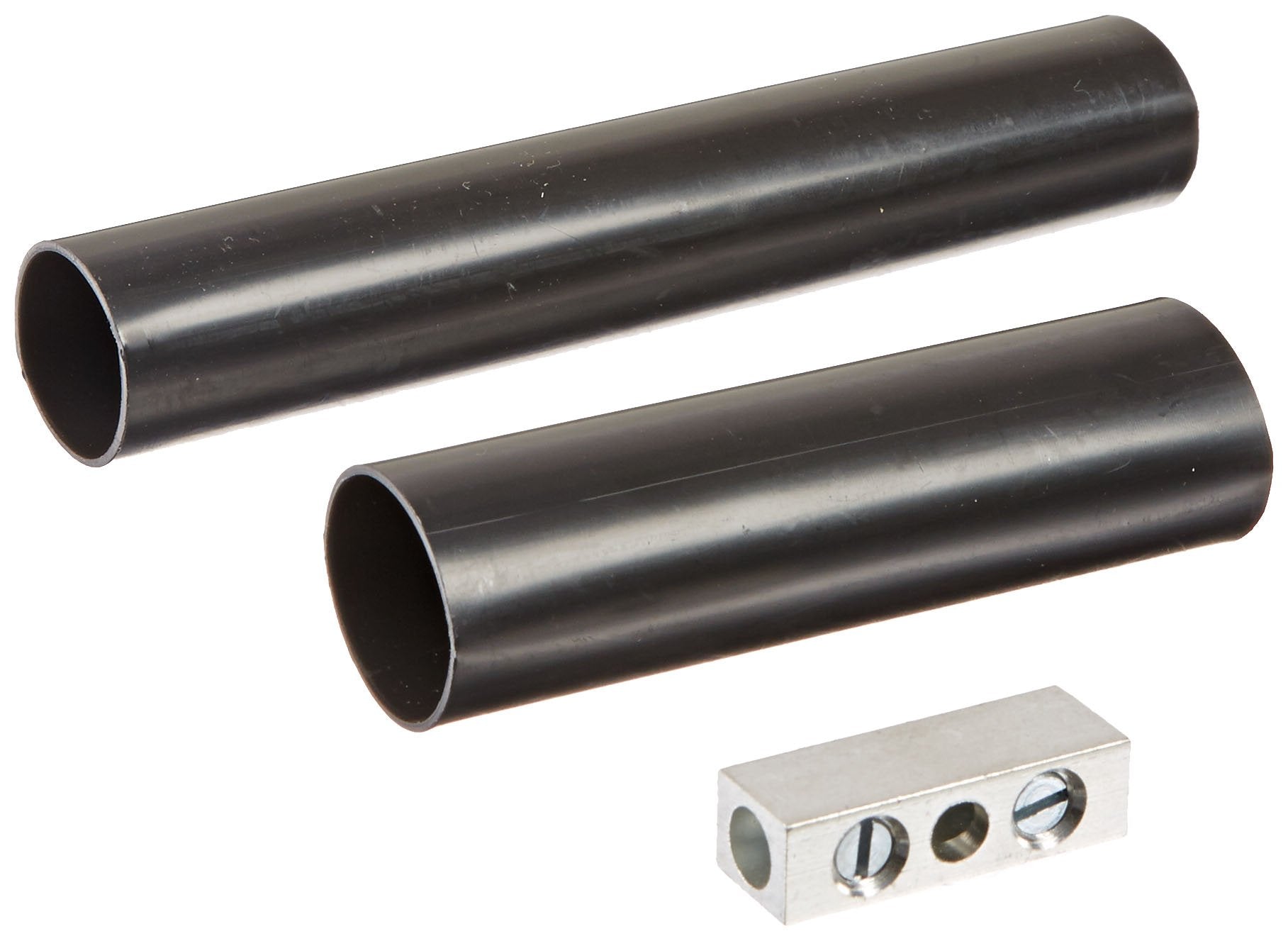

The NSI SKAB-2 2 Port Direct Burial Splice Kit can be used with copper and aluminum cable. It includes a heat shrink tubing for an insulated splice and has a wire size of 8-2 AWG. This kit creates an insulated splice for copper and/or aluminum cables.

• Dual-rated for use with aluminum and copper conductors
• Includes heat shrink tubing for an insulated splice
• UL Listed

Product Highlights

The NSI SKAB-2 splice kit is for direct burial applications and submersible. It utilizes a mechanical dual-rated splice and matched heavy wall heat shrink tubing.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: SKAB-2
• Country of Origin: IN

Technical Specifications

• Type: Direct Burial Splice Kits
• Color: Black
• Width: 1.05 Inches
• Height: 1.05 Inches
• Length: 6 Inches
• Standard: UL Listed
• Insulated: No
• Cable Size: 8 to 2 AWG
• Voltage Rating: 600 VAC
• Operating Temperature: -40°F to 194°F
• Cable Type: Class A-B
• Connector Type: Butt
• Number of Conductors: 2
• Series: SK Series
• Temperature Rating: -40 to 90 deg C
• Conductor Size: 8 to 2 AWG
• Insulator Type: Heat Shrink Tube
• Contents: Heavy Wall Heat Shrink Tube, Connector
• Approval: UL
• Number of Cables: 2
• Wire Size: 8-2 AWG
• Application: For Splicing Wires
