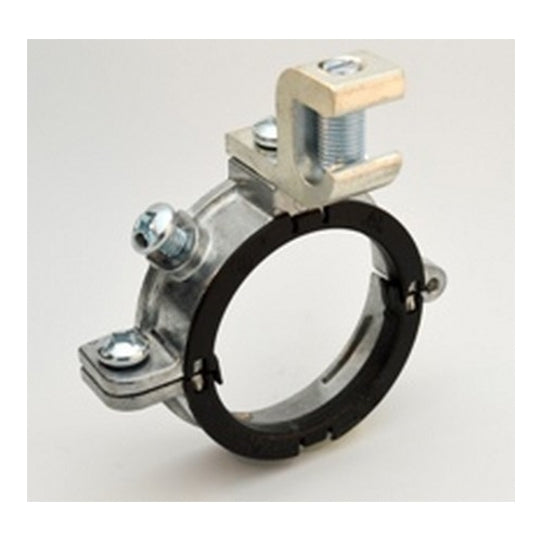

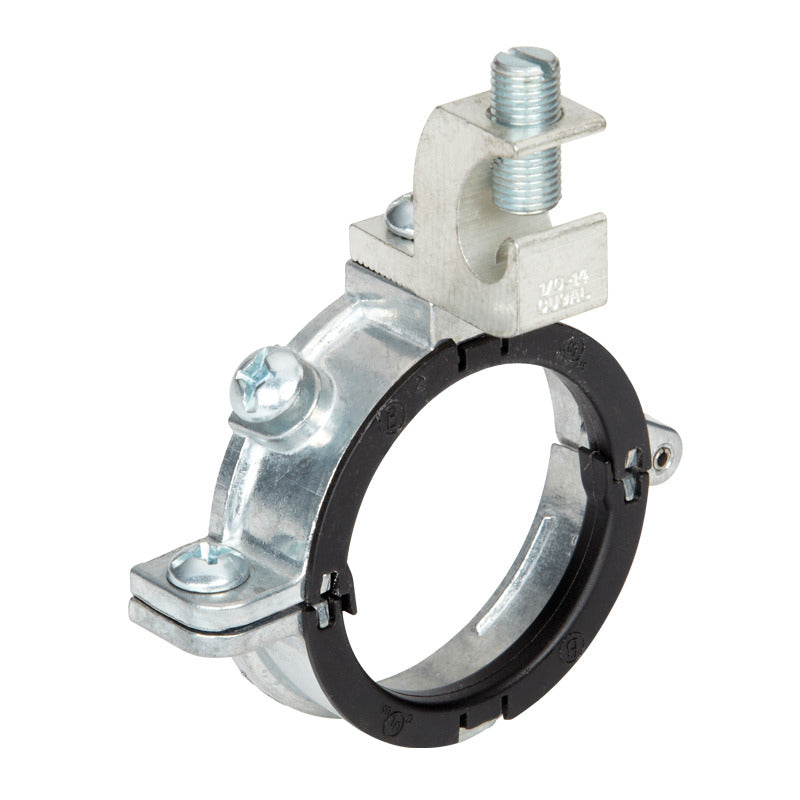

Nsi SGB-385CL Insulated Split Grounding Bushing 1-1/2 inches

Product Description

The NSI SGB-385CL insulated split grounding bushing is used to install bushings to 1-1/2" rigid or IMC conduit or EMT fittings before or after wire pull-through. It features a tin-plated aluminum alloy 6061-T6 grounding lug and a UV-stabilized nylon insulator lining to prevent damage to the wire.

• Eco-Friendly: The byproducts of zinc casting can be melted down and recast to make new metals without property degradation
• Grounded & Insulated: The tin-plated aluminum alloy 6061-T6 grounding lug provides maximum precipitation hardening and the UV-stabilized nylon insulator lining prevents damage to the wire
• Might-Rite® Patented Design: The Might-Rite split design, available with stainless steel hardware and UV-stabilized insulators, makes positioning easy to save time and money on expensive rework

Product Highlights

This grounding bushing features a grounding lug wire capacity of #4 - #1/0, UV stabilized insulators, and stainless steel hardware.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: SGB-385CL
• Country of Origin: China

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished Mirror Smooth
• Color: Grey with Black Insulator
• Pack Qty: 200
• GTIN: 00781747903853
• UPC: 781747903853
• EAN: 0781747903853
• UNSPSC: 39121312
• ECCN: EAR99
• Application: Used in situations where wires have already been pulled through Rigid/IMC conduit, and an insulated bushing is required. Grounding lug; aluminum alloy 6061-T6. Rated 150 Degree C. cULus listed. Patented. Now featuring UV Stabilized Insulators and Stainless Steel Hardware, perfect for solar and other outdoor installations!
• Use With: Rigid/IMC Conduit
• Lug Capacity: 4 to 1/0 AWG
• Lug Type: Aluminum
• Temperature Rating: 150 Degrees C
• Trade Size: 1.5 IN
• Special Features: Grounding Lug Wire Capacity # 4 - #1/0
• Standard: cULus
• Item Type: Split
• Size: 1-1/2
