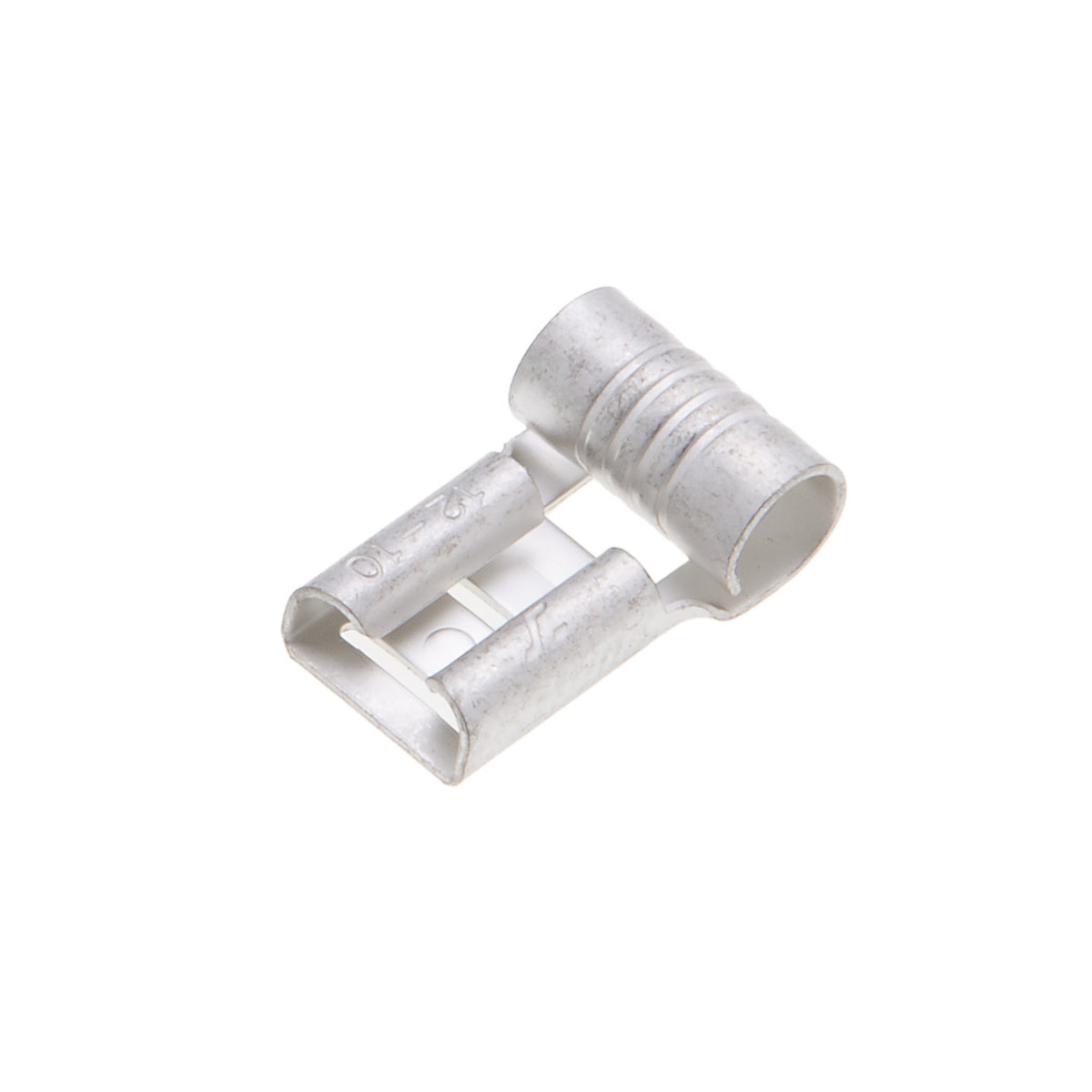

NSI SF12-250-3-S Wire Terminal Female Flag Bare 12-10 Awg .250 X .032

Product Description

The NSI Industries SF12-250-3-S is a bare female flag terminal designed for wire connections in electrical applications. It accepts conductors from twelve to ten AWG and features tab dimensions of 0.25 inches by 0.032 inches. Sold in packs of fifteen, this terminal is suitable for various wire termination duties.

• Non-insulated female flag design
• Constructed from copper with electro-plated tin finish
• Rated for up to 600 volts and 105 degrees Celsius

Product Highlights

This terminal provides reliable connections and improved retention due to its turned-up edges.

Product Information

Standard Information

• Manufacturer: NSI INDUSTRIES INC
• Series: SF Series

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Tab Size: 0.25 x 0.032 in
• Voltage Rating: 600 V
• Temperature Rating: 105 degrees Celsius
• Material: Copper
• Finish: Electro-Plated Tin
• Dimensions: 0.582 in L x 0.259 in W
• Specifications: 1-Terminal
