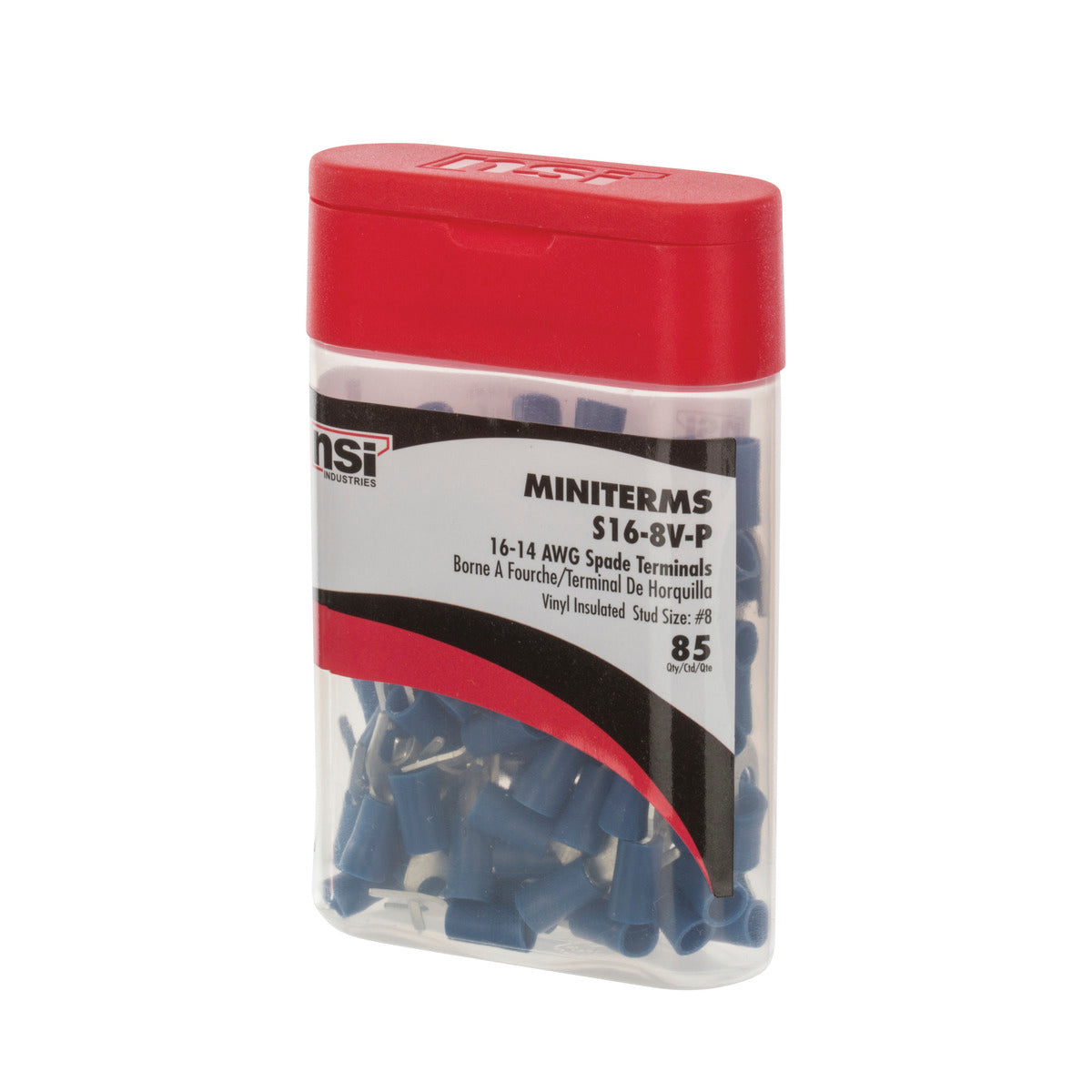

Nsi S16-8V 16-14 Vinyl Spade #8 Stud 85Pc. PRO Pack

Product Description

The NSI S16-8V is a vinyl spade designed for 16-14 AWG copper wire and features a #8 stud size. It has a tin-plated copper barrel for crimp termination in control and machine wiring. The terminal is suitable for use on free-standing studs and wire termination applications.

• Voltage Rating: 300V
• Made of copper with tin plating
• Open tongue end for rapid insertion on the mounting screw

Product Highlights

Insulated vinyl spade terminal for secure wire termination.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: S16-8V
• Country of Origin: US

Technical Specifications

• Voltage Rating: 300V
• Material: Copper
• Finish: Tin Plated
• Stud Terminal Size: #8
• Wire Range: 16 AWG – 14 AWG
• Insulation Type: Partially Insulated
• UNSPSC Code: 39121432
• Brand: NSI TORK
• Category: Fork Terminals
• Color: Blue
• Size: 16-14awg #8
• Barrel Type: Butted Seam
• Series: S Series
• Temperature Rating: 75 deg C
• Tongue Type: Spade
• Type: Insulated
• Application: For used on free standing studs and wire termination applications
• Standard & Approvals: cULus Listed, KM Approved
• 1-Terminal Vinyl Insulation: 0.255 in L Center to Barrel
• Catalog ID: NSIS16-8V-S
• Barrel Size: 0.09 in ID x 0.177 in OD x 0.393 in L
• Length: 1.103 in
• Tongue Size: 0.388 in W
