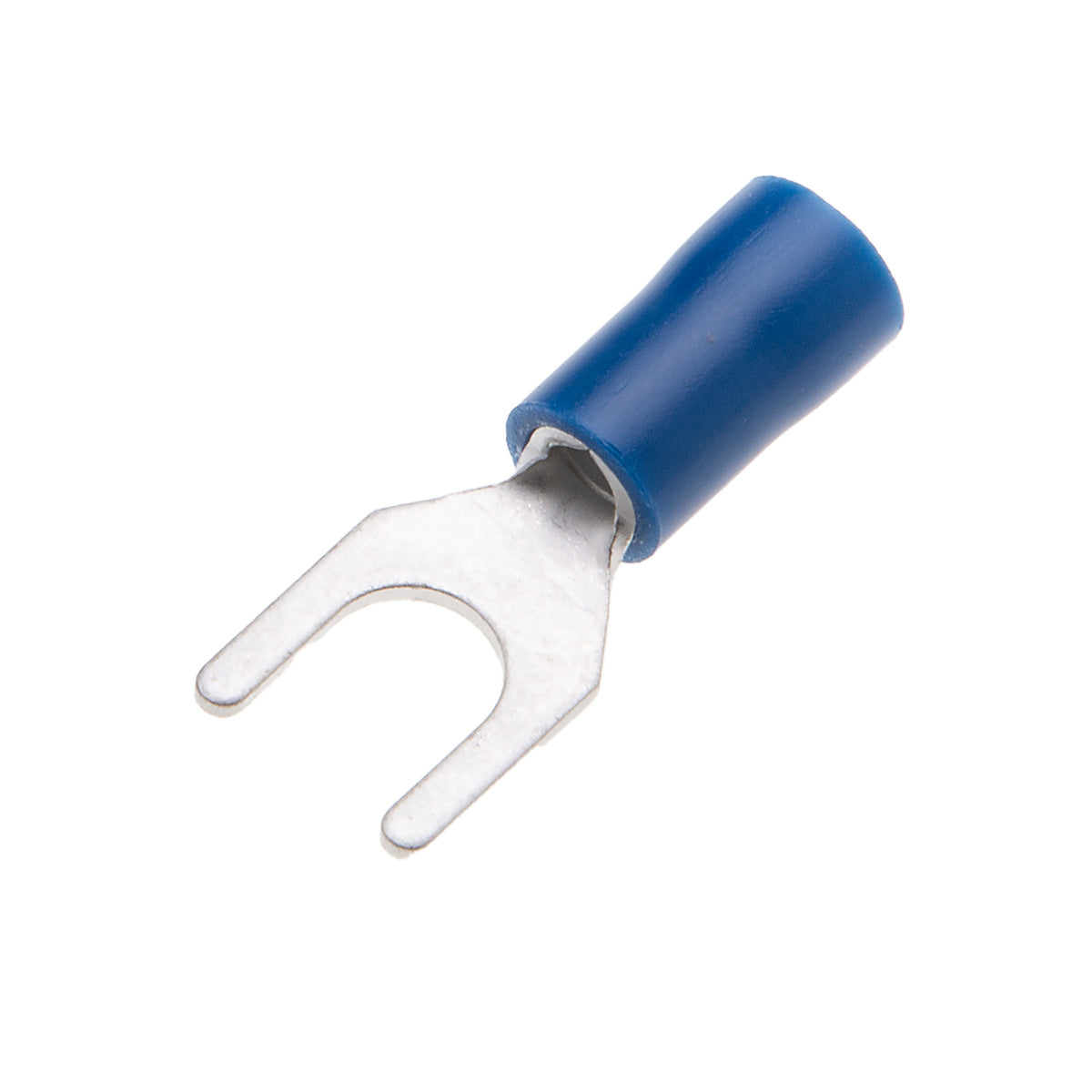

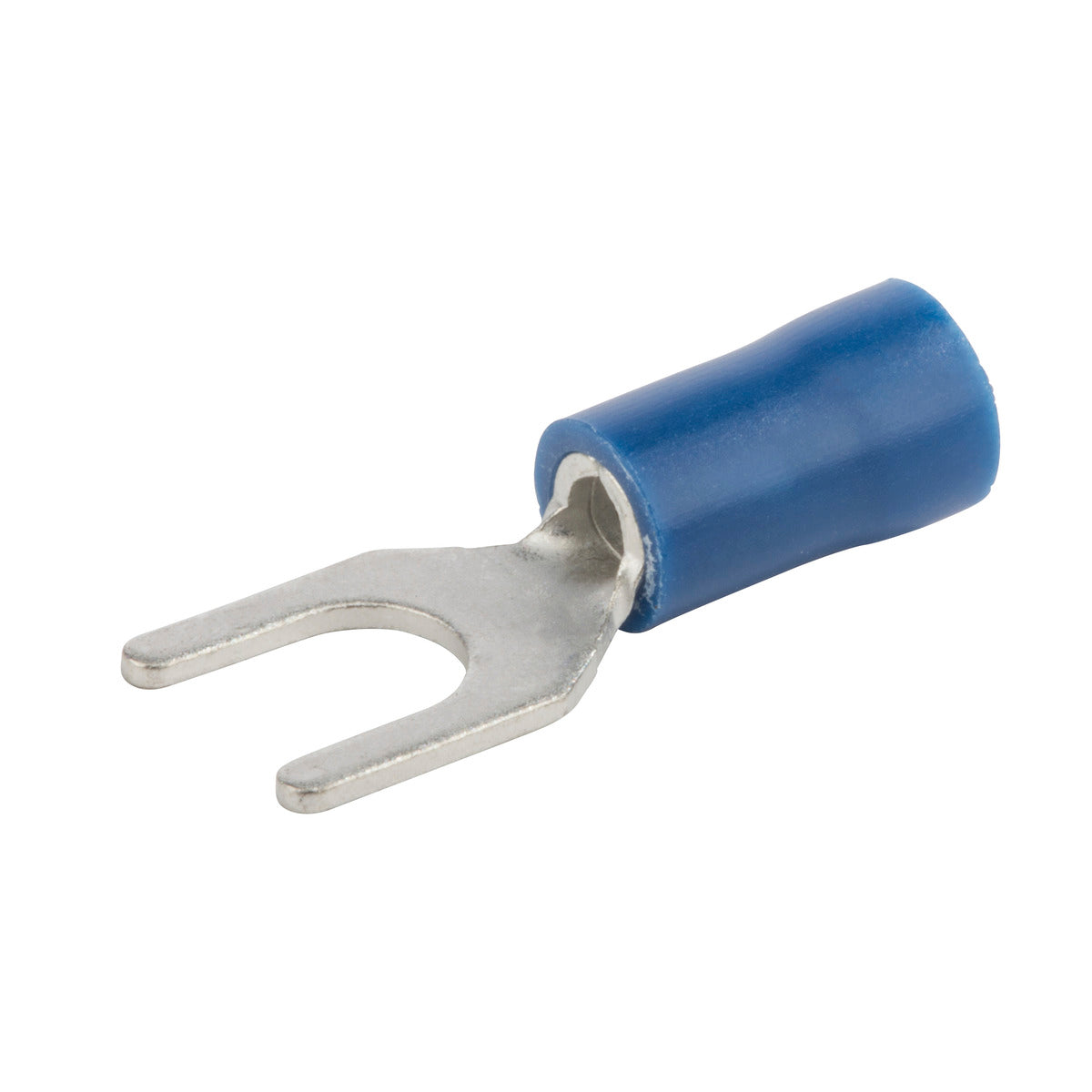

Nsi S16-10V vinyl spade #10 stud

Product Description

The NSI S16-10V vinyl spade is a reliable terminal for wire termination. Constructed from copper with tin plating, this spade terminal ensures a secure electrical connection. It is designed for 16 AWG to 14 AWG wire and has a voltage rating of 300V.

• Open tongue end for rapid insertion on the mounting screw
• Typically used on free standing studs
• Vinyl Insulation

Product Highlights

The NSI S16-10V spade terminal is ideal for various electrical applications, providing a secure and efficient wire termination solution.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: S16-10V

Technical Specifications

• Voltage Rating: 300 VAC
• Material: Copper
• Finish: Electro-Tin Plated
• Pack Qty: 20
• Stud Terminal Size: #10
• Wire Range: 16 AWG – 14 AWG
• Insulation Type: Partially Insulated
• Length: 0.966 in
• Series: S Series
• Stud Size: #10
• Temperature Rating: 75 deg C
• Tongue Size: 0.362 in W
• Standard & Approvals: cULus Listed
• Conductor Size: 16 to 14 AWG
• Application: For Wire Termination
• Color: Blue
