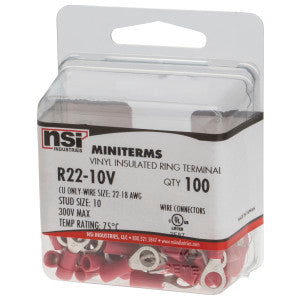

Nsi R22-10V Vinyl Insulated Ring #10 Stud, 100 Per Pack

Product Description

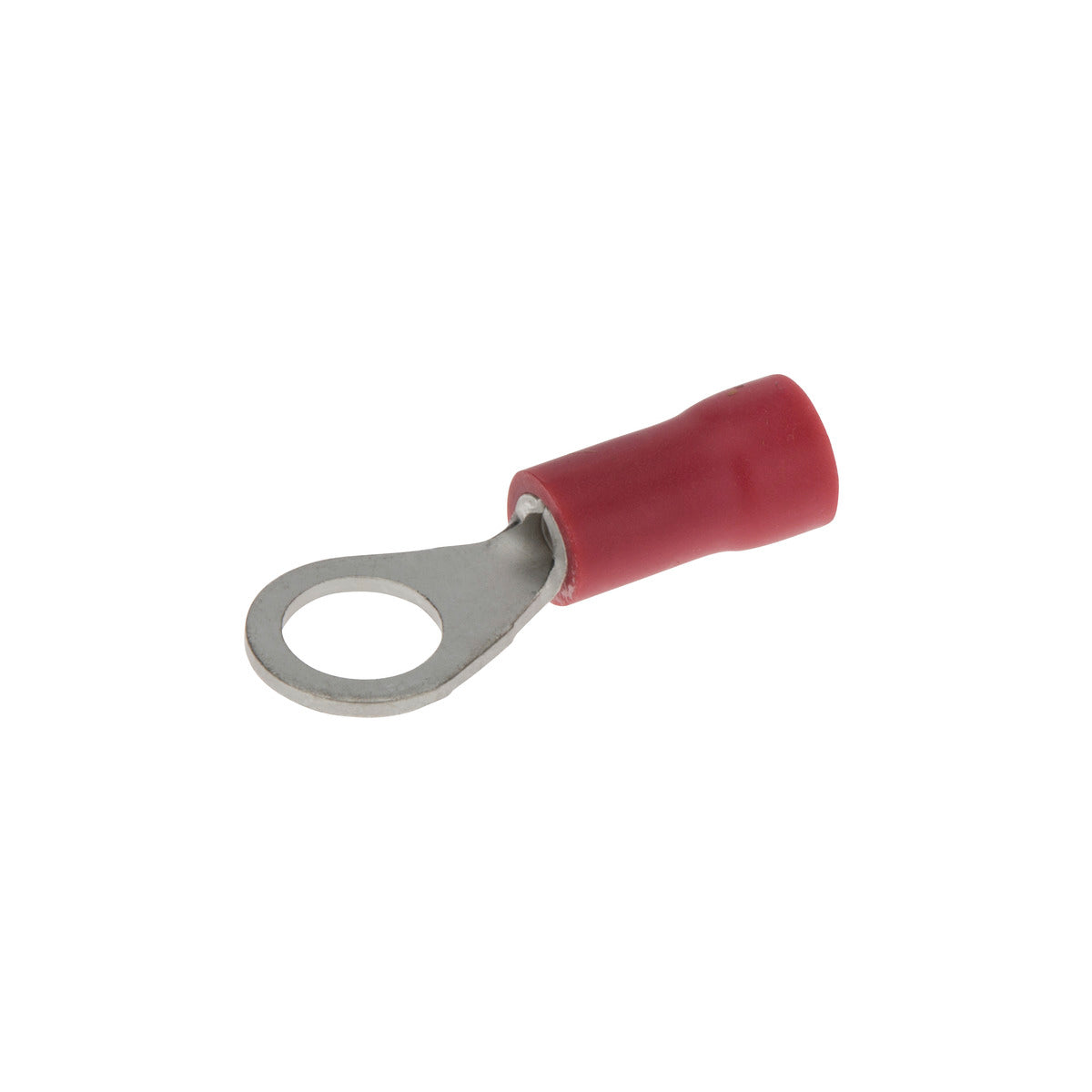

The NSI R22-10V is a vinyl insulated ring terminal designed for wire termination. It accommodates wire sizes ranging from 22 AWG to 16 AWG and features a #10 stud size. Constructed with a copper core and tin-plated finish, this ring terminal ensures a secure and reliable electrical connection. Each pack contains 100 terminals.

• Designed for wire termination
• Accommodates 22 AWG to 16 AWG wire
• Features a #10 stud size

Product Highlights

The NSI R22-10V ring terminal provides secure wire termination for various electrical applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: R22-10V
• Country of Origin: Taiwan

Technical Specifications

• Voltage Rating: 300V
• Material: Copper
• Finish: Tin Plated
• Color: Red
• Stud Terminal Size: #10
• Wire Range: 22 AWG – 16 AWG
• Insulation Type: Partially Insulated
• Series: R
• Application: Wire Termination
• Rated Voltage: 300V
• Color Family: Red
• Length: 0.82 inch
• Stud Size: #10
• Connector Width: 0.31 inch
• Brand: Nsi
• Type: Stud
• MPN: R22-10V-S
• Compatible Wire Gauge (AWG): 22 AWG – 16 AWG
• Country of Origin: Taiwan
