Nsi PTS4/0 Aluminum Pin Terminal, 4/0

Product Description

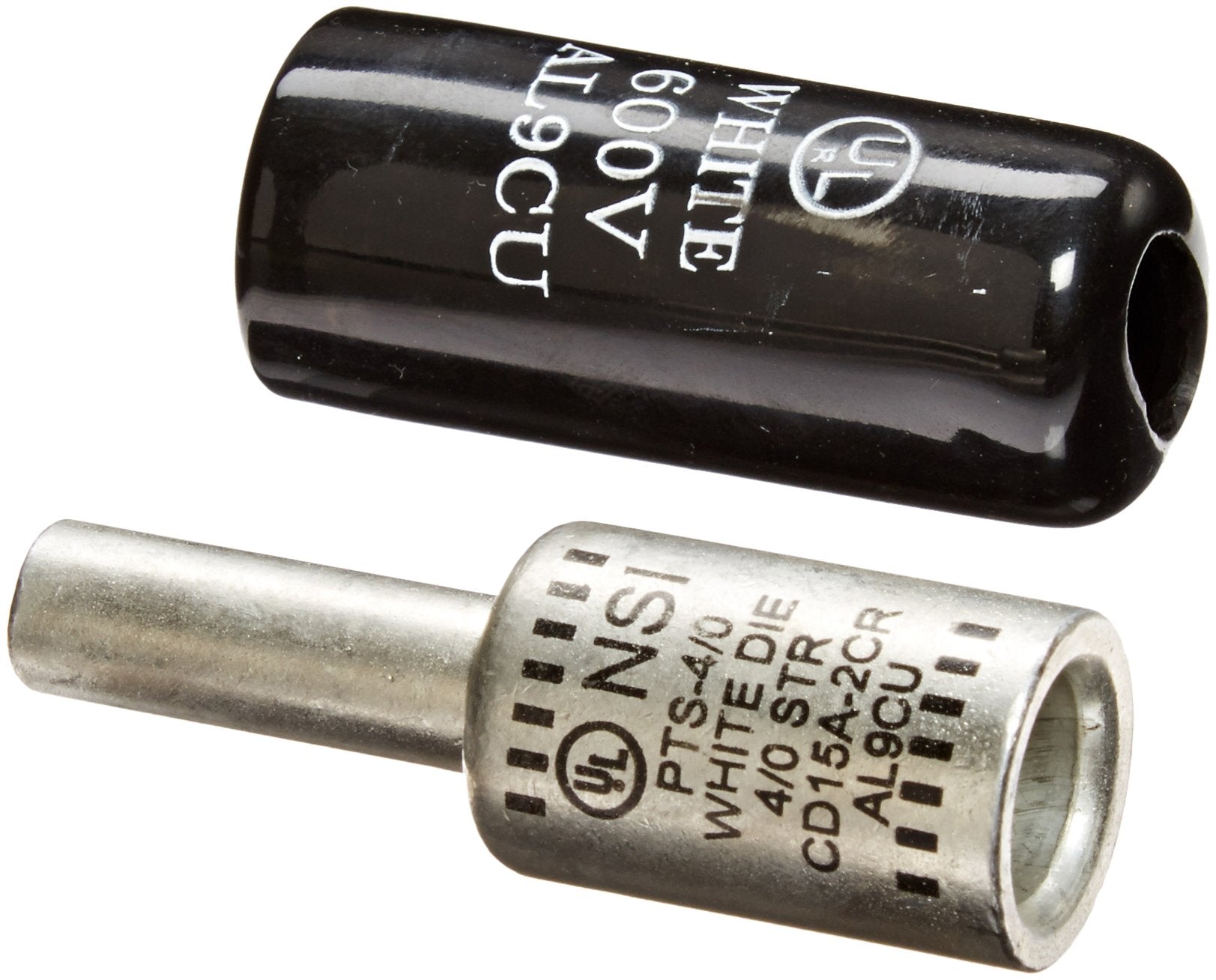

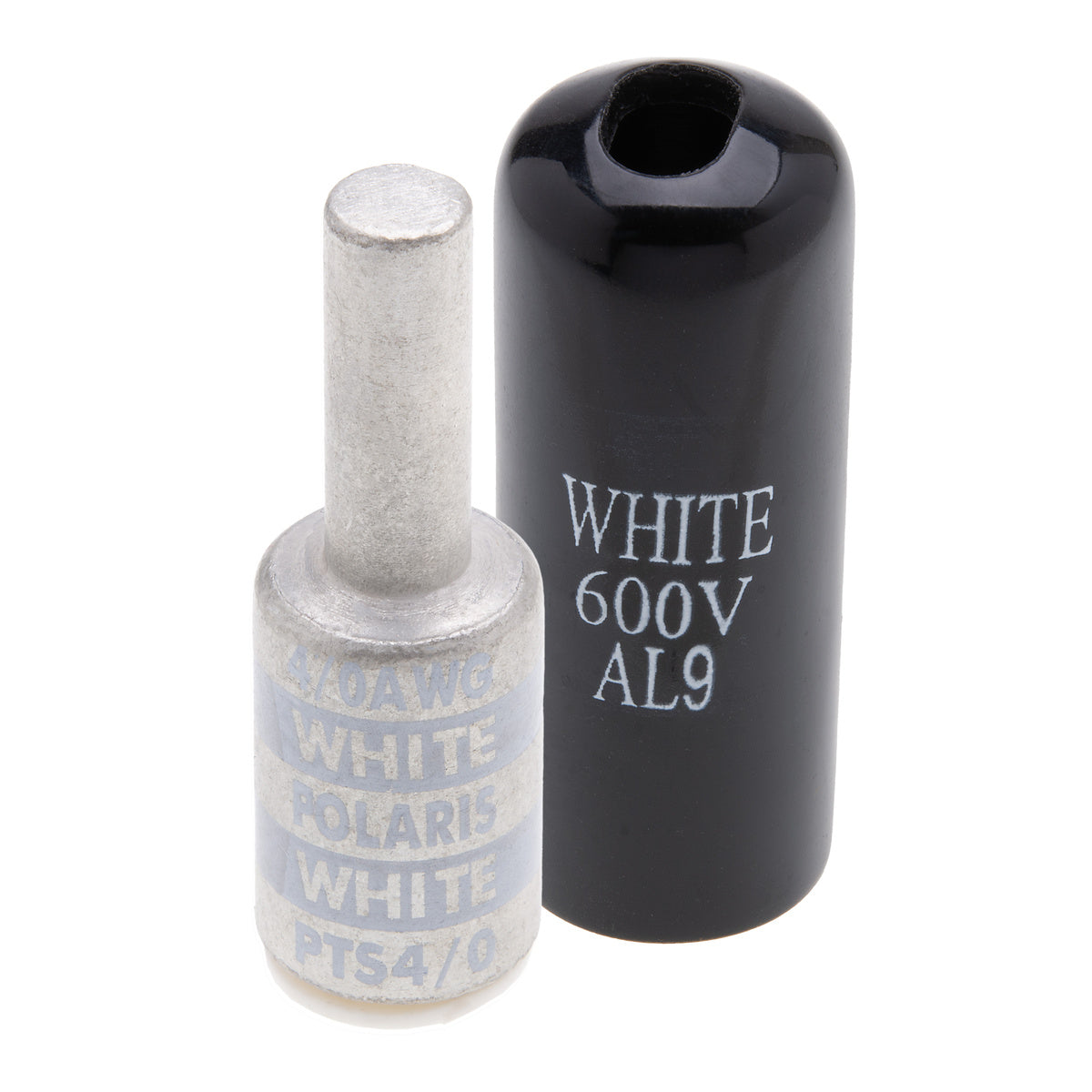

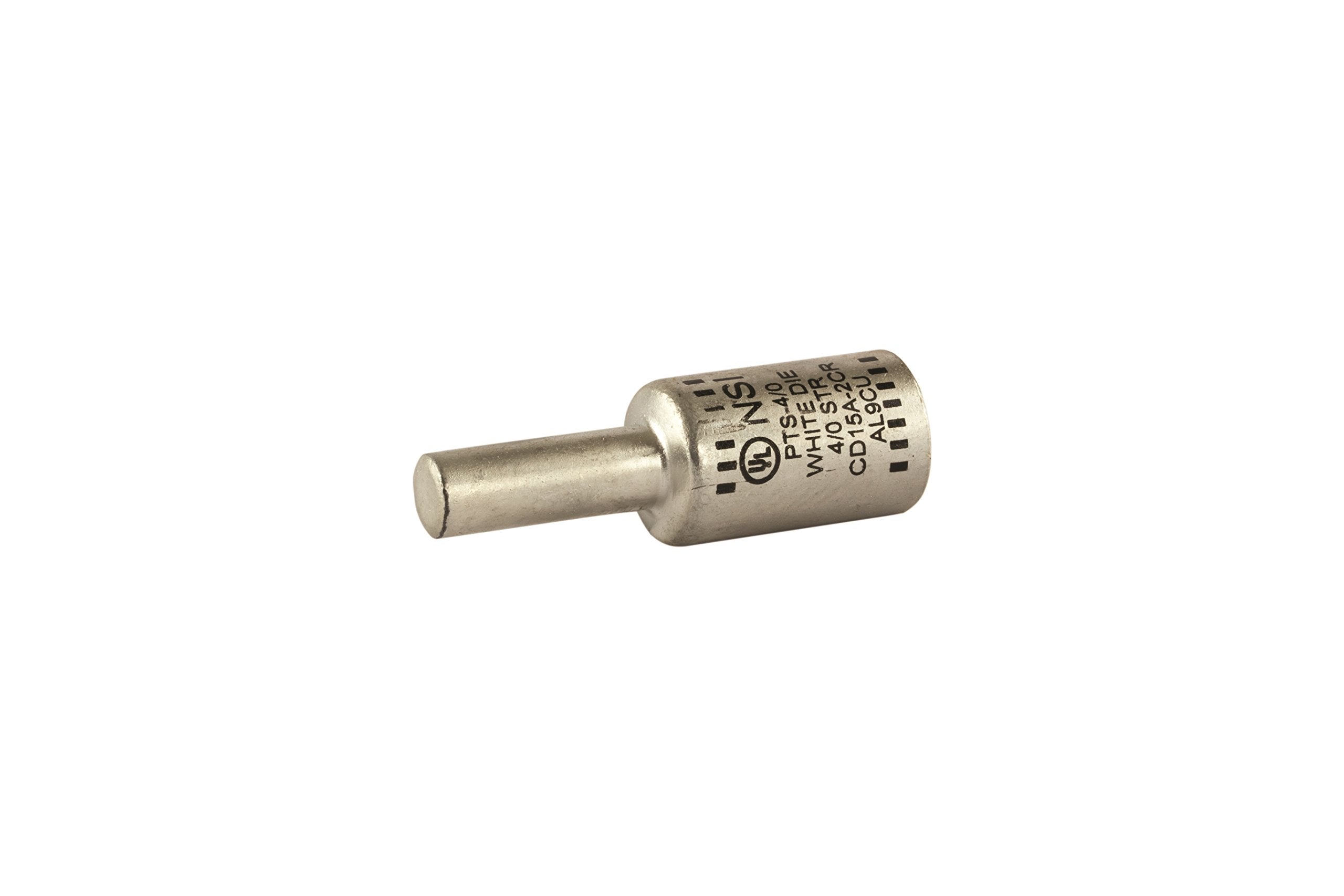

The NSI PTS4/0 is an all-aluminum pin terminal designed for termination of both aluminum and copper conductors. The pin is solid aluminum. The connector is tin plated to provide low contact resistance and oxidation protection. The connector is pre-filled with oxide Inhibitor and capped with a color-coded cap indicating the color of die to use. A cover is provided for quick installation.

• All-aluminum pin terminal
• Designed for termination of both aluminum and copper conductors
• Solid aluminum pin
• Tin plated connector for low contact resistance and oxidation protection
• Pre-filled with oxide Inhibitor

Product Highlights

This aluminum pin terminal is ideal for terminating aluminum and copper conductors, offering low contact resistance and oxidation protection.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: PTS4/0
• Country of Origin: IN

Technical Specifications

• Type: Ferrules and Pin Terminals
• Finish: Tin Plated
• Length: 2.59 Inches
• Diameter: 0.85 Inches
• Material: Aluminum
• Standard: UL
• Color Code: White
• Connection: Compression
• Insulation: Insulated
• Voltage Rating: 600 VAC
• Conductor Range: 4/0
• Number Of Poles: Single-Pole
• Temperature Rating: 194°F
• Number Of Conductors: 1
• Environmental Conditions: Dry Location
• Barrel Length: 1.37 in
• Series: PTS
• Conductor Size: 4/0 AWG
• Pin Diameter: 0.42 in
• Pin Length: 1.22 in
• Approval: UL 486A/B, UL (Canada and US)
• Inner Diameter: 0.535 Inch
• Outer Diameter: 0.85 Inch
• Application: Terminate, Splice, Tap Power Connectors
• Wire Cable Class: Class B, Class C
• Conductor Material: Aluminum/Copper
• Conductor Type: Copper, Aluminum
