NSI PTS3/0 Dual Rated Solid Pin Terminal 3/0 AWG

Product Description

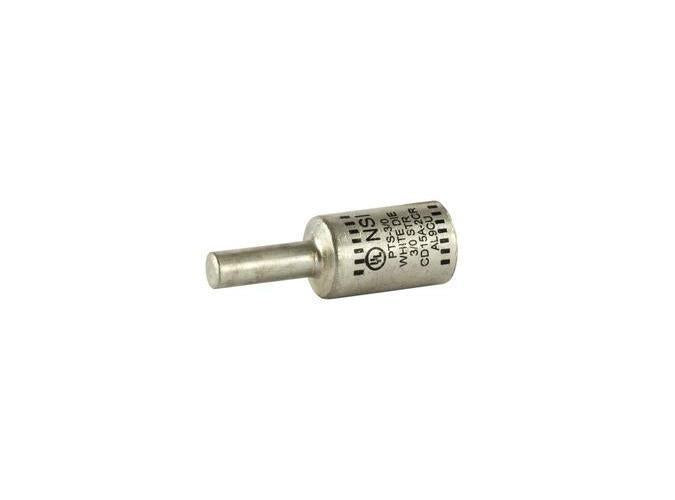

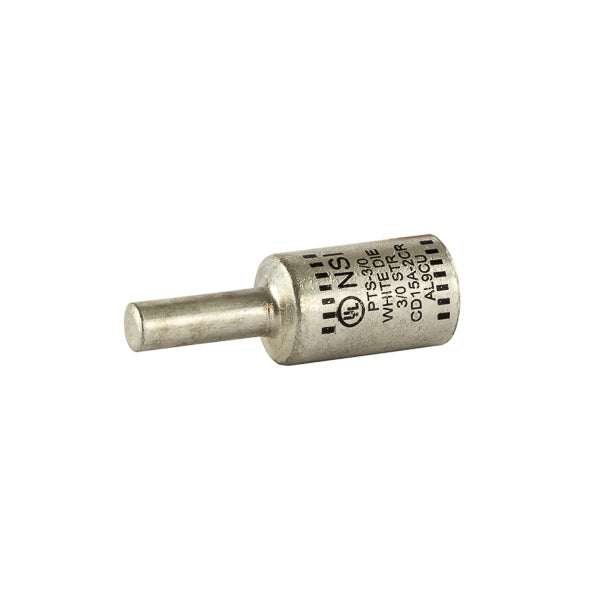

The NSI PTS3/0 is a dual rated solid pin terminal designed for 3/0 AWG conductors. This terminal features a pin diameter of 0.37 inches and a length of 1.22 inches, making it suitable for various applications in electrical systems. It is constructed from aluminum and has a voltage rating of 600 VAC. The terminal includes a plastisol cover for insulation and enhanced durability.

• Compatible with aluminum and copper conductors.
• Pre-filled with oxide inhibitor for protection.
• Designed for efficient termination.

Product Highlights

NSI PTS3/0 offers reliable performance in demanding electrical applications.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Type: Dual Rated
• Material: Aluminum
• Conductor Size: 3/0 AWG
• Pin Length: 1.22 in
• Pin Diameter: 0.37 in
• Barrel Length: 1.37 in
• Voltage Rating: 600 VAC
• Specifications: 90 deg C Temperature, 1 Pole, 1 Conductor
