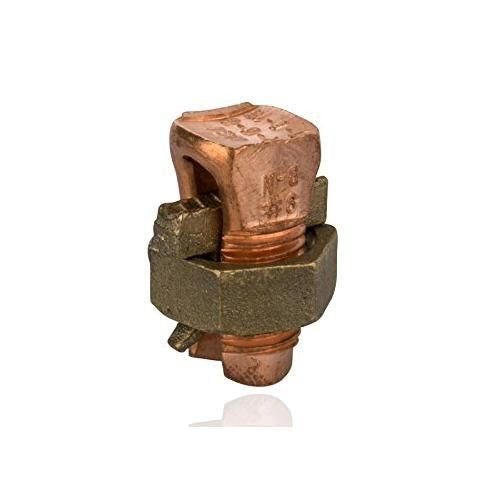

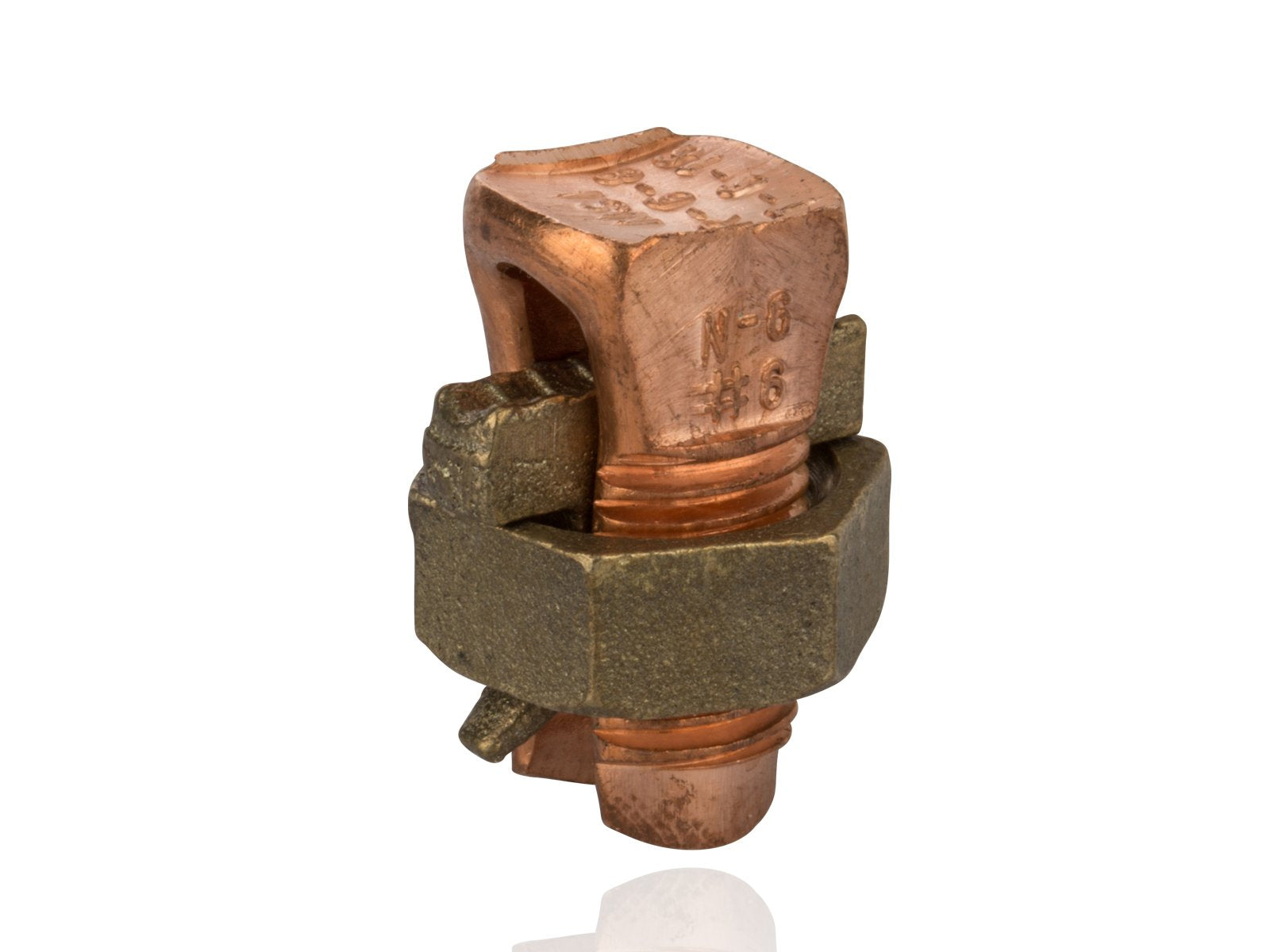

Nsi N-6 Split Bolt Connector 10 to 6 AWG

Product Description

The NSI N-6 split bolt connector is a high-strength solderless service connector made of high copper alloy, designed for solid or stranded copper conductors ranging from 10 to 6 AWG. It is suitable for copper and copperweld wires. The NSI N-6 features a split-bolt type for accommodating two maximum wire sizes.

• Constructed from high-strength copper alloy
• Accommodates solid and stranded copper conductors
• Suitable for 10 to 6 AWG conductor sizes

Product Highlights

This split bolt connector provides a reliable solderless connection for copper and copperweld wires, ensuring secure wire termination.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: N-6
• Country of Origin: United States

Technical Specifications

• Series: N Series
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Conductor Size: 10 to 6 AWG
• Conductor Type: Solid/Stranded Copper
• Bolt Size: 0.866 x 0.492 in
• Material: Copper
• Brand: NSI
• Model / MPN: N-6
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Standard & Approvals: CSA Certified, UL486B Listed
• Application: For Wire Termination
• Type: Mechanical Cable Tap
• Installation: Split-Bolt
• Material Finish: Copper
• Run AWG Max: 6 sol
• Run AWG Min: 10 sol
