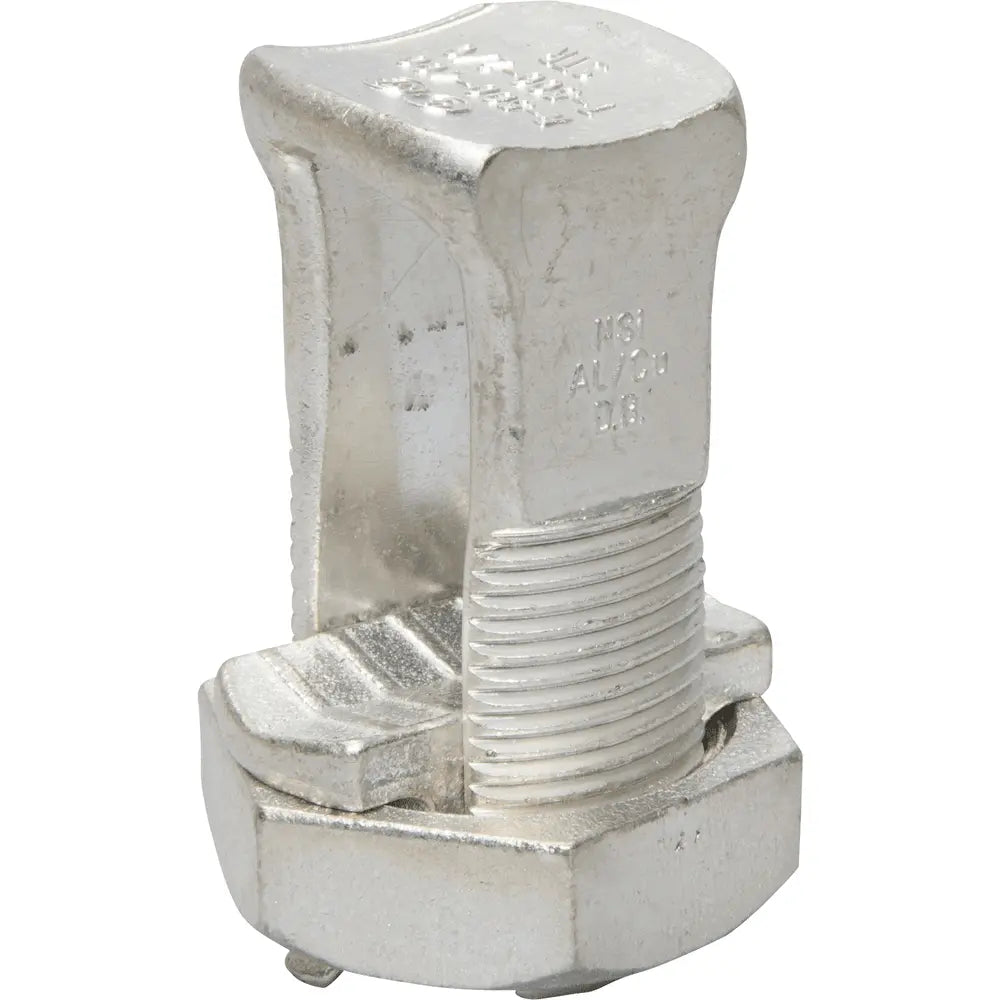

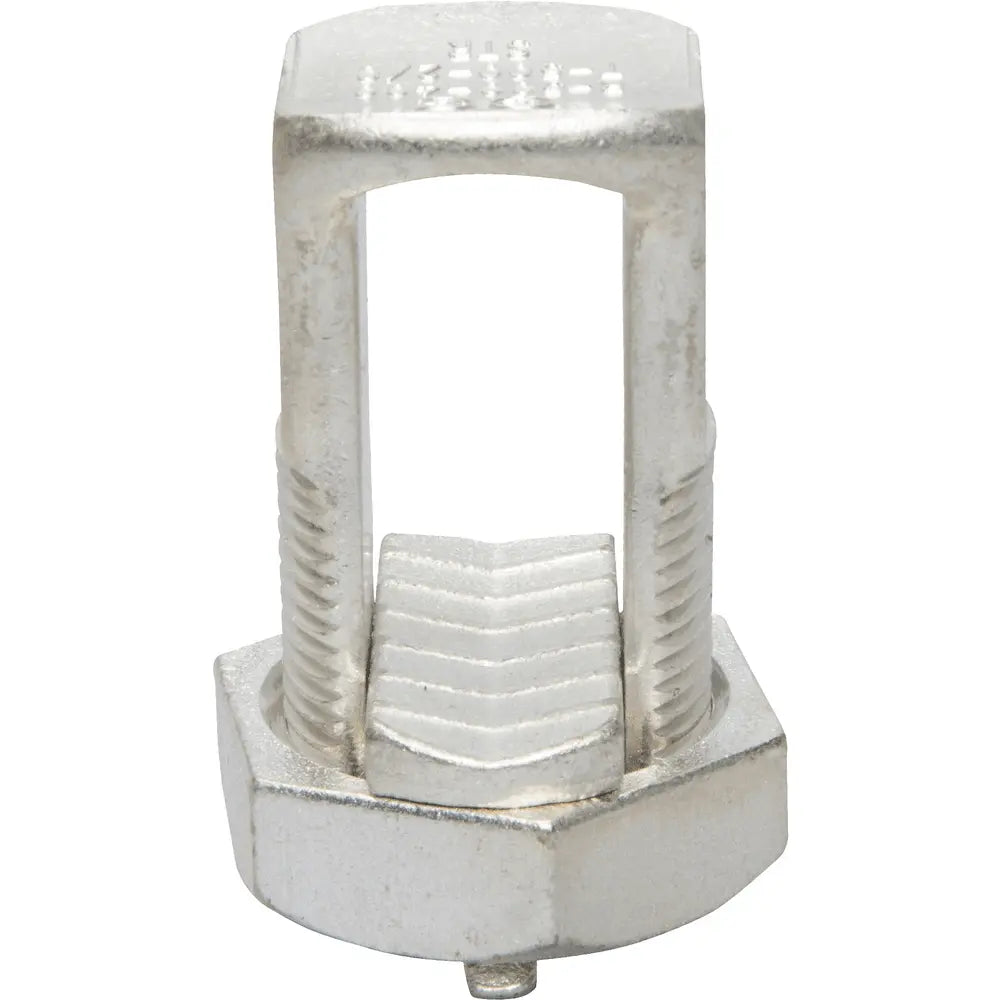

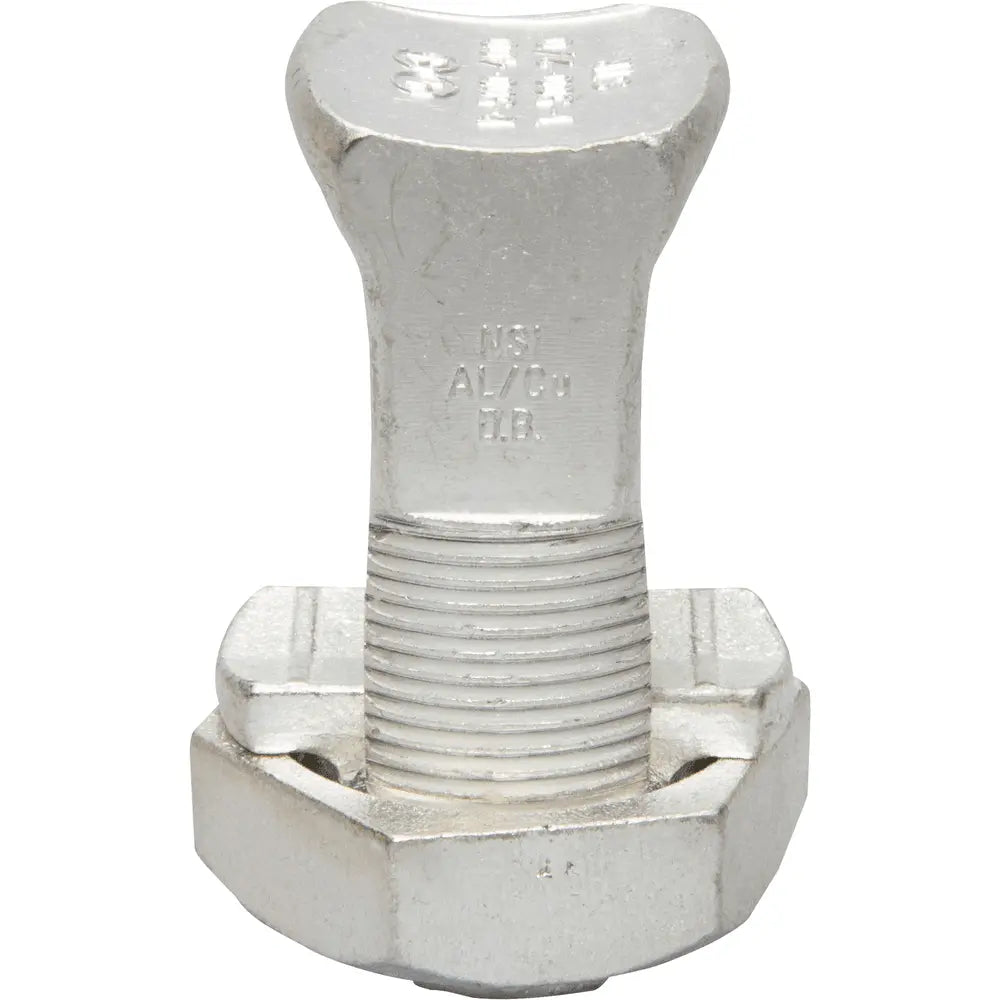

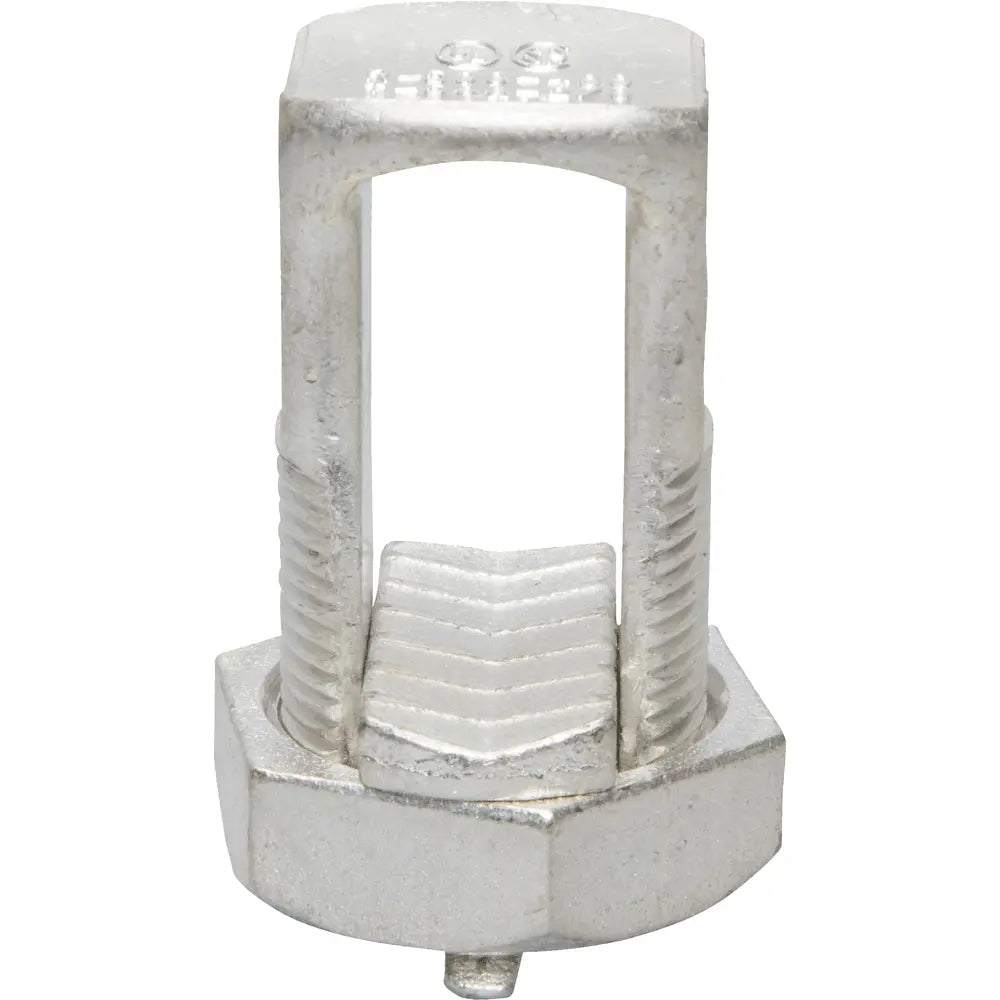

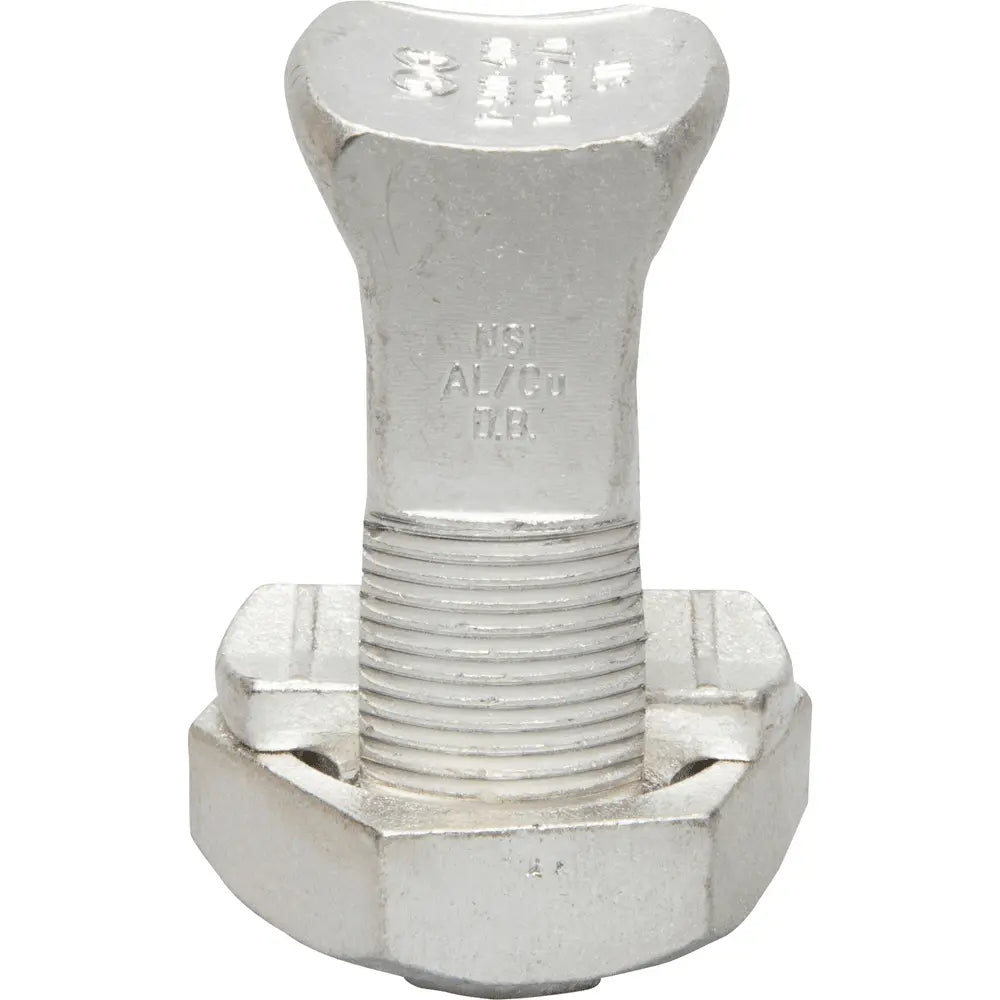

NSI N-500SP Copper Split Bolt Connector, 500 MCM

Product Description

The NSI N-500SP Copper Split Bolt provides reliable electrical connections for a range of conductor types. This product is rated for conductors from three aught (3/0) to five hundred (500) MCM, making it suitable for heavy-duty applications. It features a dual rating for copper and aluminum connections, ensuring versatility in various wiring setups.

• Includes nut, spacer, and pressure pad
• Rated for both copper and aluminum applications
• UL listed for safety and quality assurance

Product Highlights

The NSI N-500SP is designed for use in dry locations and is ideal for aluminum to copper, aluminum to aluminum, steel to copper, and copper to copper connections.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• Material: Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees C
• Conductor Size: 3/0 AWG to 500 kcmil
• Connection Type: Mechanical
• Dimensions: 2.814 inches length x 1.338 inches width
• Weight: 0.95 pounds
• Environmental Conditions: Dry Location
