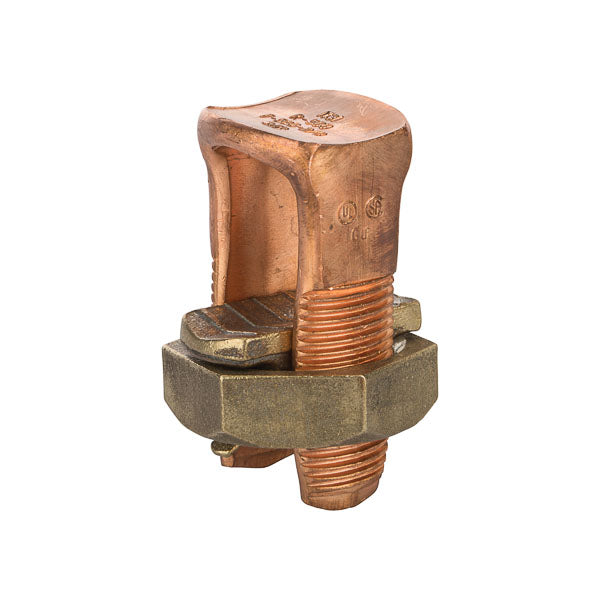

Nsi N-500 Split Bolt Connector 250 to 500 kcmil

Brand: NSI
SKU: N-500
Availability: In Stock

Ships same day if ordered by 12 pm
$89.89
$89.89
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The NSI N-500 split bolt connector is designed for solid or stranded copper conductors ranging from 250 to 500 kcmil. Constructed from a high copper alloy, this solderless service connector is suitable for copper and copper weld wires. It features a 1.338 x 2.814 inch bolt and is rated for 600 VAC at 90 degrees C.

  • Made of high strength copper alloy for copper and copper weld wires
  • Suitable for solid and stranded copper conductors
  • Split bolt type for two maximum wire sizes

Product Highlights

The NSI N-500 split bolt connector provides a reliable solderless connection for copper conductors, ensuring secure and efficient electrical connections.

Product Information

Standard Information

  • Brand: NSI
  • Manufacturer Part Number: N-500

Technical Specifications

  • Series: N Series
  • Specifications: 1 Pole, 2 Conductor, 0.81 in Split, 1-3/4 in Hex Nut, 825 in-lb Torque
  • Temperature Rating: 90 deg C
  • Voltage Rating: 600 VAC
  • Conductor Size: 250 to 500 kcmil
  • Conductor Type: Solid/Stranded Copper
  • Bolt Size: 1.338 x 2.814 in
  • Material: Copper
