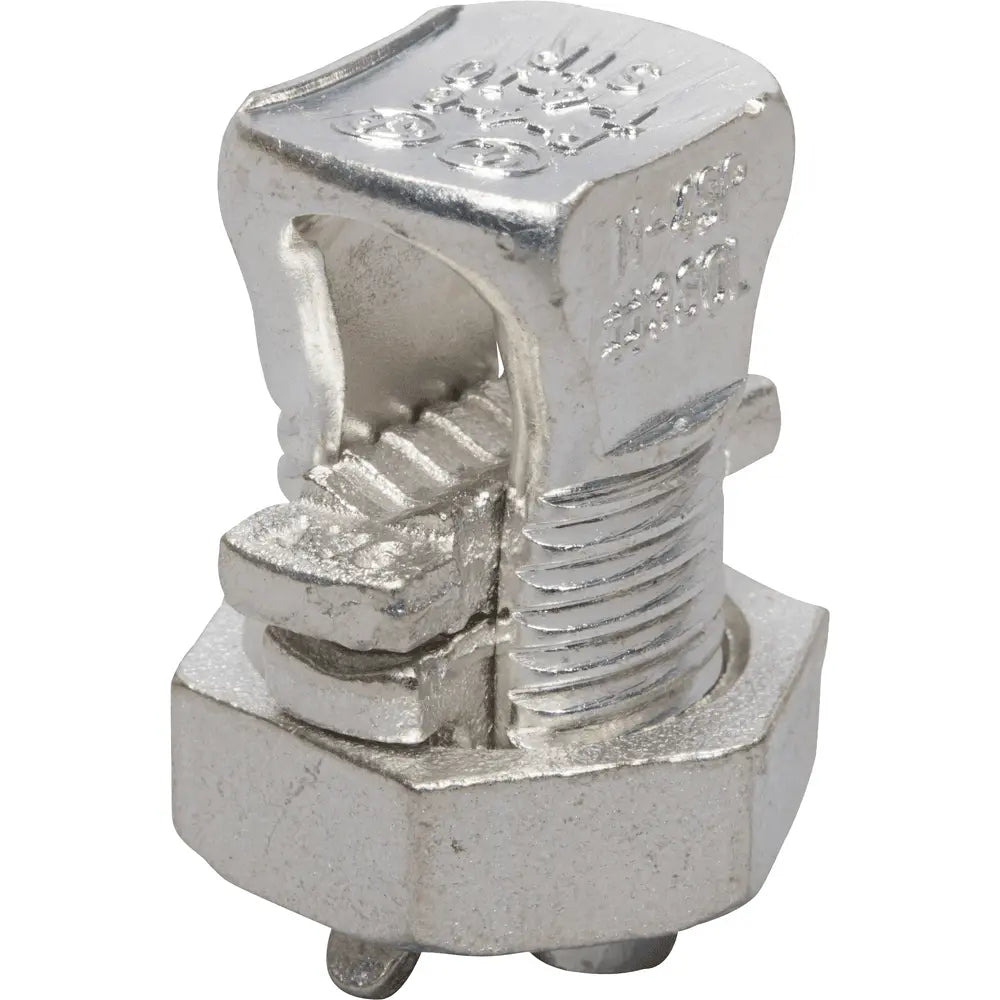

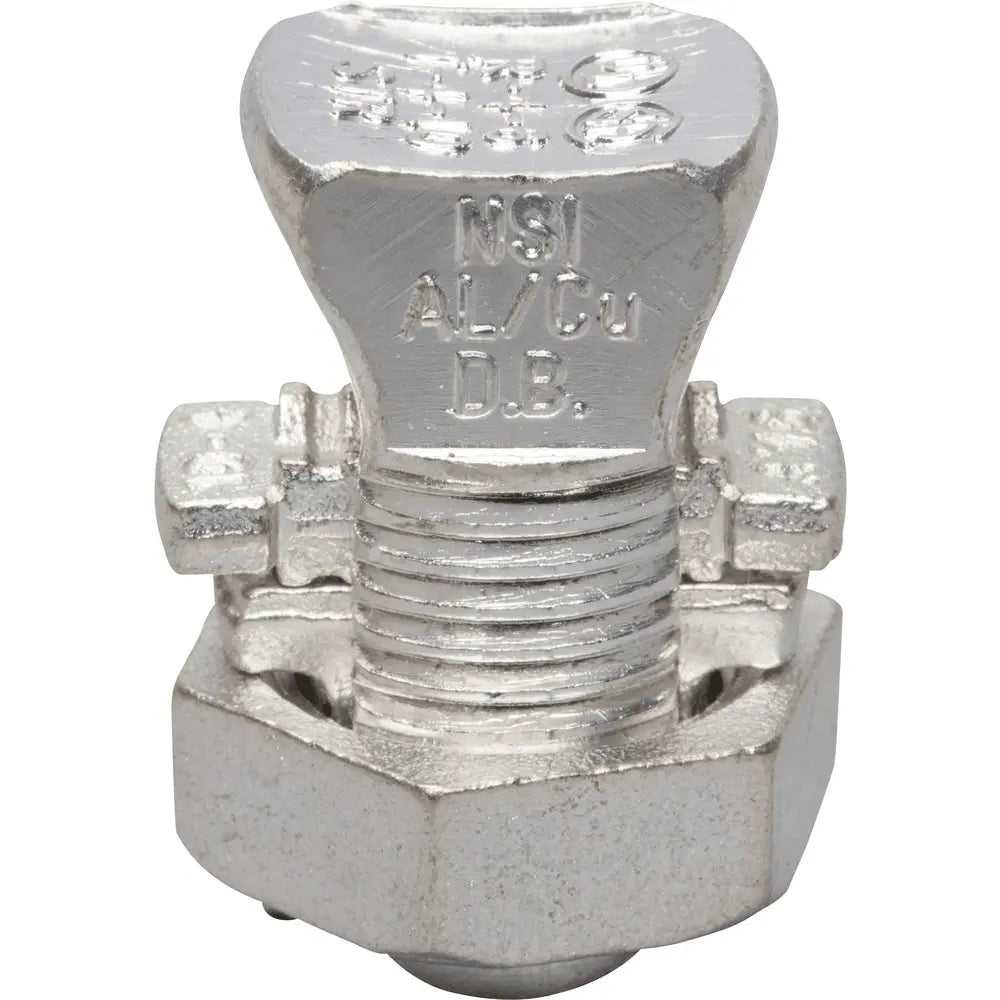

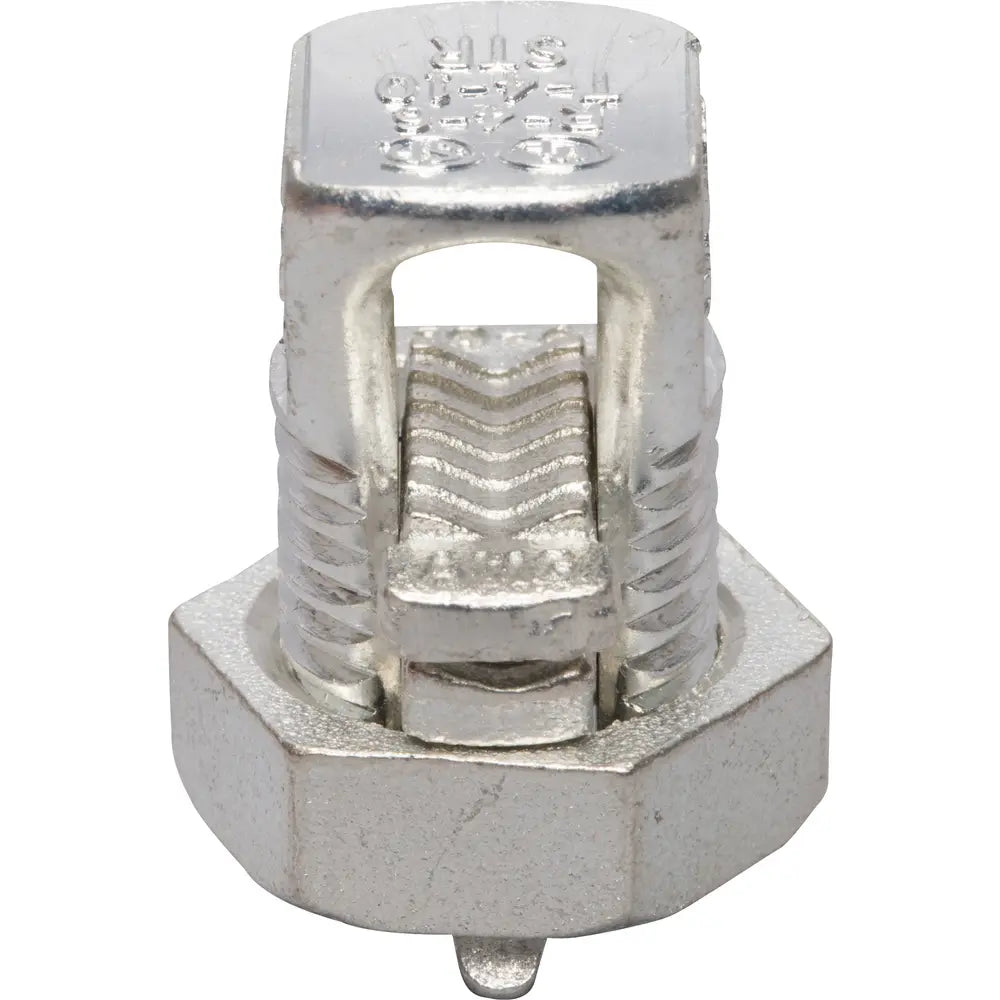

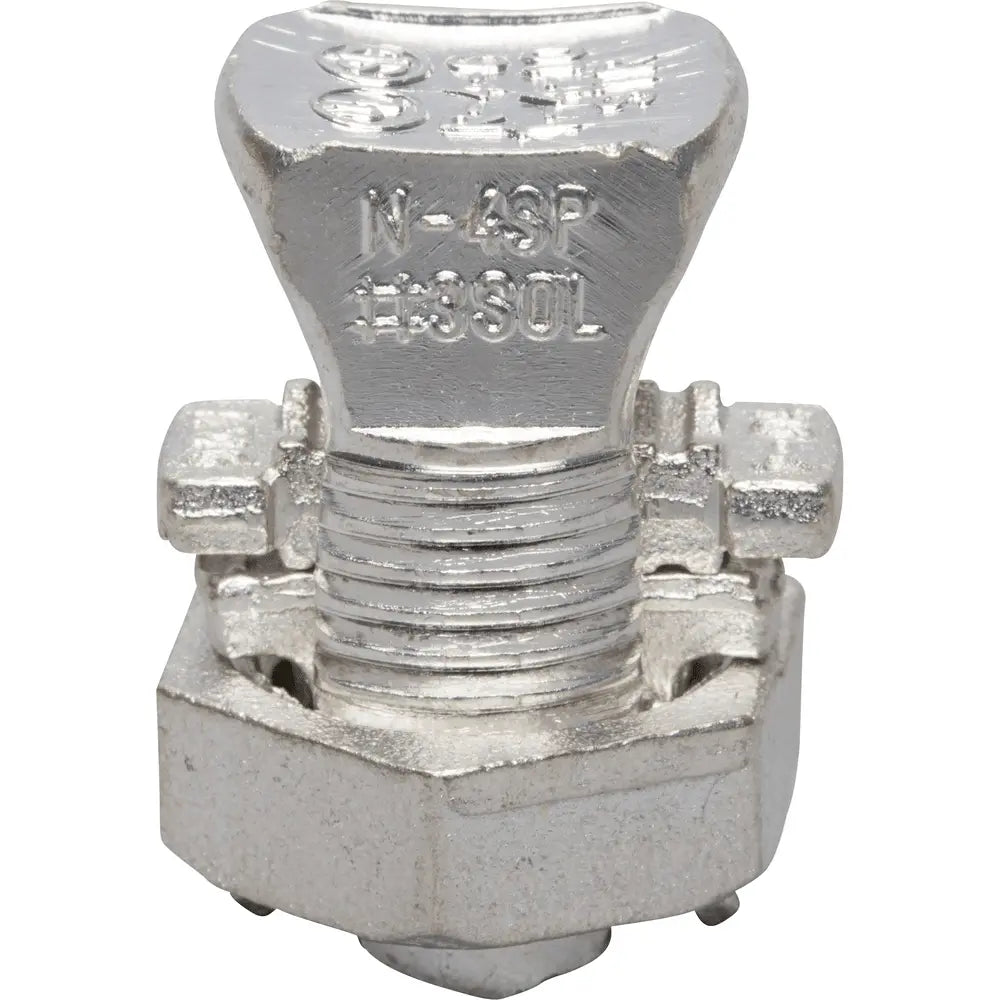

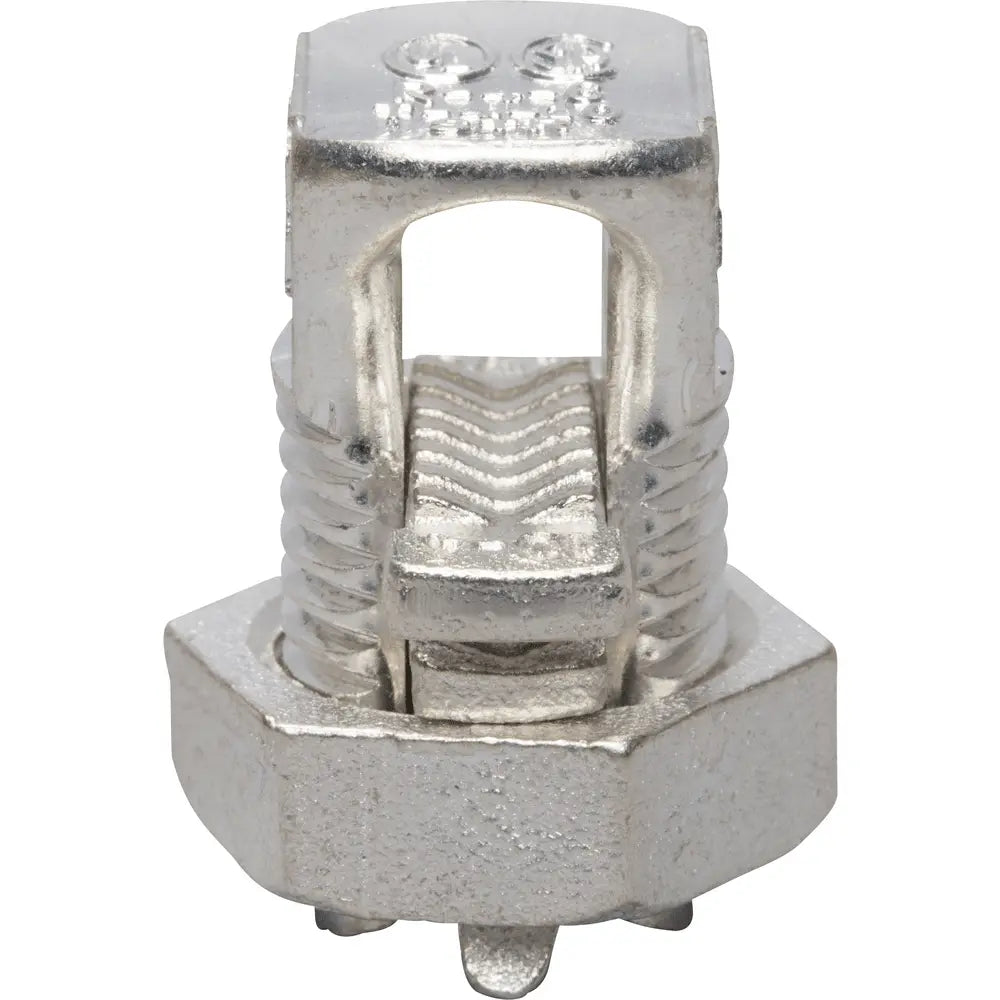

NSI N-4SP Copper Split Bolt, 4 AWG, Tin Plated

Product Description

The NSI Supplies N-4SP Copper Split Bolt is a reliable connector designed for various applications in electrical installations. This model is suitable for 10 AWG to 6 AWG conductors made of copper, aluminum, and ACSR. It features a robust tin-plated finish that enhances its durability and corrosion resistance.

• ACSR, Aluminum, and Copper compatibility
• Used for mechanical connections and terminations
• Includes nut, spacer, and pressure pad

Product Highlights

This connector provides a strong electrical connection in both residential and commercial settings.

Product Information

Standard Information

• Brand: NSI
• Part Number: 0043-1319

Technical Specifications

• UPC: 662381020338
• Dimensions: 1.161 inches L x 0.708 inches W
• Weight: 0.09 pounds
• Material: Copper
• Standard: UL486B
• Connection Type: Mechanical
• Insulation: Non-Insulated
• Temperature Rating: 194°F
• Conductor Range: 10 AWG to 6 AWG
• Number of Conductors: 2
• Environmental Conditions: Dry Location
