Nsi N-250SP polaris split bolt copper 250

Product Description

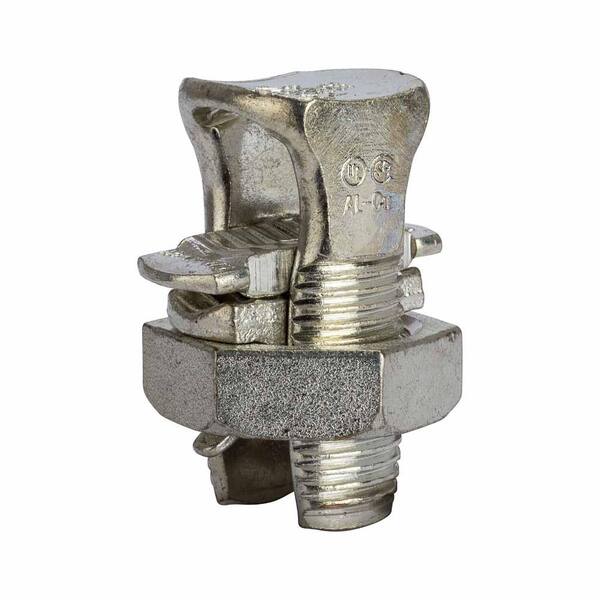

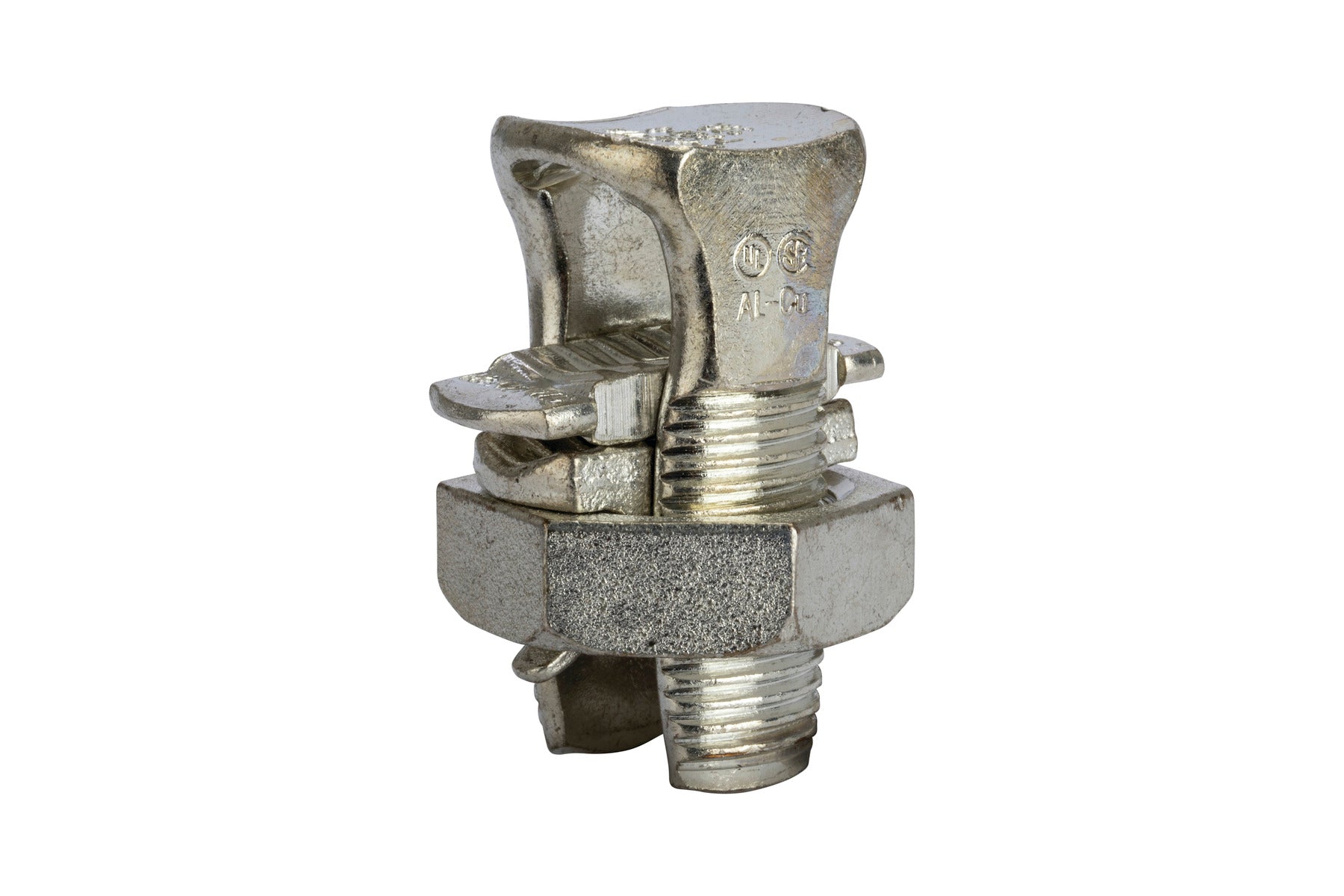

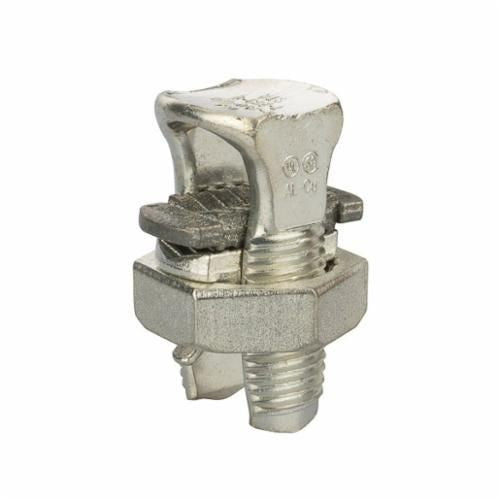

The NSI N-250SP is a split bolt copper connector with tin plating. It can be used for aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper connections. The electro-tinned body ensures durability. Includes nut, spacer, and pressure pad.

• Can be used Aluminum to copper (Dual Rated), Aluminum to aluminum, Steel to aluminum, Copper to copper, Steel to copper
• Electro-tinned body
• UL listed for copper and copperweld wires only

Product Highlights

The NSI N-250SP split bolt connector is ideal for various wire combinations, ensuring secure and reliable connections.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: N-250SP
• Country of Origin: United States

Technical Specifications

• Material: Copper
• Finish: Tin Plated
• Pack Qty: 6
• GTIN: 662381020390
• UPC: 662381020390
• EAN: 0662381020390
• UNSPSC: 39121408
• Ul Standard: UL 486A-486B, UL 486D
• Conductor Type: Solid/Stranded/ACSR Copper/Aluminum
• Assortment: Copper Split Bolts
• Type: All Purpose
• Series: N-SP
• Conductor Size: 4 AWG Stranded - 250 MCM, 0.232 - 0.575 Inch
• Overall Length: 2.106 Inch
• Voltage Rating: 600 VAC
• Tightening Torque: 650 lb-Inch
• Temperature Rating: 90 deg C
• Includes: Nut, Spacer and Pressure Pad
• Application: Wire Termination
• Standard/Approvals: UL 486B
• Specifications: 1 Pole, 2 Conductors, 0.6 in Split, 1.38 in Hex Nut, 650 in lb Torque
• Country of Origin: United States
