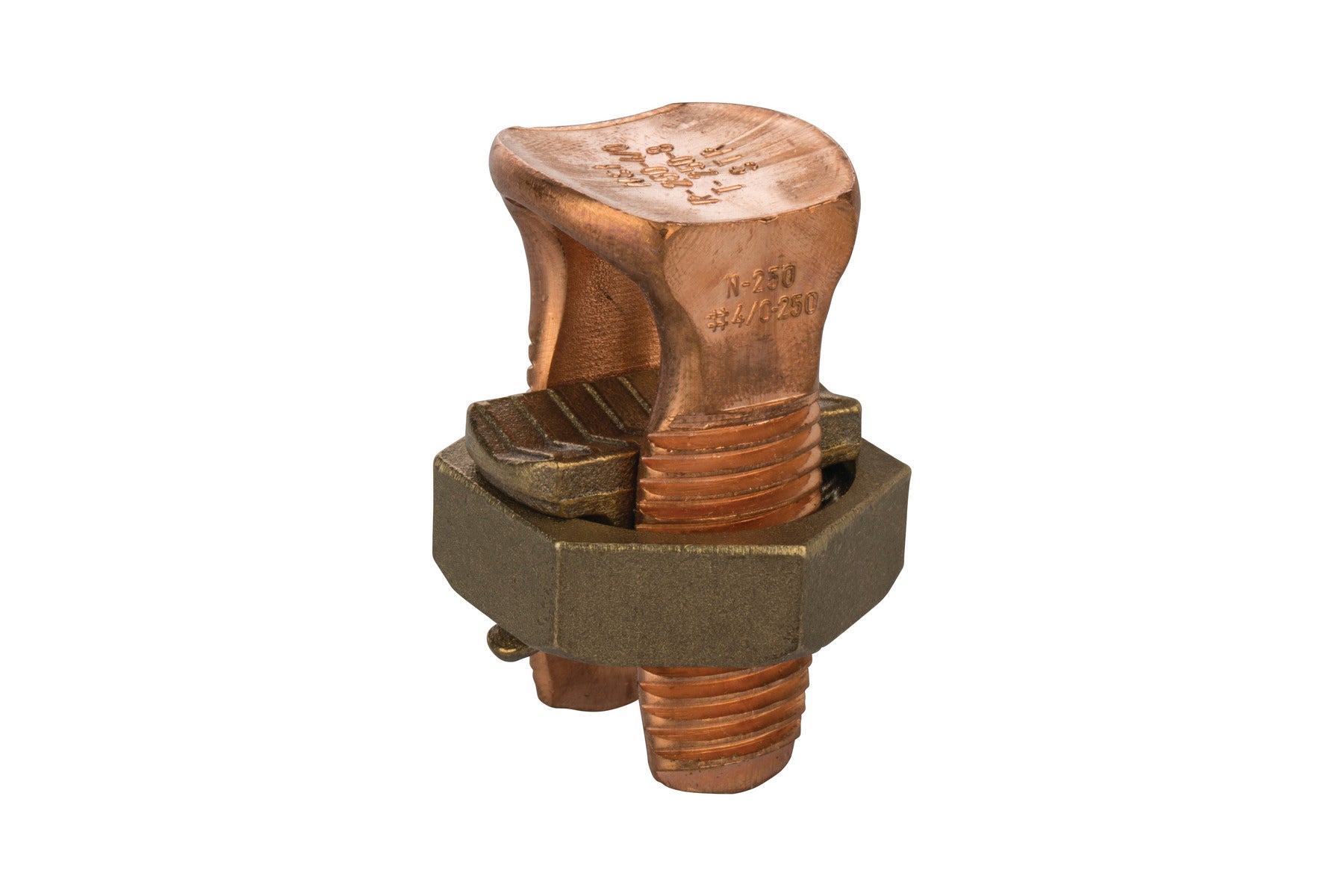

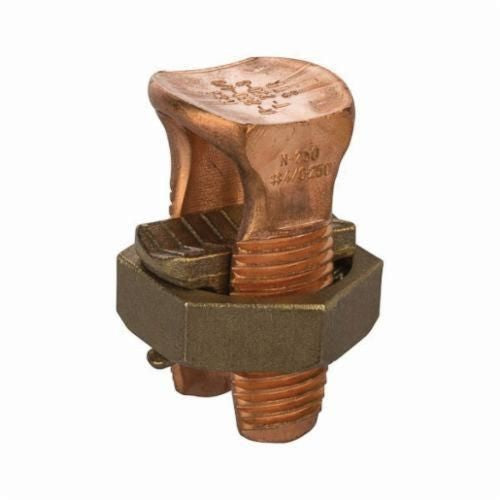

Nsi N-250 Split Bolt Copper 250 MCM

Product Description

The NSI N-250 is a high-strength solderless service connector made of high-copper alloy, designed for copper and copperweld wires. It is suitable for wire termination with a conductor size of 1/0 AWG - 250 MCM. This split-bolt type connector accommodates two maximum wire sizes and is UL 486A and UL 486D Listed.

• Made of high-copper alloy for copper and copperweld wires
• Suitable for 1/0 AWG - 250 MCM conductor sizes
• UL 486A and UL 486D Listed

Product Highlights

The NSI N-250 copper split bolt is ideal for creating a strong, solderless connection for copper and copperweld wires.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: N-250

Technical Specifications

• Material: Copper
• Pack Qty: 6
• GTIN: 662381020093
• UPC: 662381020093
• EAN: 0662381020093
• UNSPSC: 39121408
• Ul Standard: UL 486A, UL 486D
• Conductor Type: Solid/Stranded Copper
• Series: N
• Specifications: 1 Pole, 2 Conductors, 0.58 in Split, 1.4 in Hex Nut, 650 in lb Torque
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC
• Application: For Wire Termination
• Standard & Approvals: CSA Certified, UL486B Listed
• Conductor Size: 1/0 AWG - 250 MCM
• Connector Style: Split Bolt
• Contact Material: Copper
• MPN: N-250, N250
• Number of Poles: 1
• Compatible Mounting Type: Wire
