Nsi M12-250-3N Nylon Insulated Male Disconnect 50/Pack Replacement Mpn

Product Description

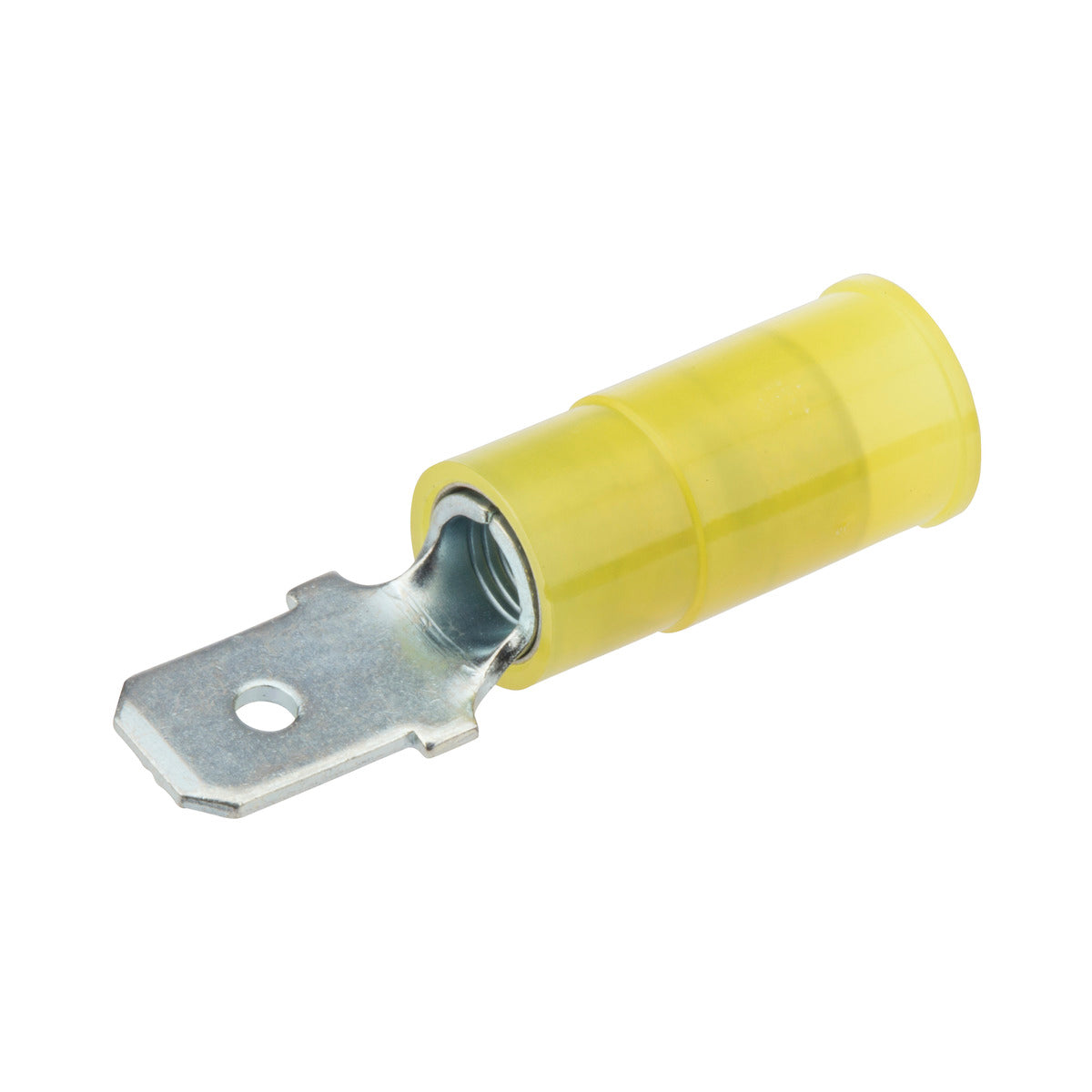

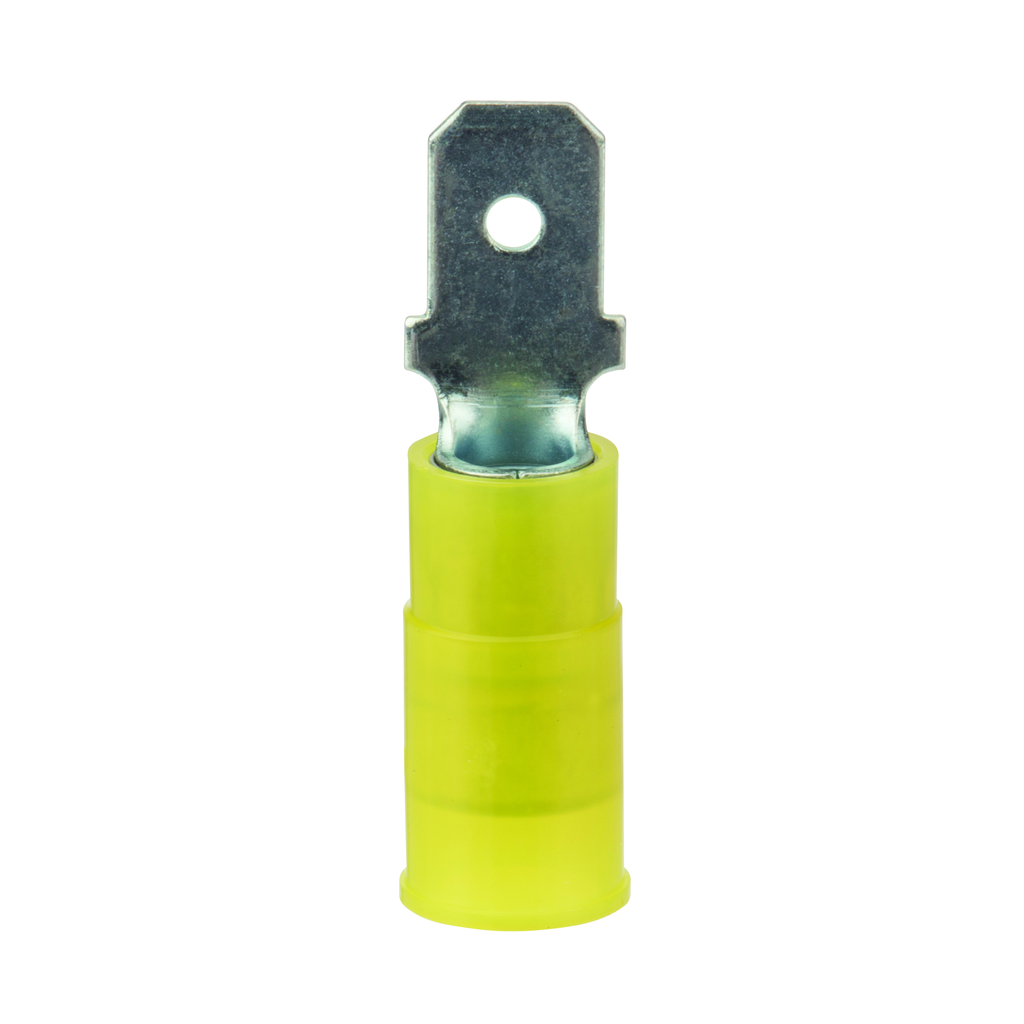

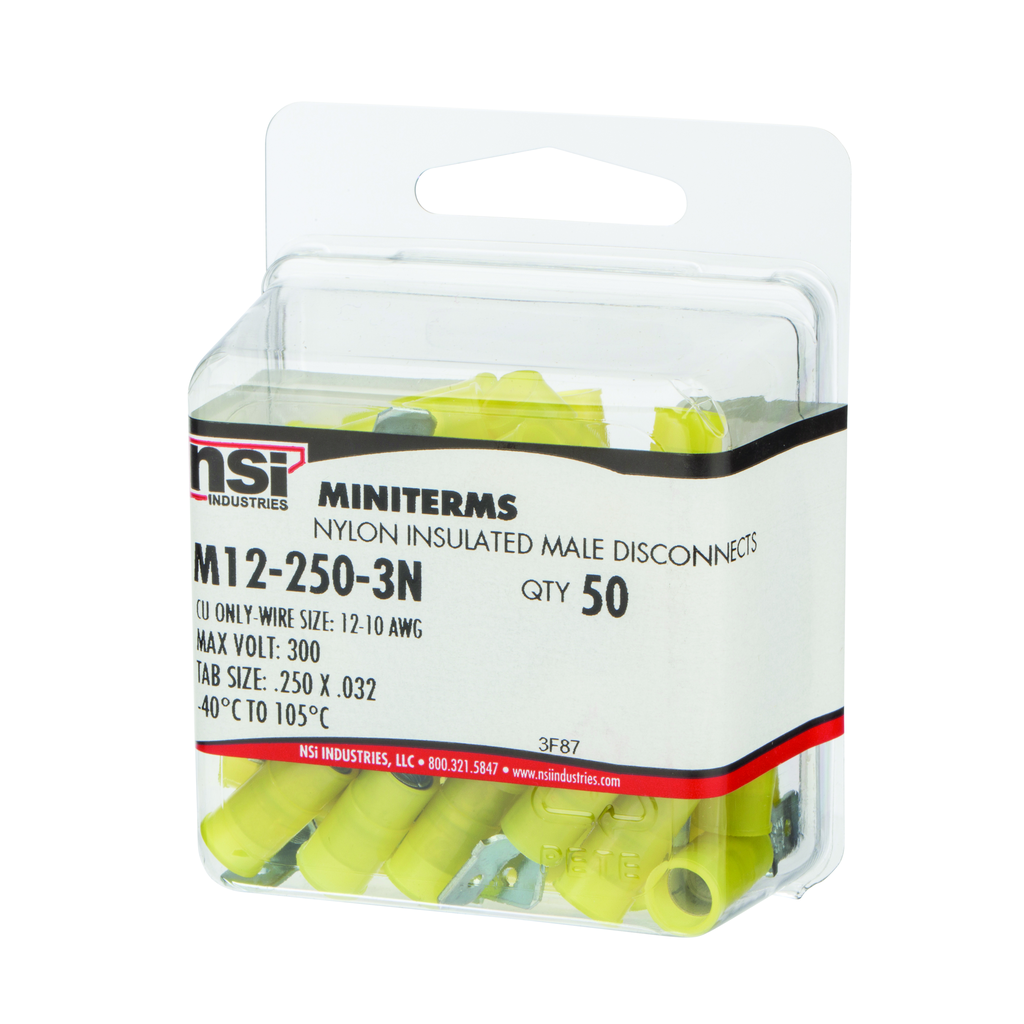

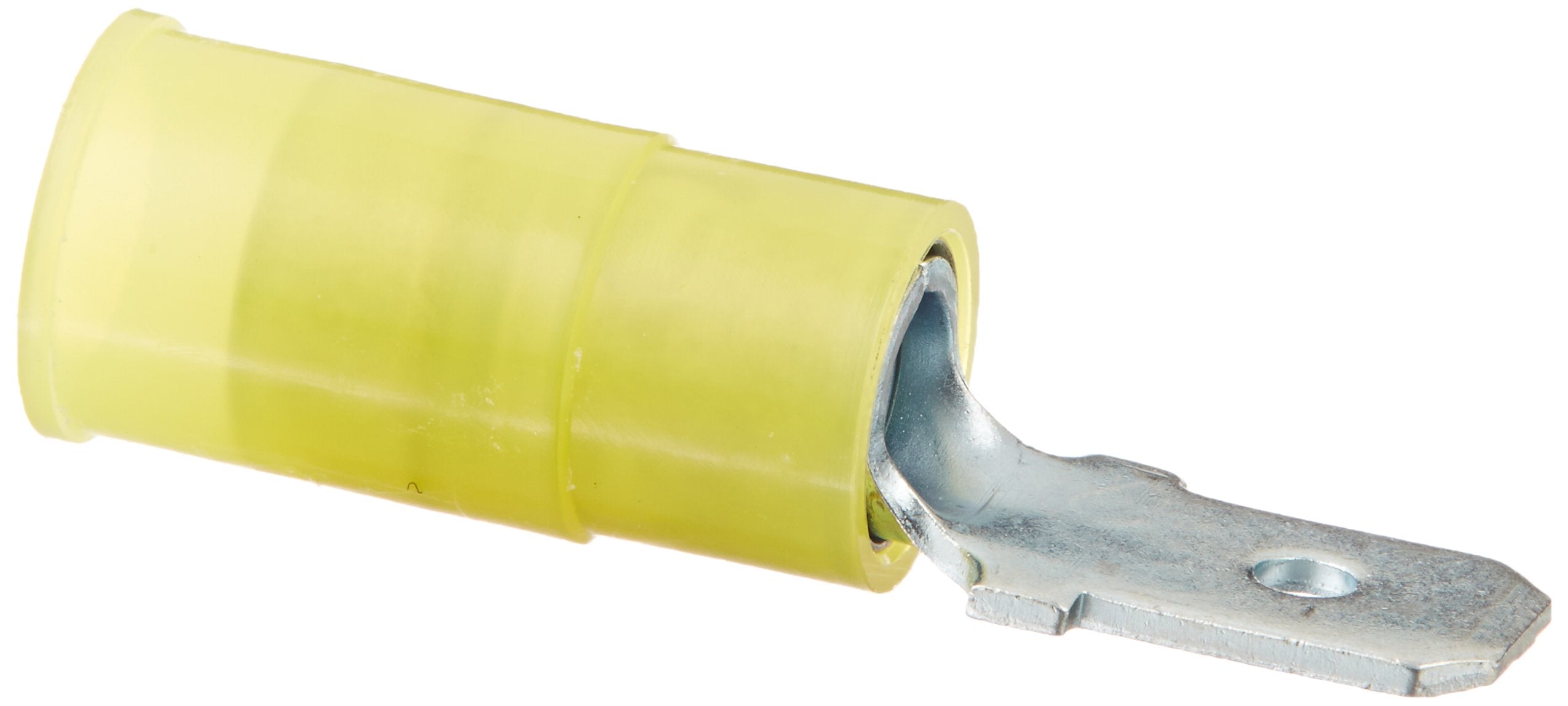

The NSI M12-250-3N is a nylon insulated male disconnect. It is UL listed and available in 12-10 wire size with a 0.250-inches x 0.032-inches tab size. This product is rated to 105 degrees C and is BAA/Buy American Compliant.

• Nylon insulated male disconnect
• Available in 12-10 wire size
• 0.250-inches x 0.032-inches tab size

Product Highlights

Nylon insulated male disconnect with 12-10 wire size and 0.250-inches x 0.032-inches tab size.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: M12-250-3N
• Country of Origin: Taiwan

Technical Specifications

• Wire Size: 12-10 AWG
• Tab Size: 0.250" x 0.032"
• Number of Items: 50.0
• Voltage Rating: 600V
• Material: Brass
• Color: Yellow
• GTIN: 00662381071149
• UPC: 662381069474
• EAN: 0662381071149
• Wire Range: 12 AWG - 10 AWG
• Insulation Type: Partially Insulated
• Applications: Wire Termination
• Conductor Size: 12-10 AWG
• Number of Terminations: 1
• Standard: CULUS
• Terminal Size: .250 x .032 IN
• Type: Nylon Insulated Male Disconnect
• Voltage: 300 Volt
• Brand: NSI Industries
• Sub Brand: Miniterms
• Environmental Conditions: 105 C
• Product UPC: 66238107114
• Certifications and Standards: RoHS
• Country of Origin: Taiwan
• Collection Folder: M12-250-3N
• NPD Date Electrical: 2010-04-16T00:00:00.000Z
• MATERIAL: brass
• Division: Electrical H1
• Field Application: Termination
• PRODUCT FAMILY: Connectivity
• Flammability Rating: V-2
• Terminal Style: Male
• Seam Type: Butted
• Strip Length: 8-Mar in.
• Insulation Material: Nylon
