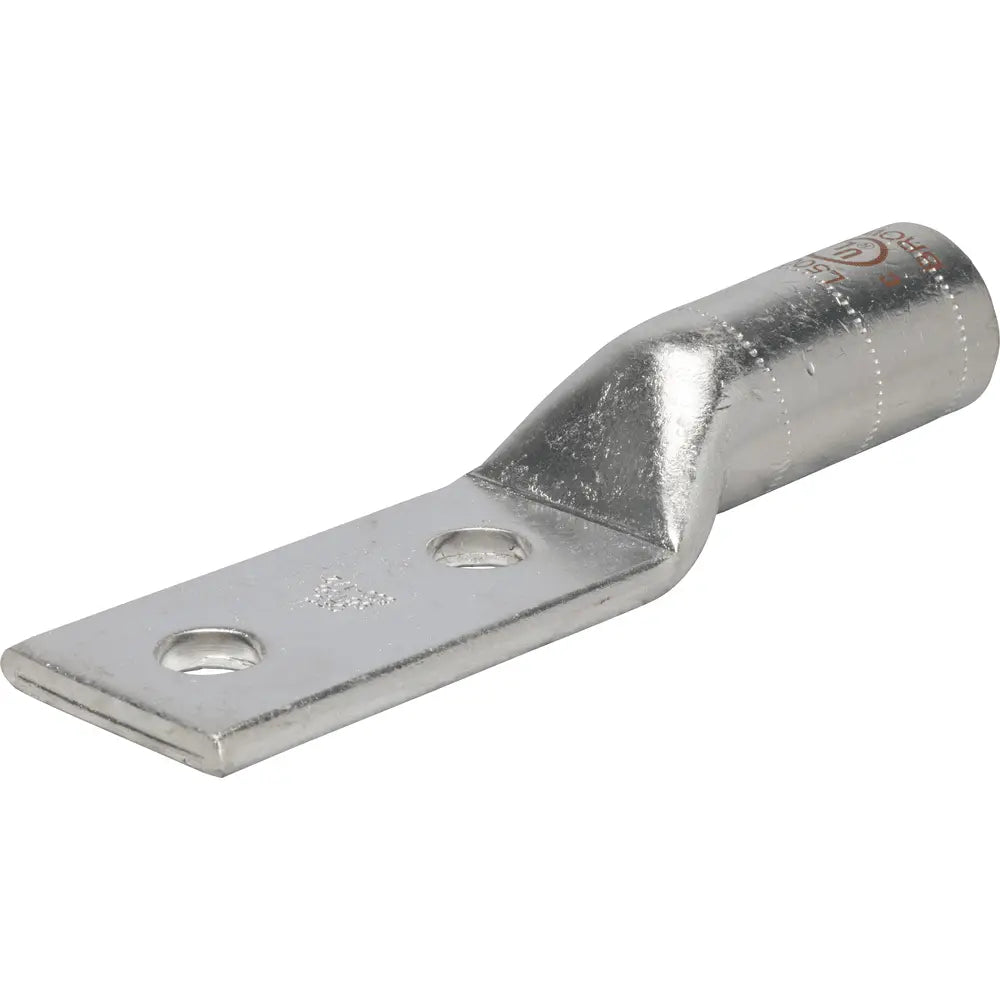

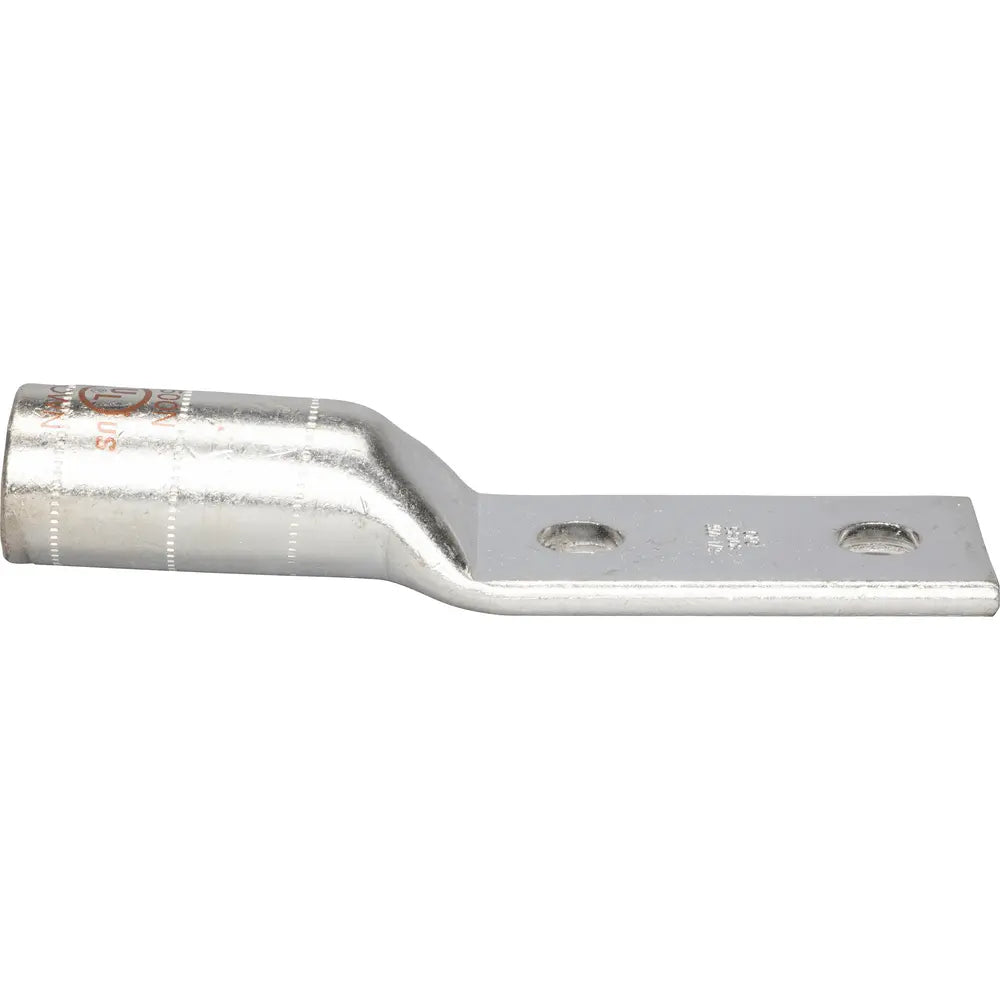

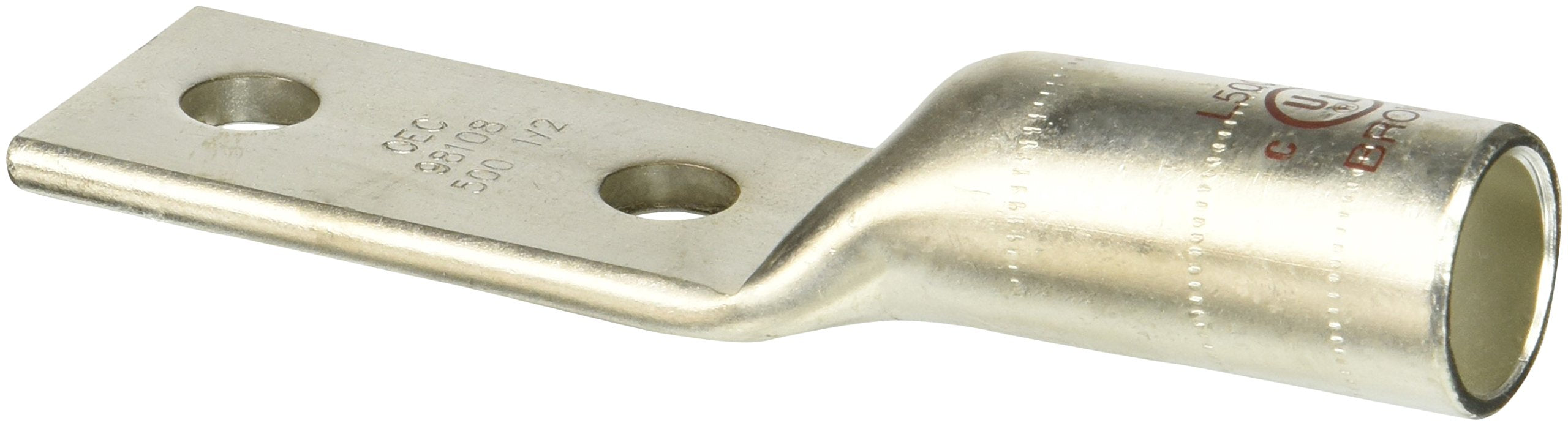

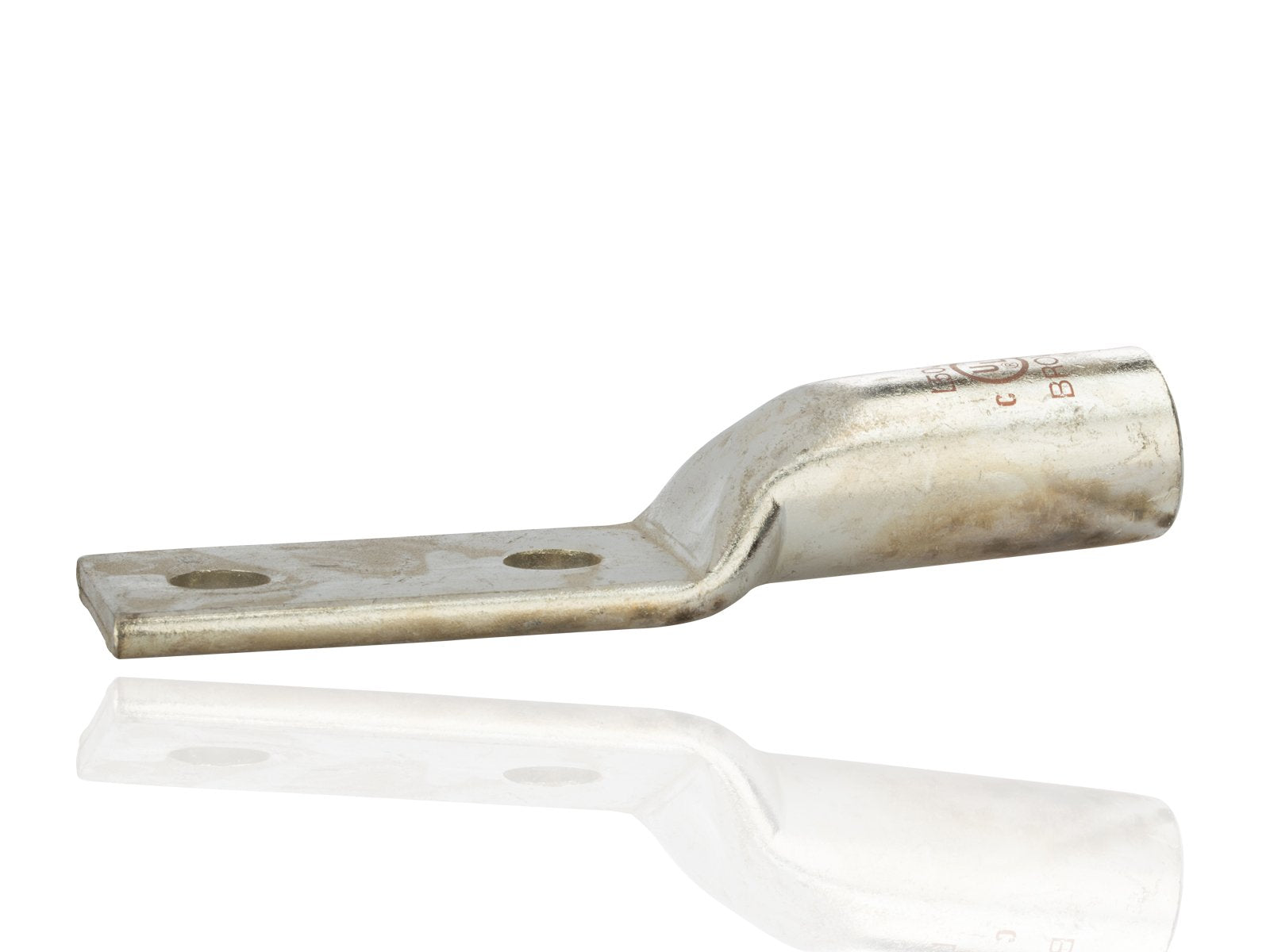

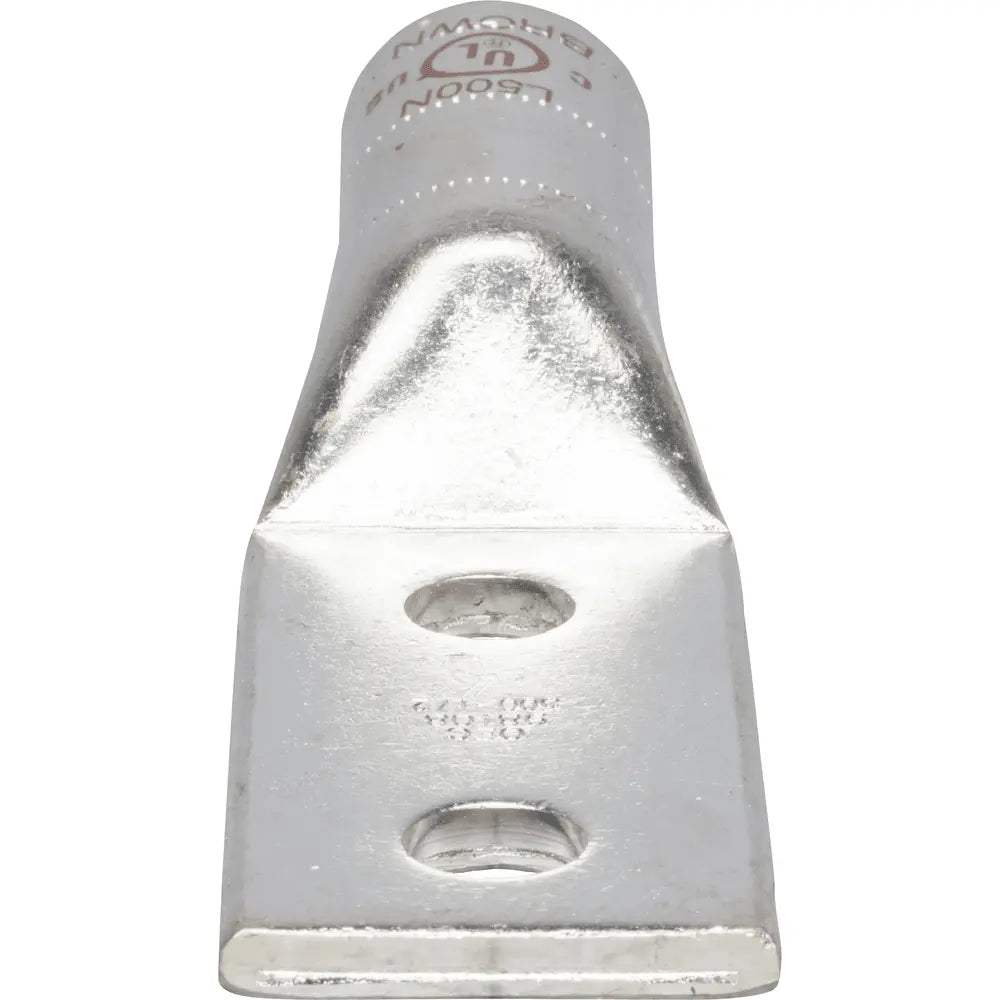

Nsi L500N polaris copper compression long lug 500MCM

Product Description

The NSI L500N Polaris compression connector terminates high-current wires safely and is produced from high conductivity copper tubing. It has a max voltage rating of 35kV when properly installed. The tin-plated copper body is marked with die index and color coded for easy reference.

• Terminates high-current wires safely
• Made from high conductivity copper tubing
• Tin-plated to provide corrosion resistance

Product Highlights

This copper compression lug is ideal for terminating, splicing, and tapping power connectors.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L500N
• Country of Origin: IN

Technical Specifications

• Type: Compression Lugs
• Width: 1.54 Inches
• Length: 5.75 Inches
• Material: Copper
• Mounting: Bolt-On
• Standard: cULus, UL Listed
• Cable Size: 500 MCM (STR)
• Color Code: Brown
• Connection: Compression
• Insulation: Non-Insulated
• Voltage Rating: 600 VAC
• Number Of Holes: 2
• Environmental Conditions: Dry Location
• Barrel Size: 0.84 in ID x 1.06 in OD
• Barrel Type: Long
• Mounting Hole Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 2.99 in L x 1.54 in W x 0.22 in THK
• Conductor Size: 500 kcmil
• Conductor Type: Stranded
• Stud Size: 1/2 in
• Barrel Length: 2.24 Inch
• Pad Size: 2.99 Inch L x 1.54 Inch W x 0.22 Inch Thk
• Pad Hole Spacing: 1.75 Inch
• Die Index: 15/20/299/87
• Application: Terminate, Splice, Tap Power Connectors
• Brand: NSI
• Manufacturer: NSi Industries
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Holes: 2
• Wire Range: 500 MCM
• Expanded Wire Range: 500 - 250 MCM
• Bolt Size: 1/2"
• ID: 0.840
• OD: 1.060
• End of Connection to Center: 0.620
• Tang Length: 2.990
• Tang Thickness: 0.220
• Mounting Hole Diameter: 0.510
• Mounting Hole Spacing: 1.750
• Vendor SKU: L500N
• UPC: 662381035172
• UNSPSC: 39121405
• Standard & Approvals: UL 486 Listed, RoHS Compliant
• Sub Brand: Copper Compression
• Voltage: 600 Volt
• Special Features: 500 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing
