Nsi L50048 cmp lug cu long 500 MCM 1/2 Bolt Size

Product Description

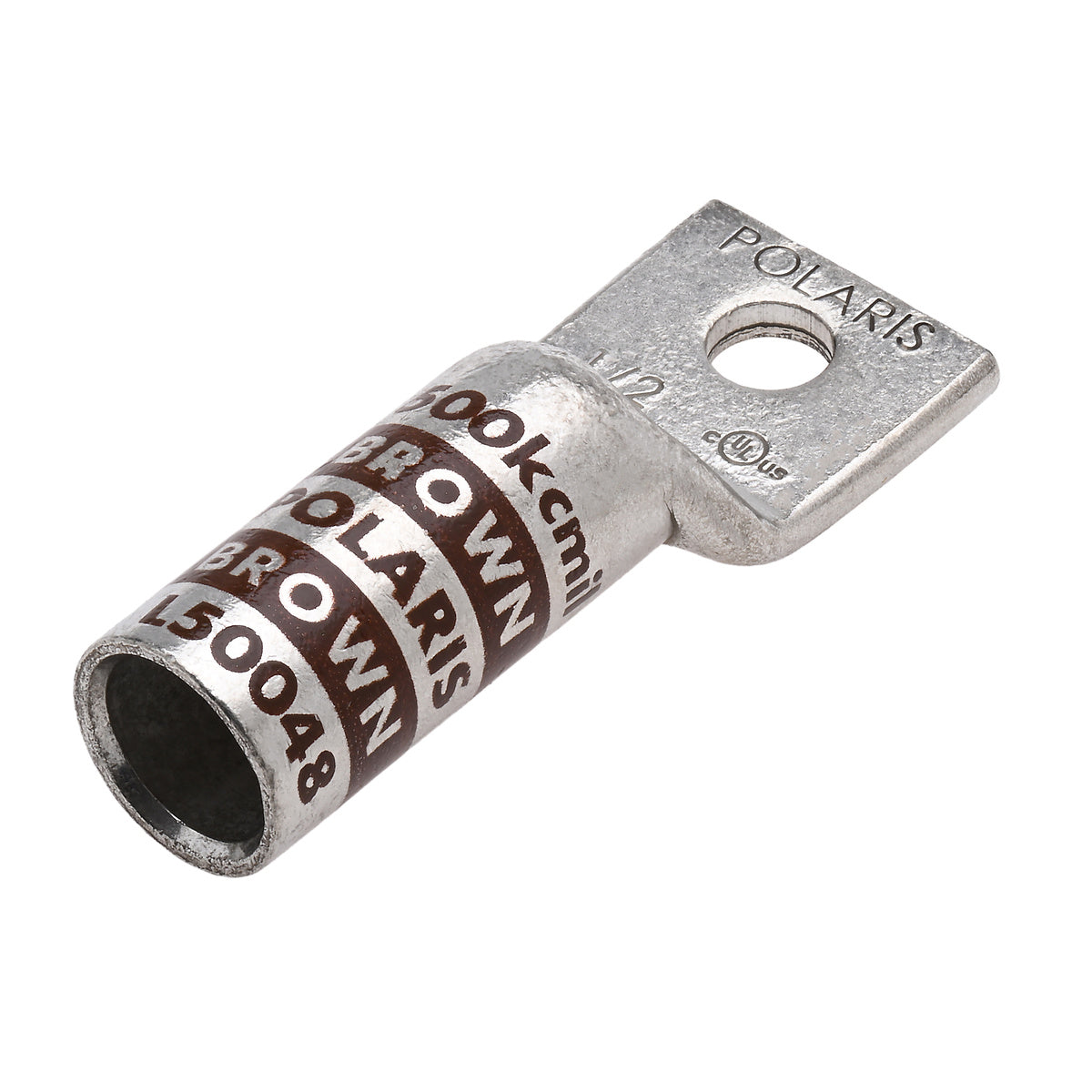

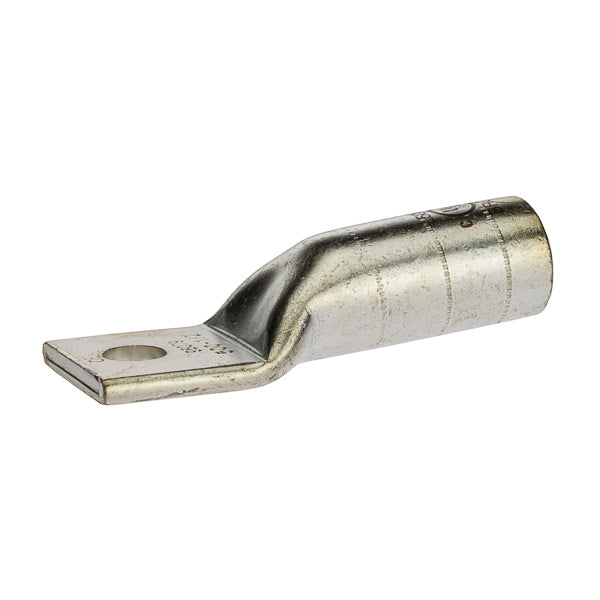

The NSI L50048 POLARIS compression design creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. Constructed with high conductivity copper tubing and a corrosion-resistant tin-plated finish. Marked with die index and color coded. Flex rated for use with K, H, G, I, M and DLO cable.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

The NSI L50048 is UL/cULus listed and rated for B/C class wire. UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L50048
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 600 VAC
• Material: Copper
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.22
• Tang Length: 1.38
• Wire Range: 500 MCM
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 500 MCM – 250 MCM
• Die Color Code: Brown
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 2
• Number of Ports: 1
• Termination Type: Compression
• Compatible Wire Gauge (AWG): 500 MCM
• MPN: L50048
• Compatible Mounting Type: Wire
• Barrel Size: 0.835 in ID x 1.06 in OD x 2.244 in L
• Barrel Type: Long
• Color: Brown
• Mounting Hole Size: 1/2 in
• Overall Length: 4.13 in
• Series: L Series
• Temperature Rating: 90 deg C
• Tongue Size: 1.378 in L x 1.53 in W x 0.217 in THK
• Type: 1-Hole
• Conductor Size: 500 kcmil
• Stud Size: 1/2 in
