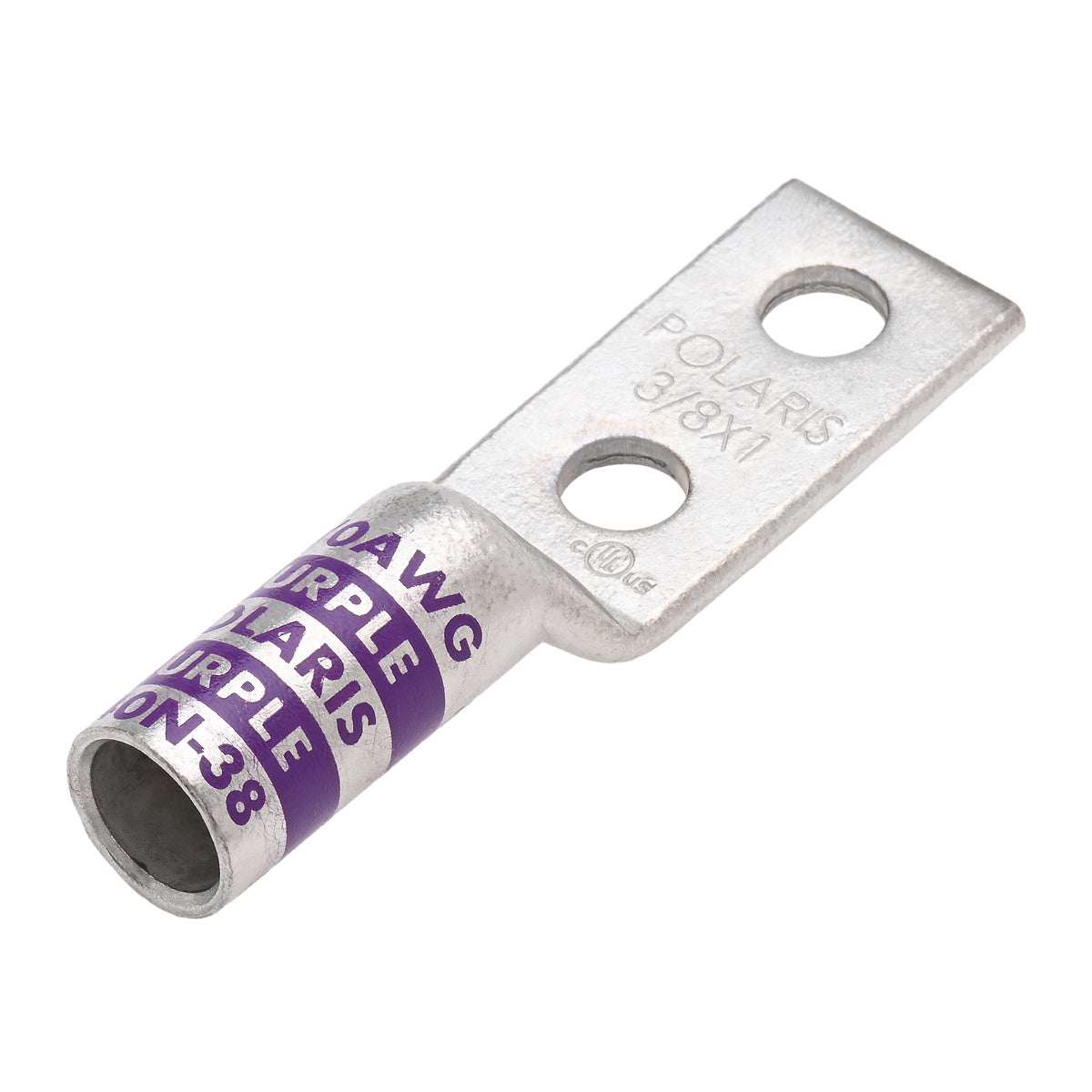

Nsi L40N-38 cmp lug cu long 4/0 awg 3/8 blt 1 spc

Product Description

The NSI L40N-38 compression design creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. Constructed from high conductivity copper tubing with a corrosion-resistant tin-plated finish. Marked with die index and color coded. Flex rated for use with K, H, G, I, M and DLO cable.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

The NSI L40N-38 copper compression lug ensures a reliable connection for various applications. Its durable construction and clear markings make it an ideal choice for power and grounding needs.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L40N-38
• Country of Origin: IN

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• GTIN: 662381339195
• UPC: 662381339195
• EAN: 0662381339195
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B
• Huskie Die: HT41BC (4 CRIMPS); CD12 (4 CRIMPS)
• Huskie Tools: EP510C
• Tb Die: 15511 (4 CRIMPS)
• Tb Tools: TBM-15, TBM-14M
• Burndy Die: U28RT (4 CRIMPS)
• Burndy Tools: Y-35, T750, PAT750
• Ilsco Die: ILD-10 (4 CRIMPS), KC12-4/0 (2 CRIMPS)
• Ilsco Tools: ILC-12, ILC-15
• Greenlee Die: KC12-4/0 (2 CRIMPS)
• Greenlee Tools: EK, RK, HK1240 Series
• Nsi Die: CD12 (4 CRIMPS), KC12-4/0 (2 CRIMPS), HT41BC (4 CRIMPS)
• Nsi Tools: N1240, NSI-12, N12ID, M-250, M-500
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 250 MCM – 6 AWG
• Conductor Al Size Range: 250 MCM – 6 AWG
• Conductor Type: Stranded
• Tang Thickness: 0.13
• Tang Length: 1.81
• Hole Spacing: 1
• Wire Range: 4/0 AWG
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 4/0 AWG – 1 AWG
• Die Color Code: Purple
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Product Group (L2): Power Connectors and Grounding
• Product Height (in): 0.689
• Product Length (in): 3.54
• Product Line (L4): Compression Termination
• Product Series: LN
• Product Family (L1): Connectivity
• Product Category (L3): Compression Connectors
• Parent Category: POLARIS Products, Compression Termination
• Primary Parent Category: Compression Termination
• Product Width (in): 1.00
• UL File #: E155027
• Certifications & Standards: cULus, UL Listed
• Conductor - AL Size Range: 250 MCM-6 AWG
• Conductor - CU Size Range: 250 MCM-6 AWG
• Conductor Rating: 9CU
• Barrel ID (in): 0.55
• Barrel Length (in): 1
• Barrel Length Type: Long
• Barrel OD (in): 0.69
• Barrel Peep Hole: No
• BRAND: Polaris
• Manufacturer: NSI Industries
• Min Installation Temperature (C): 90
• Min Installation Temperature (F): 194
• Type: 2-Hole
• Stud Size: 3/8 in
• Conductor Size: 4/0 AWG
• Temperature Rating: 90 deg C
