Product Description

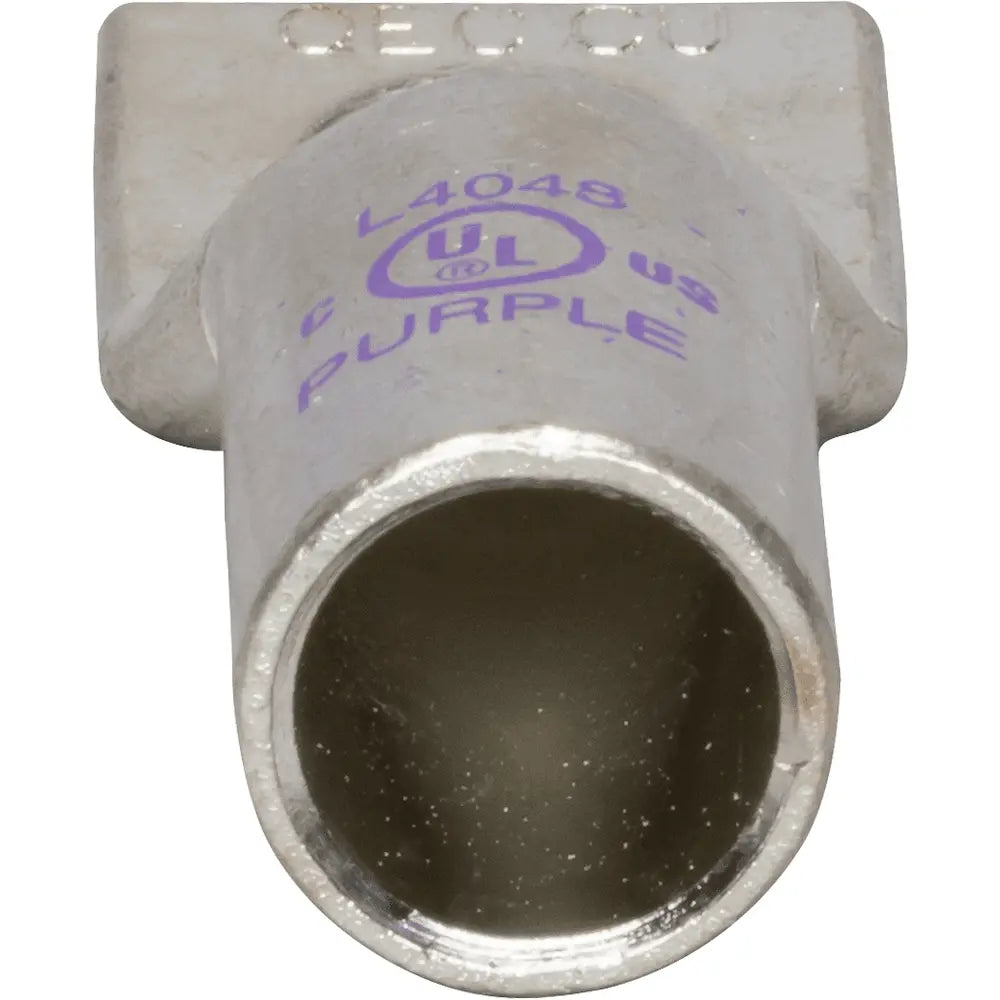

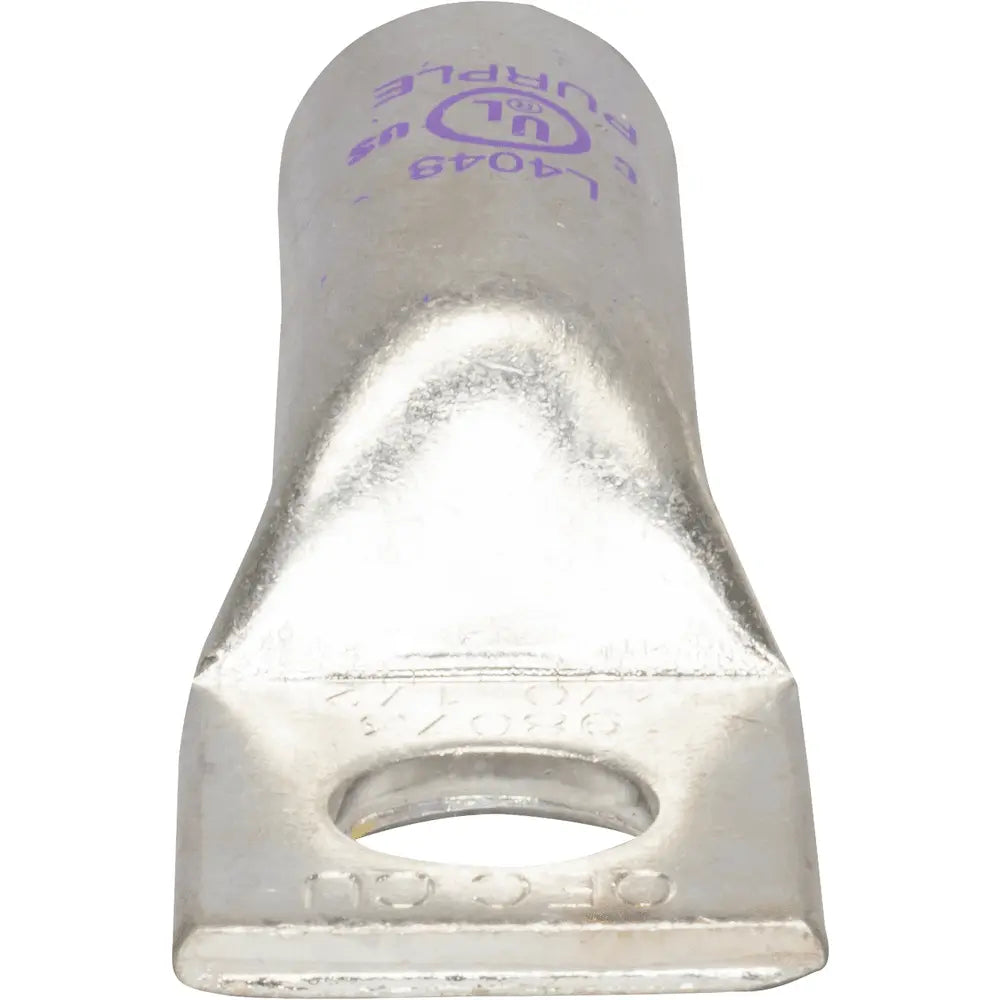

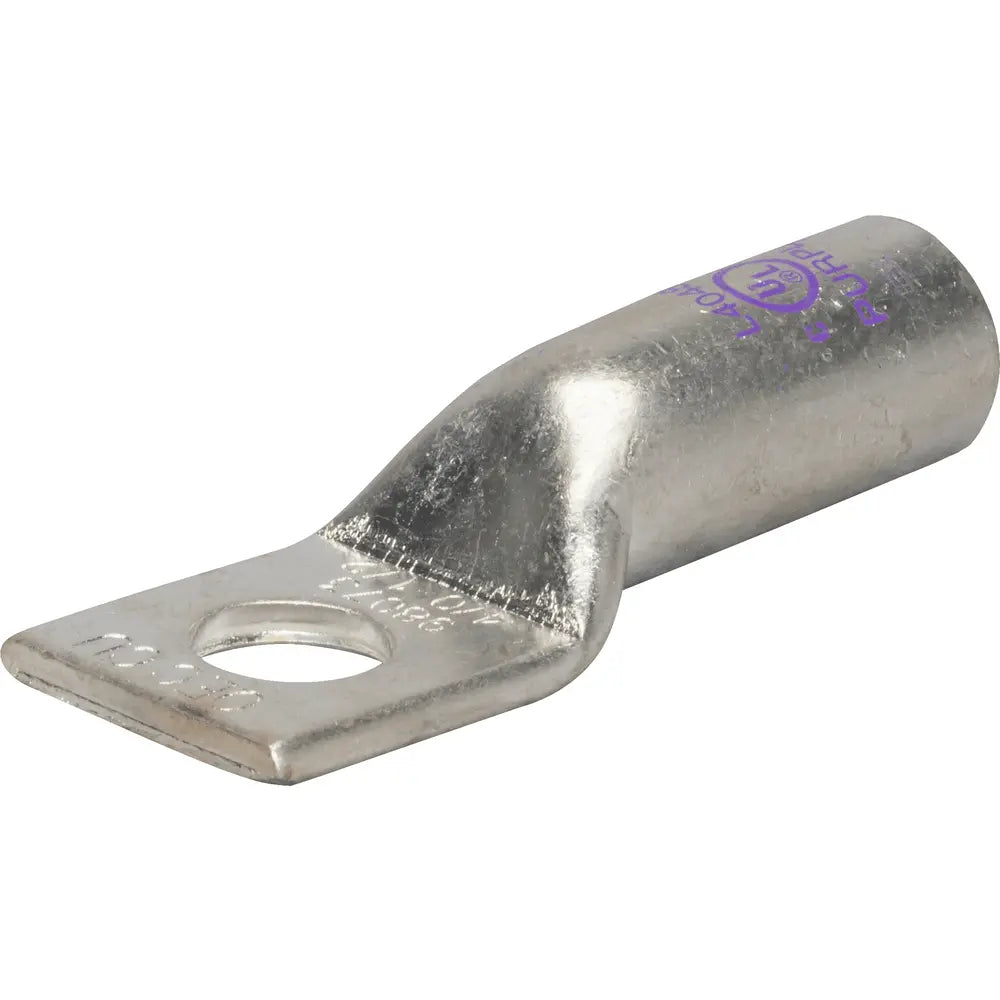

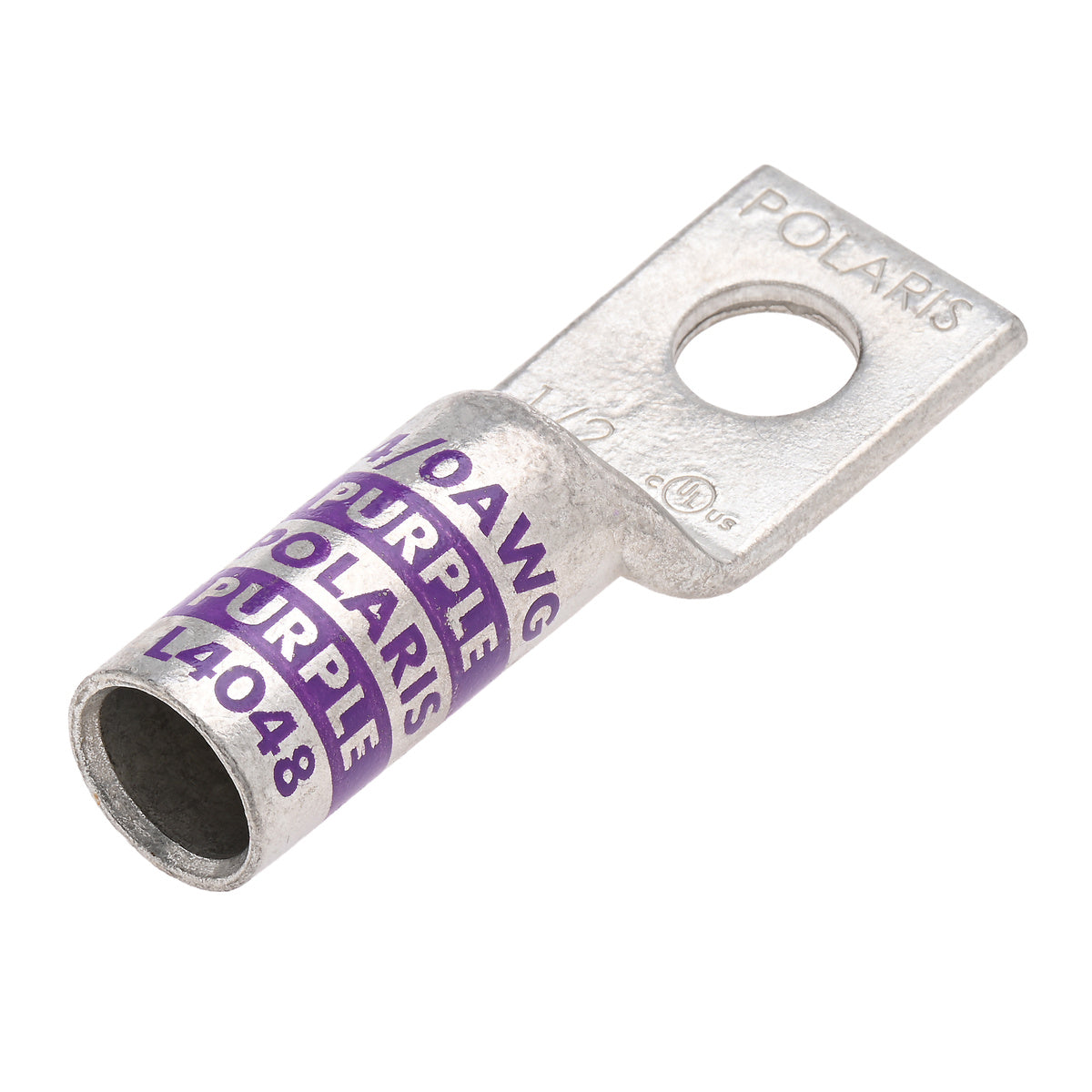

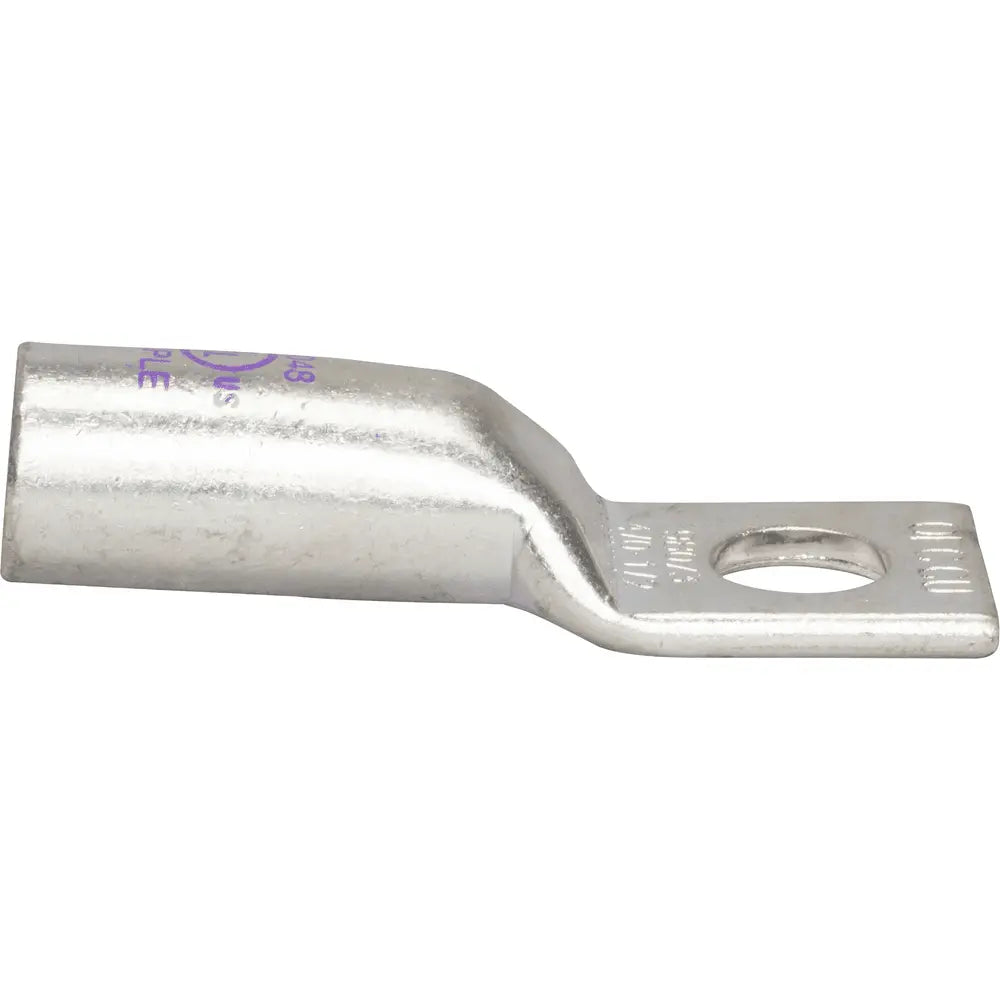

The NSI L4048 compression connectors terminate high-current wires safely, with a max voltage rating of 35kV when properly installed. Constructed from high conductivity copper tubing with a tin-plated finish to provide corrosion resistance and low contact resistance. Marked with die index and color coded for easy identification.
- Produced from high conductivity copper tubing
- Tin-plated to provide corrosion low contact resistance
- Marked with die index and color coded
- Listed for 35KV max when properly installed and to cable manufacturer instructions
Product Highlights
NSI L4048 copper compression lug is UL/cULus listed and rated for B/C class wire. It is flex rated for use with K, H, G, I, M and DLO cable.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: L4048
-
Country of Origin: IN
Technical Specifications
-
Type: Compression Lugs
-
Width: 1.00 Inches
-
Length: 2.79 Inches
-
Diameter: 0.689 Inches
-
Material: Copper
-
Mounting: Bolt-On
-
Standard: cULus, UL Listed
-
Cable Size: 4/0
-
Color Code: Purple
-
Connection: Compression
-
Insulation: Non-Insulated
-
Voltage Rating: 600 VAC
-
Number Of Holes: 1
-
Environmental Conditions: Dry Location
-
Finish: Tin Plated
-
UPC: 662381034120
-
Ul Standard: UL 486A-486B
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Stranded
-
Tang Thickness: 0.13
-
Tang Length: 1.06
-
Wire Range: 4/0 AWG
-
Expanded Wire Range: 4/0 AWG ">– 1 AWG
-
Mounting Bolt Size: 1/2
-
Mounting Hole Size: 1/2 in
-
Barrel Length: 1
-
Series: L Series
-
Temperature Rating: 90 deg C
-
Tongue Size: 1.063 in L x 1 in W x 0.134 in THK
-
Barrel Size: 0.547 in ID x 0.689 in OD x 1.417 in L
-
Barrel Type: Long
-
Stud Size: 1/2 in
-
Application: Terminate, Splice and Tap Power Connector Applications
-
Standard & Approvals: UL 486, KM Approved, cULus Listed
