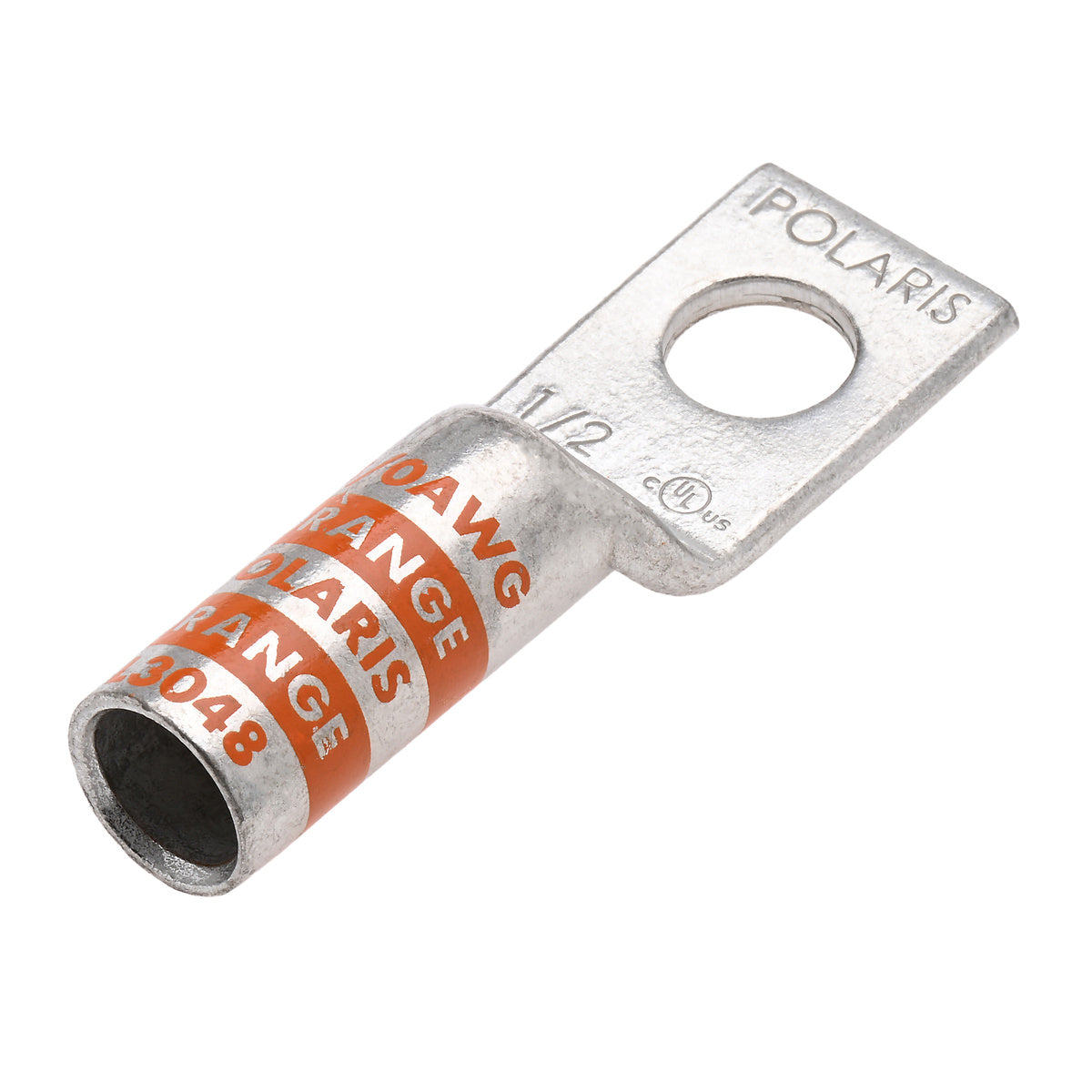

Nsi L3048 Polaris CMP Lug Cu Long 3/0 AWG 1/2 Bolt Size

Product Description

The NSI L3048 Polaris compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. The lug features high conductivity copper tubing and a corrosion-resistant tin-plated finish. Marked with die index and color coded. Flex rated for use with K, H, G, I, M and DLO cable.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable
• UL/cULus listed and rated for B/C class wire
• UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Highlights

The NSI L3048 lug is UL listed to 35kV and rated for B/C class wire. It is suitable for a wide range of applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L3048
• Country of Origin: India

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• GTIN: 662381034113
• UPC: 662381034113
• EAN: 0662381034113
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.13
• Tang Length: 1.06
• Wire Range: 3/0 AWG
• Expanded Wire Range: 3/0 AWG – 2 AWG
• Die Color Code: Orange
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 1
• Stud Size: 1/2 in
• Conductor Size: 3/0 AWG
• Barrel Type: Long
• Temperature Rating: 90 deg C
• Mounting Hole Size: 1/2 in
• Overall Length: 2.79 in
• Type: 1-Hole
• Series: L Series
• Length: 2.795 in
• Width: 0.902 in
• Height: 0.622 in
• Number of Pad Holes: 1
• Die Index: 9/14/50
• Applications: Terminate, Splice, Tap Power Connectors
• Cable Size: 3/0 AWG
• Max Temperature: 194 degrees F
• Mounting Type: 1/2 Mounting Hole
• Number of Holes: 1 Hole
• Standard: UL486
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Copper Compression
• 12-Digit UPC: 662381034113
• Environmental Conditions: 90 degrees C
• MDM Pkg GTiN: 00662381034113
• Product UPC: 66238103411
• Volts AC: 600
