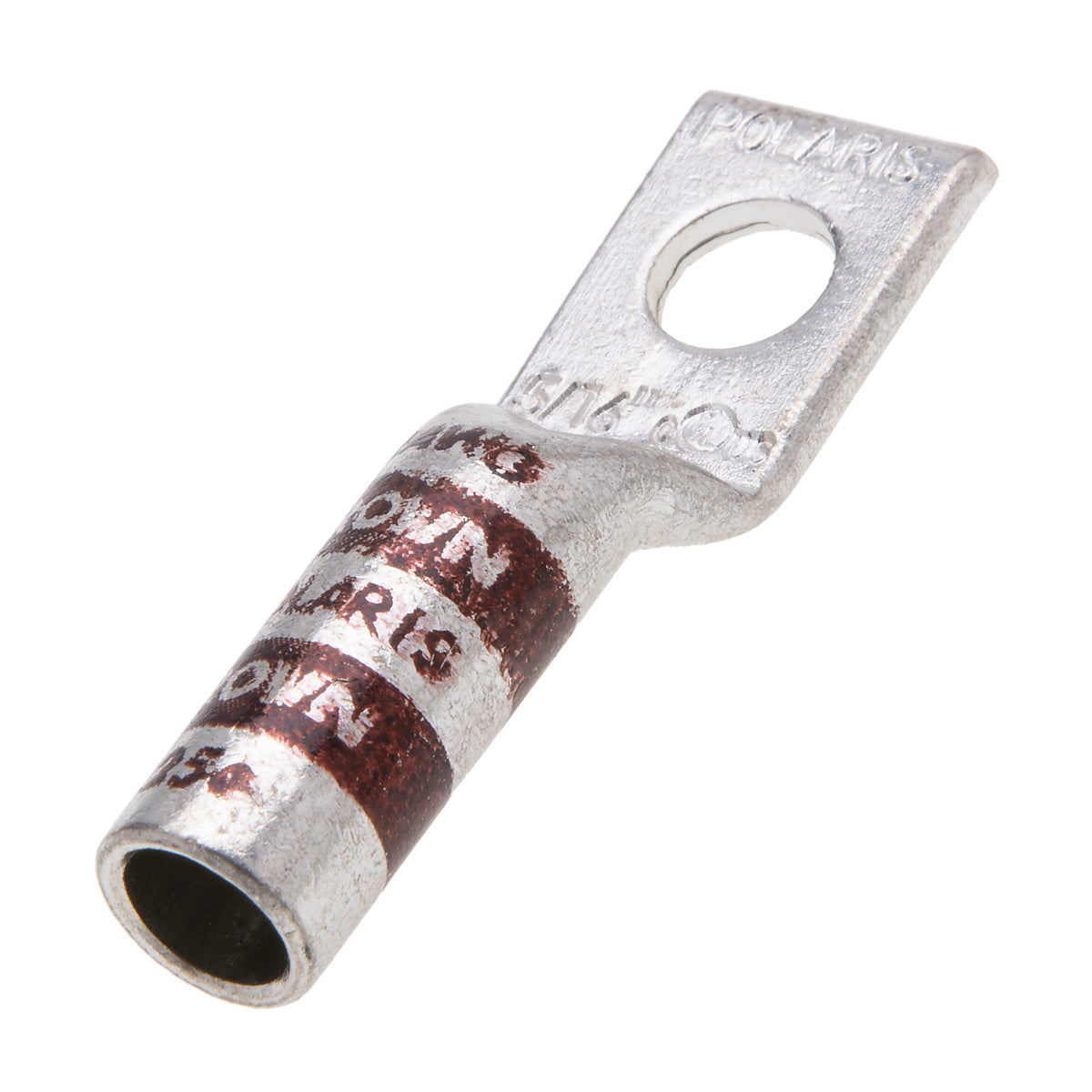

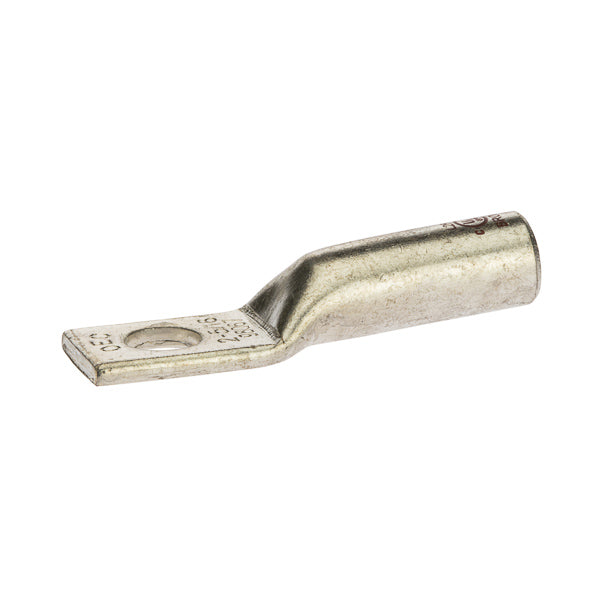

Nsi L256 Polaris CMP Lug Cu Long 2 AWG 5/16 Bolt Size

Product Description

The NSI L256 POLARIS compression design creates a permanent, vibration-resistant connection with low contact resistance. Suitable for power distribution, grounding, and data transmission. It features high conductivity copper tubing and a corrosion-resistant tin-plated finish. Marked with die index and color coded.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

The NSI L256 is UL/cULus listed and rated for B/C class wire. UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L256

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.1
• Tang Length: 0.81
• Wire Range: 2 AWG
• Conductor Size: 2 AWG
• Die Color Code: Brown
• Mounting Bolt Size: 5/16 in
• Mounting Hole Size: 5/16 in
• Barrel Length: 1
• Stud Size: 5/16 in
• Barrel Type: Long
• Temperature Rating: 90 deg C
• Overall Length: 2.07 in
• Type: 1-Hole
• Series: L Series
